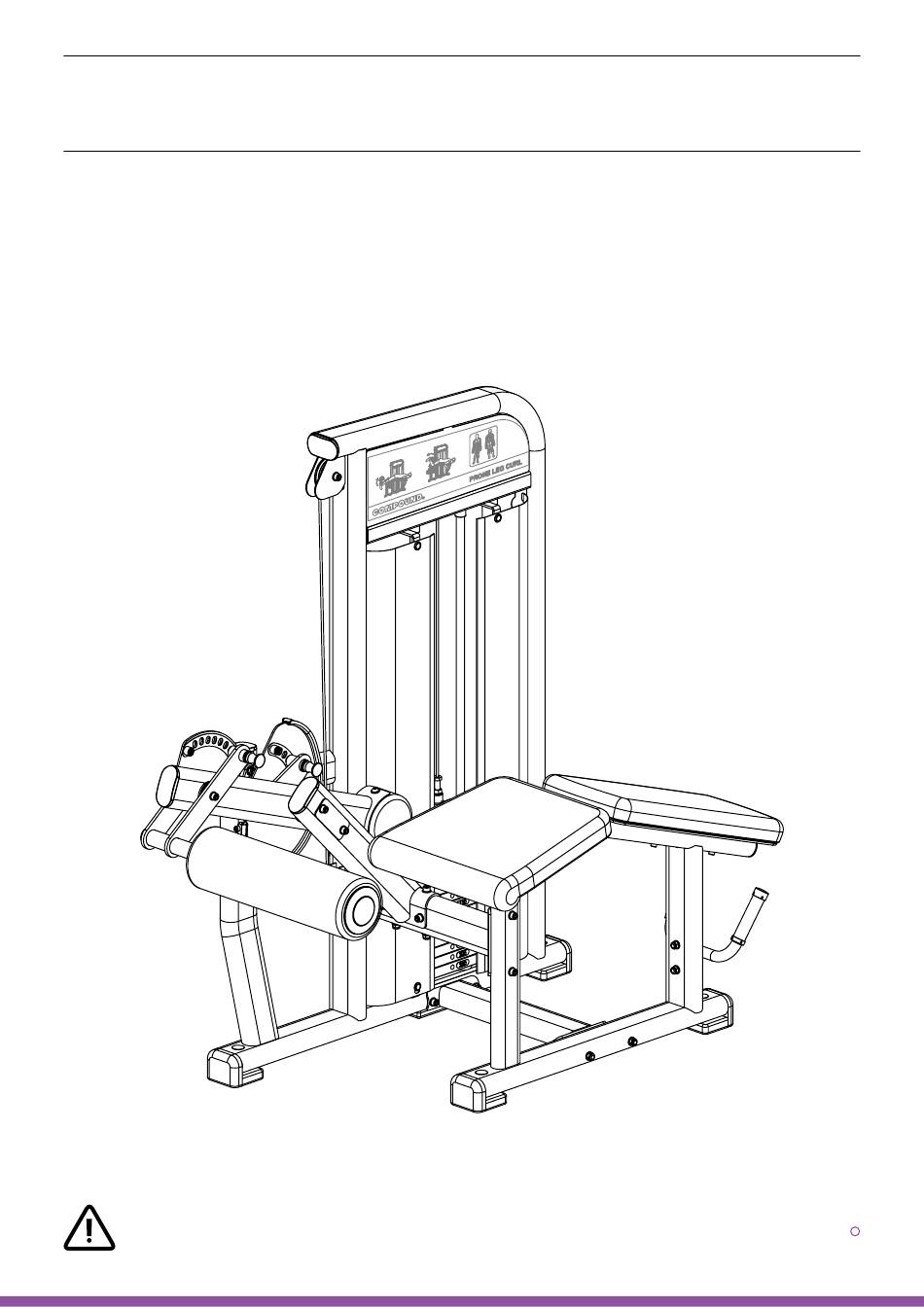

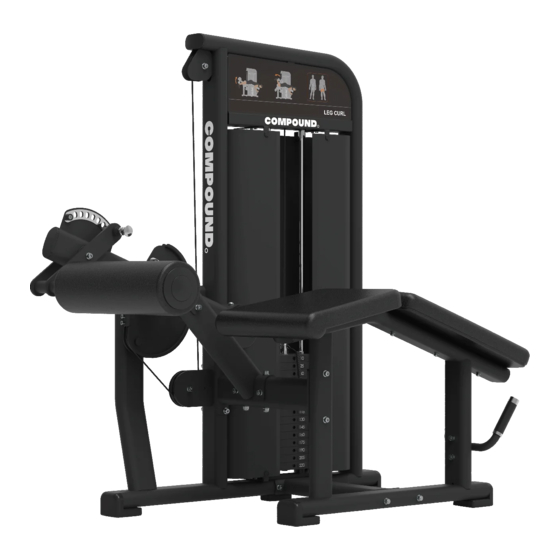

- Page 1 P L A T I N U M S E R I E S PRONE LEG CURL S K U : C P L - P L C - 6 0 1 8 COMPOUND. CAUTION: Read all precautions and instructions before using this equipment. Save this manual for future reference.
- Page 2 CONTENTS General warnings and maintenance advice Assembly Instructions Explained as a series of steps,with each step containing: ● Pictures,descriptions and quantities of the parts required ● Notes ● Diagram showing how the parts fit together t s i...
-
Page 3: Before Your Begin
Assembly Instructions Before Your Begin This exercise equipment is built for optimum safety. Be sure to read the entire manual before you assemble or operate your equipment. Please note the following safety precautions: 1. Keep children and pets away from the equipment at all times. Do not leave children unattended in the same room with the equipment. - Page 4 INFORMATION STEP 1 ● We recommend you have someone assist you in lifting and assembling your gym. ● Follow these steps carefully and it will make it easier to assemble your gym. SC10-12 SC10-24 SC10-24 SC10-24...
- Page 5 INFORMATION STEP 2 ● We recommend you have someone assist you in lifting and assembling your gym. ● Follow these steps carefully and it will make it easier to assemble your SC10-9 gym. A10-9 SC10-9 H6-4...
- Page 6 INFORMATION STEP 3 ● We recommend you have someone assist you in lifting and assembling your gym. ● Follow these steps carefully and it will make it easier to assemble your gym. S8-6 SC10-24 SC10-14...
- Page 7 INFORMATION STEP 4 ● We recommend you have someone assist you in lifting and assembling your gym. ● Follow these steps carefully and it will make it easier to assemble your gym. A10-4 SC10-16 SC10-16...
- Page 8 INFORMATION STEP 5 ● We recommend you have someone assist you in lifting and assembling your gym. ● Follow these steps carefully and it will make it easier to assemble your gym. SC8-3...
- Page 9 INFORMATION STEP 6 ● We recommend you have someone assist you in lifting and assembling your gym. ● Follow these steps carefully and it will make it easier to assemble your gym. C5-4 C5-4 H6-4...
- Page 10 INFORMATION STEP 7 ● We recommend you have someone assist you in lifting and assembling your gym. ● Follow these steps carefully and it will make it easier to assemble your gym. SC10-4...
- Page 11 STEP 8 SC10-14 SC8-16 SC8-6 SC8-5 S6-2...
- Page 12 PREASSEMBLED STEP SC8-4 SW8,W8 H6-4 SC10-4 SC8-3 A10-4 S5-1 SC8-3...
-
Page 13: Parts List
PARTS LIST PART# DESCRIPTION PART# DESCRIPTION Weight frame Plastic Limit post Front Connecting tube assy Shaft L=68mm Seat holding frame Weight plate bushing Seat holding frame Weight selector Bottom Connecting tube assy C retainer ring 114 Pulley Rubber ring 89 Pulley Retainer ring D32 Buffer Ring Aluminium bushing...
