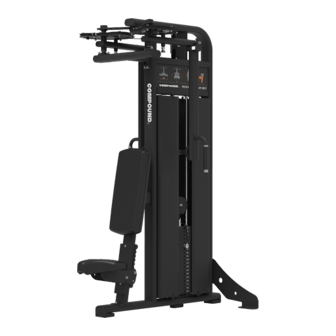

COMPOUND PLATINUM Series Assembly Instructions Manual
Pec fly / rear delt machine
Hide thumbs
Also See for PLATINUM Series:
- Assembly instructions manual (22 pages) ,
- Assembly instructions (4 pages) ,
- Assembly instructions manual (12 pages)
Advertisement
Quick Links
ASSEMBLY INSTRUCTIONS
PEC FLY / REAR DELT MACHINE
CAUTION: Read all precautions and instructions before
CAUTION: Read all precautions and instructions before using
using this equipment. Save this manual for future reference.
this equipment. Save this manual for future reference.
P L A T I N U M S E R I E S
S K U : C P L - P F R - 1 0 8 1
DM-1081
COMPOUND.
F I T N E S S
E Q U I P M E N T
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for COMPOUND PLATINUM Series
Summary of Contents for COMPOUND PLATINUM Series
- Page 1 PEC FLY / REAR DELT MACHINE DM-1081 S K U : C P L - P F R - 1 0 8 1 COMPOUND. CAUTION: Read all precautions and instructions before CAUTION: Read all precautions and instructions before using using this equipment. Save this manual for future reference.
- Page 2 CONTENTS General warnings and maintenance advice Assembly Instructions Explained as a series of steps,with each step containing: Pictures,descriptions and quantities of the parts required Notes Diagram showing how the parts fit together t s i...
-
Page 3: Before Your Begin
Assembly Instructions Before Your Begin This exercise equipment is built for optimum safety. Be sure to read the entire manual before you assemble or operate your equipment. Please note the following safety precautions: 1. Keep children and pets away from the equipment at all times. Do not leave children unattended in the same room with the equipment. - Page 4 INFORMATION STEP 1 We recommend you have someone assist you in lifting and assembling your gym. Follow these steps carefully and it will make it easier to assemble your gym. SW10 SC10-6 SC10-16 SC8-6 SW10 SC10-16...
- Page 5 INFORMATION STEP 2 We recommend you have someone assist you in lifting and assembling your gym. Follow these steps carefully and it will make it easier to assemble your gym. NOTE:In this step,all the washers and nuts which are not marked are W10 and N10. SC8-3 BW10 SC5-5...
- Page 6 INFORMATION STEP 3 We recommend you have someone assist you in lifting and assembling your gym. Follow these steps carefully and it will make it easier to assemble your gym. S8-6 H6-4...
- Page 7 INFORMATION STEP 4 We recommend you have someone assist you in lifting and assembling your gym. Follow these steps carefully and it will make it easier to assemble your NOTE:In this step,all the washers and nuts gym. which are not marked are W10 and N10. SC10-10 A10-7 A10-7...
- Page 8 INFORMATION STEP 5 We recommend you have someone assist you in lifting and assembling your gym. Follow these steps carefully and it will make it easier to assemble your gym. First install #16 on #7.then install the rest. SW10 SC10-5 SC8-6 SC10-5 SW10...
- Page 9 INFORMATION STEP 6 We recommend you have someone assist you in lifting and assembling your gym. Follow these steps carefully and it will make it easier to assemble your gym. SC8-6 SC10-25...
- Page 10 INFORMATION When situation A occurs, please adjust 1, 2 and 3. When situation B occurs, please adjust 2 .
- Page 11 INFORMATION STEP 7 We recommend you have someone assist you in lifting and assembling your gym. Follow these steps carefully and it will make it easier to assemble your gym. C5-4 C5-4...
- Page 12 PREASSEMBLED STEP...
-
Page 13: Parts List
PARTS LIST PART# DESCRIPTION PART# DESCRIPTION Weight Stack Frame D25 Cap Arm Support Frame Limit Interval Bushing Top Arm Support Frame PT50X100 Cap Left Handle PT40X80 Cap Swing Tube Limiting Pad Right Handle Limit Pillars Back Pad Support Limit Bushing Seat Pad Support Rubber Pad Camshaft Assembly...
