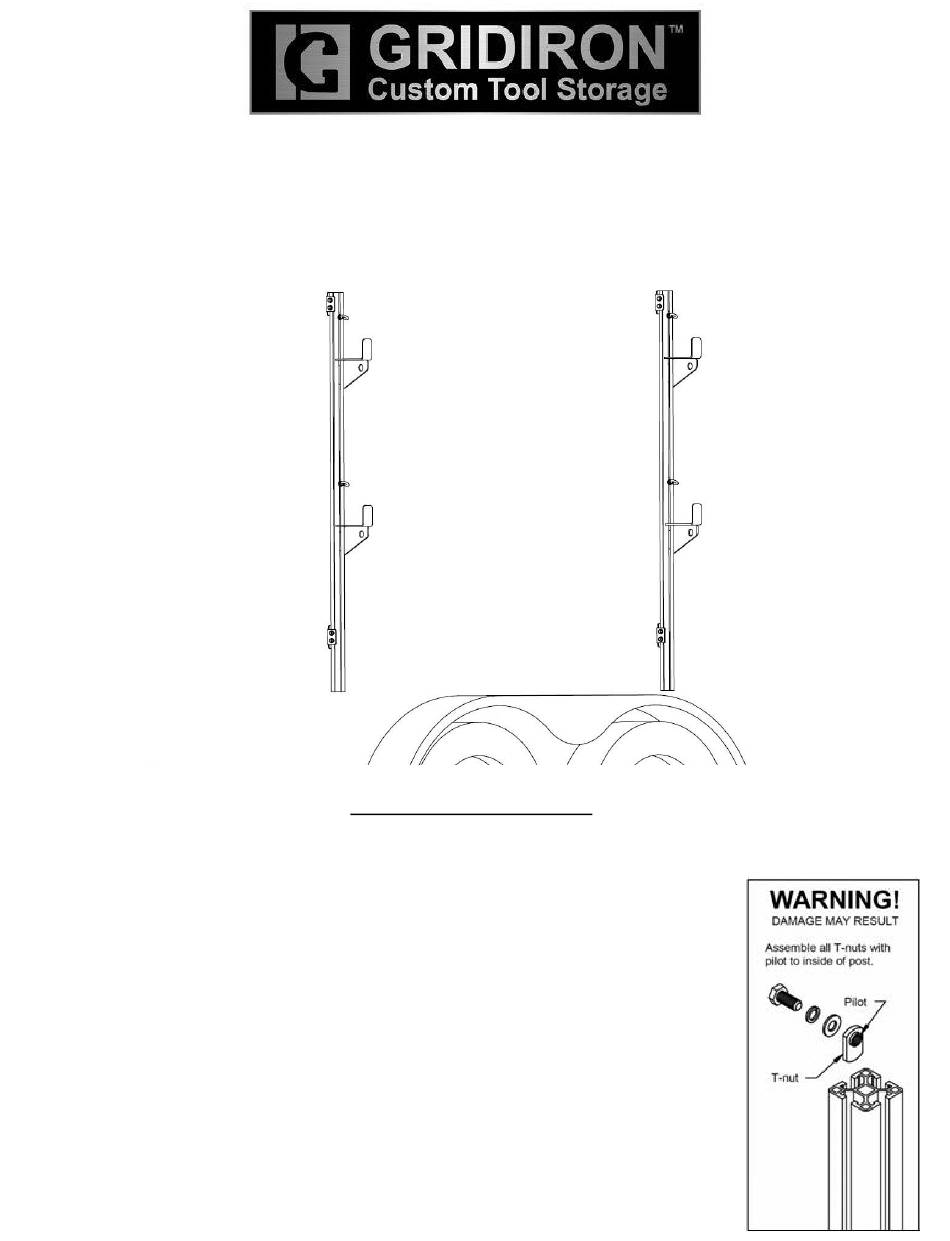

GRIDIRON WM-01 Assembly And Installation

Thank you for purchasing this GRIDIRON product
1. Plan the layout of your Ladder Rack Kit so that the Mount Brackets and Ladder Hooks
will be fastened to opposite sides of each post. (In a normal installation, the mounts are
on the left side of the post and the hooks on the right side, but
variations are possible.) To achieve a more finished look, the post can
be mounted to the inside slotted face of the bracket to hide the TEK
screw fasteners.
2. With TEK screws penetrating into a vertical support (wall stud), fasten
two Slotted Mount Brackets to the side of the trailer where each post
is to be mounted.
3. In each bracket, assemble the bolts through the slots into the double
T-Nut loosely. Slide the posts over the T-Nuts into position and
tighten.
4. Assemble the bolts and T-nuts loosely on the ladder hooks and the
eyebolts. Slide the parts into position and tighten.
WM-01
Wall Mount Ladder Rack Kit
Assembly and Installation
