GRIDIRON CS-01 Instruction Manual

CS-01 Chain Saw Holder
1 Note: To mount the Chain Saw Holder to Gridiron posts, any
vertical wall, round trailer rail, or vertical framework, use the
CB-01 Chain Saw Holder Bracket.
2 The GRIDIRON Chain Saw Holder can be mounted to any
suitable horizontal surface or frame such as a trailer rail, pick-
up bed, or shelf.

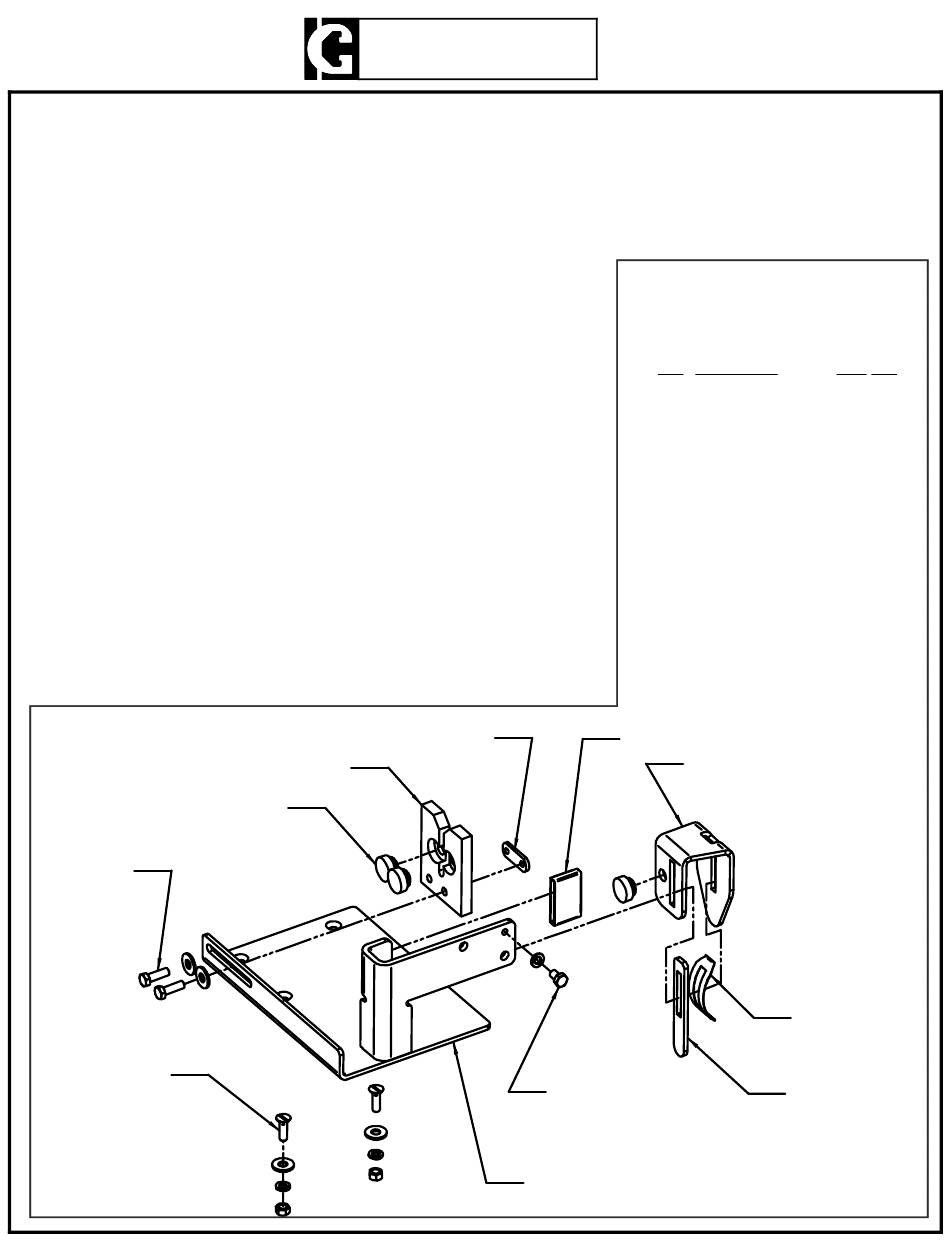

3 Fasteners are assembled at the factory but can loosen during
shipping. Assemble any loose bolts, washers, and T-nuts only
as shown (NOTE- INCORRECT ASSEMBLY WILL RESULT
IN DAMAGE.)
4 Mount the Chain Saw holder using two 5/16-18 x 1 Flat Head
Bolts.
5 Loosen the Bar Protector and place your saw in the holder as
shown. The Bar Protector may be reversed or mounted on
the outside of the frame to accomodate most chain saws.
Once the saw is sitting square and flat on the frame, tighten
the Bar Protector in place.
Bumper
3 Places
5/16-18 x 1
Bolt
Flat Head
Bolt 1"
GRIDIRON GRIDIRON
GRIDIRON GRIDIRON
Custom Tool Storage
Instruction Manual
Thank you for purchasing this Gridiron product

Installation

Bar Protector
TM
TM
Double
T-Nut
5/16-18 x 1/2
Bolt
Base Assy., Saw Holder
Package Contents

Part List

Qty Description
1 Base Assy.
1 Slide,Saw Holder 102311
1 Lock Lever
1 Spring, Flat
1 Bar Protector
3 Bumper
1 PVC Cover
1 Double T-nut
2 5/16-18 x 1" Bolt
2 5/16-18 x 1" FH Bolt
2 5/16-18 Nut
1 5/16-18 x 1/2" Bolt
4 5/16" Flat Washer
3 5/16" Lock washer
PVC Cover
Slide, Saw Holder
Spring, Flat
Lock Lever
Part No.
102328
102258
102257
102314
102044
102326
102146
