GRIDIRON BP-03 Manual

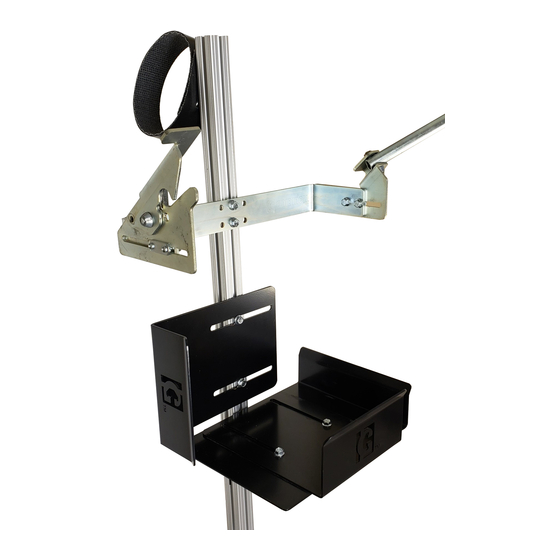

BP-03 Backpack Blower Rack
Thank you for purchasing this GRIDIRON product

Assembly and Installation

1 The fasteners are assembled at the factory but can loosen during shipping.
Assemble any loose bolts and T-nuts only as shown (NOTE- Incorrect assembly will
result in damage)
2 The GRIDIRON Backpack Blower Rack can be mounted to GRIDIRON Posts or to
other suitable framework (some scenarios may require locally acquired hardware)
3 Mount the blower shelf at the desired height and location.
4 Install the adjustable front panel on the shelf with the 4.75" T-nut, placing the T-
nut on the bottom of the shelf for added security. Leave bolts loose for final
adjustment.
5 Install the adjustable side panel on the opposite side of your blower tube with the 4.75"
T-nut. Leave bolts loose for final adjustment.
6 Install the locking bar assembly at the desired height to secure your blower. There are
three sets of mounting holes in the back bar to allow a shift to the left or right. There
are also slots on the end brackets to allow adjustment in or out to find the best fit for
your blower.

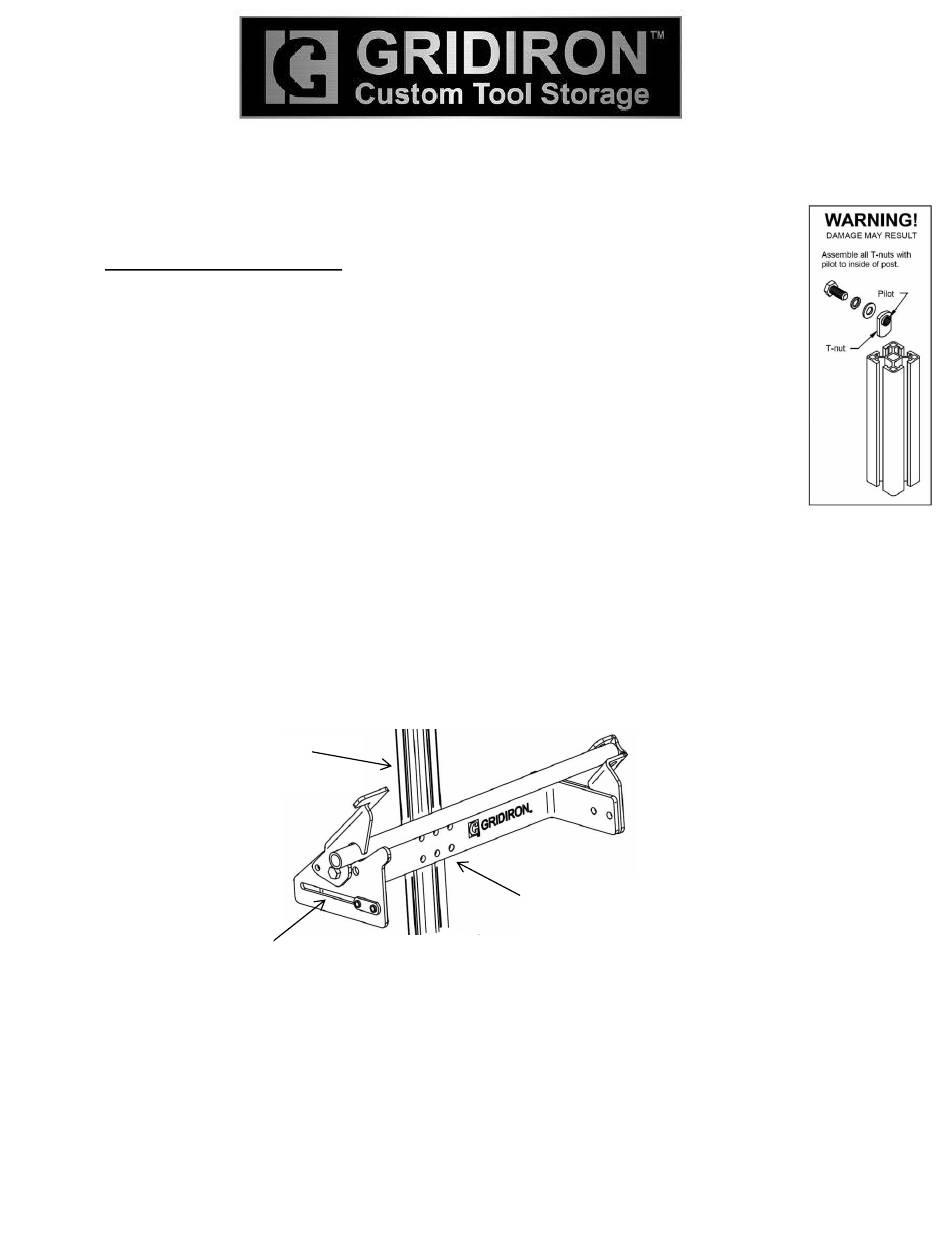

GRIDIRON post
(not included with BP-03 kit )
slot for in/out adjustment
(same on opposite end )
7 Open the lock bar and place your blower on the shelf, adjust the front and side panel to
fit your blower, remove your blower and tighten all bolts.
8 Mount the blower loop in a suitable location to allow secure storage and easy mounting
and dismounting of the blower tube. The loop can be placed above on the same
Gridiron post, to the side on another Gridiron post, on the trailer rail or wall, or any
other suitable location. (Obtain hardware locally for some mounting scenarios)
3 sets of mounting holes for
side to side adjustment
