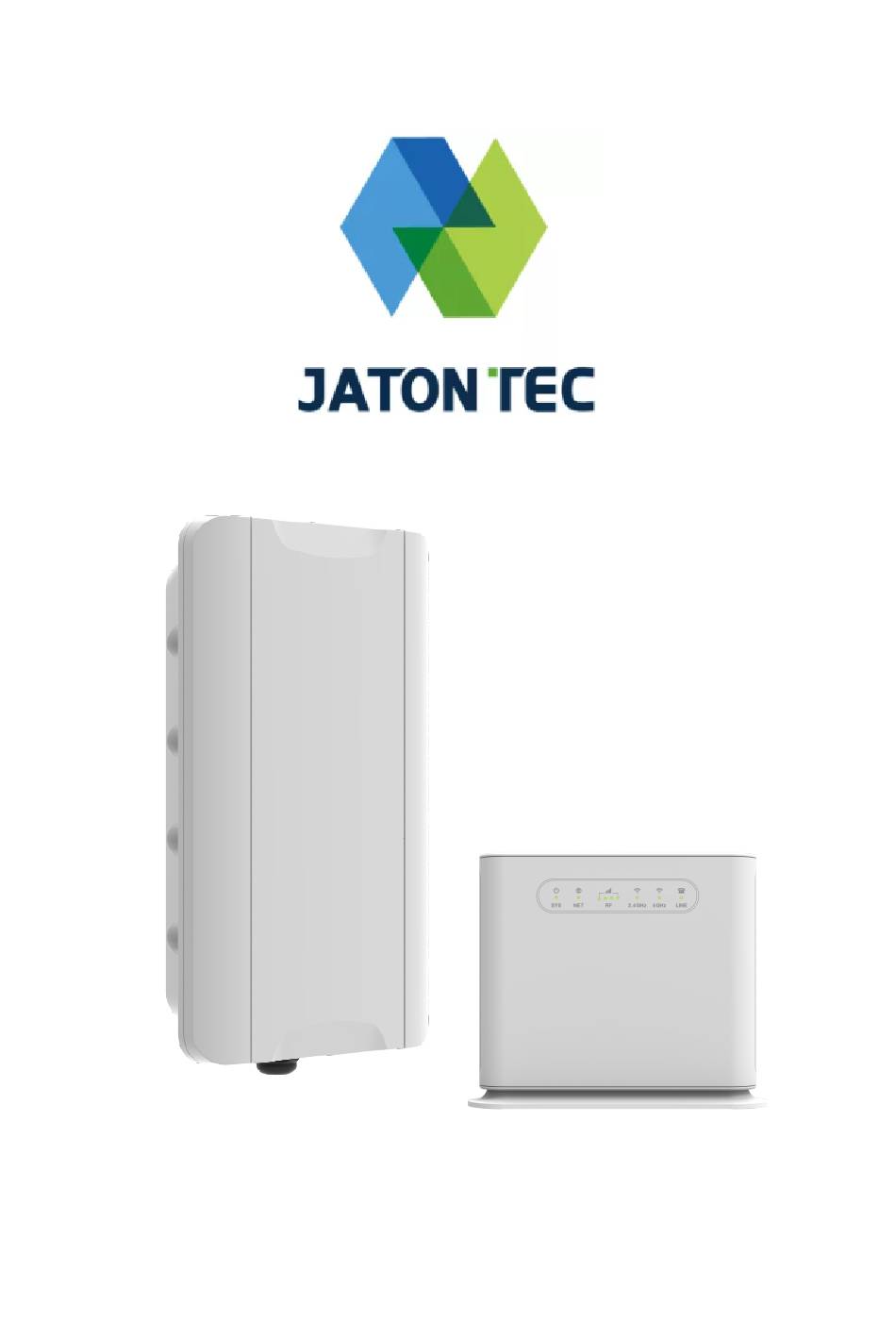

  • Page 1 Quick User Guide JT4500H...
  • Page 2 Device Package  Products Quantity ODU Unit IDU Unit 48V DC Power Adapter Ethernet Cable Clamps 30~82mm 2, 27~51mm 2 Quick User Guide Device External Interface ...

  • Page 3: Environmental Specification

    Reset Button Slot Port Environmental Specification  Feature Specs. Operating temperature ODU: -40 to 55℃, IDU: -15 to 50℃ Storage temperature -45 to 85℃ Operating humidity 0 to 95% No condensation...
  • Page 4 Getting Your Device Ready for Connection  Step 1   Insert the SIM CARD (ODU) Before powering on the device, please insert the SIM card in the direction indicated on the bottom of the device Step 2 Installing Outdoor Unit Use the clamps provided in the packaging to secure the equipment onto the pole.
  • Page 5 Step 3 Grounding Make sure that the installation of the outdoor unit, antenna and cables is performed in accordance with all relevant national and local building and safety codes. Even where grounding is not mandatory according to applicable regulation and national codes, it is highly recommended to ensure that the outdoor unit and the antenna mast are grounded and suitable lightning protection devices are used so as to provide protection against voltage surges and static charges.

  • Page 6: Led Display

    LED Display  (ODU) Function Description Power indicator Light is on – Device is power on. Blinking Blue – Device is booting. System run indicator Solid Blue– Device is in normal operation. OFF – NO wireless network access. WAN port status Blinking Blue –...
  • Page 7 (IDU) Function Descriptions Solid Orange - Device powering up and booting. Solid Green - Normal operation. System Indicator Blinking Orange - SIM card absent or malfunction detected. OFF - Not yet connected to mobile network. Mobile Network Solid Green - Connected to 4G network. Indicator RF1 Blinking Green - Device searching for mobile network entry.

  • Page 8: Web Login

    WEB login  It is a preferred to setup the CPE using a Web browser from a local PC connected to device LAN port. The operator should ensure that the connected PC has acquired IP address via DHCP from the device. After IP connectivity is established between the PC and CPE device, the operator may launch a Web browser and specify http://192.168.0.1 in the address bar.

  • Page 9: Lan Setting

    LAN Setting  The LAN setting allows user to specify the device LAN IP, DHCP server setting, Local DNS etc. When Router mode is selected, the DHCP server should be enabled by default. User is advised to leave the default setting unchanged for quick configuration and smooth device operation.

  • Page 10: Wps Setting

    WPS Setting  The WPS setting allows user to enable or disable Wi-Fi WPS service. The device is equipped with WPS function. Press the WPS button on the top of the device (IDU), and the Wi-Fi indicator light of the device will be blinking to indicate that the WPS function of the device has been activated.

  • Page 11: Security Setting

    UPnP  This menu allows user to configure the UPnP application for on-demand “DMZ” support. The current forwarding rules created can be viewed and cleared if required.  This menu allows user to configure the DMZ setting for CPE in router mode. Web server, Telnet/SSH and Ping Service port can be exempted from DMZ mapping if required.

  • Page 12: Voip Settings

    VoIP Settings  The menu allows user to configure the VoIP setting. Maintenance  The menu allows user to restart the device or load factory default. Hardware reset  In case of user forgets the login password, the user can press and hold the RESET button in the back of the unit for 5 seconds.

  • Page 13: Faq And Troubleshooting

    FAQ and Troubleshooting  Problem Description Re-plug the PC Ethernet cable and check if PC LAN connection  is up or showing activity. Check if the SYS LED is on. If it is not, check the power cord  My PC cannot and make sure it is connected properly.
