Jatontec JT8800M Quick User Manual

5g nr odu combo cpe
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
5G NR ODU Combo CPE
Quick User Guide
JT8800M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JT8800M and is the answer not in the manual?

Questions and answers

Related Manuals for Jatontec JT8800M

Summary of Contents for Jatontec JT8800M

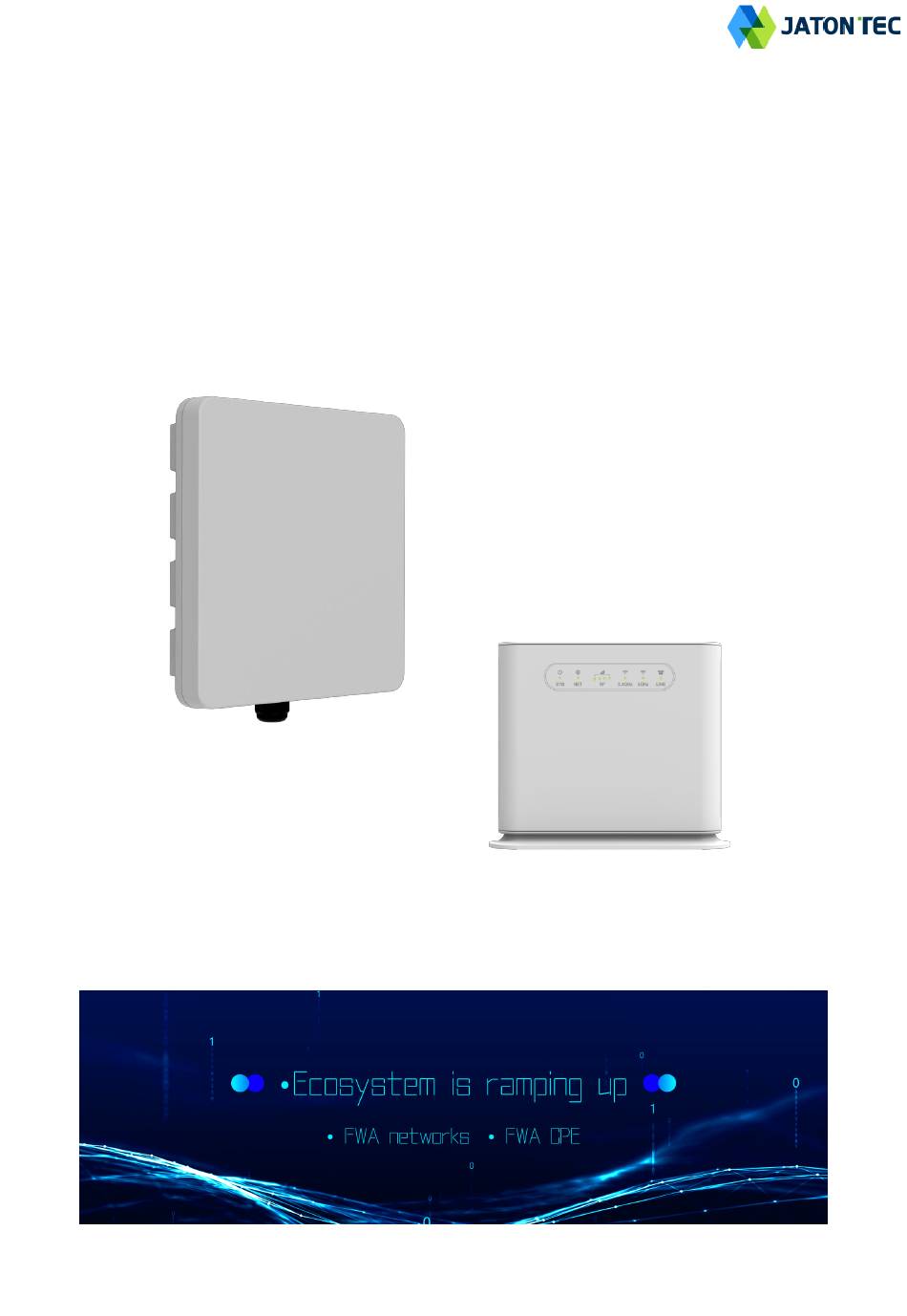

  • Page 1 5G NR ODU Combo CPE Quick User Guide JT8800M...
  • Page 2 Device Package  Products Quantity ODU Unit IDU Unit 48V DC Power Adapter Ethernet Cable Clamps Quick User Guide  Device External Interface...

  • Page 3: Environmental Specification

    Environmental Specification  Feature Specs. Operating temperature ODU: -40 to 55℃, IDU: -15 to 50℃ Storage temperature -45 to 85℃ Operating humidity 0 to 95% No condensation...
  • Page 4 Getting Your Device Ready for Connection   Step 1  Insert the SIM CARD (ODU) Before powering on the device, please insert the SIM card in the direction indicated on the bottom of the device Step 2 Installing Outdoor Unit Use the clamps provided in the packaging to secure the equipment onto the pole.
  • Page 5 Use the mounting brackets provided in the packaging to secure the equipment onto the pole. Header Connection Step 3 Grounding Make sure that the installation of the outdoor unit, antenna and cables is performed in accordance with all relevant national and local building and safety codes. Even where grounding is not mandatory according to applicable regulation and national codes, it is highly recommended to ensure that the outdoor unit and the antenna mast are grounded and suitable lightning protection devices are used so as to...
  • Page 6 The Grounding screw is located on the lower part at the back of the unit (see Figure below). Use 10 AWG cable for grounding. Connect one of a grounding-wire to the grounding screw and firmly tighten the grounding screw. Connect the opposite end of the grounding cable to a good ground(earth) connection.

  • Page 7: Led Display

     LED Display (ODU) Function Descriptions System Indicator Light is on - Device is power on. OFF - NO wireless network access. WAN Port Status Light is on - WAN data transmission in progress. Light is on - SIM card state is ready. SIM Card Indicator Blinking - SIM card is error.
  • Page 8 (IDU) Function Descriptions Solid Orange - Device powering up and booting. Solid Green - Normal operation. System Indicator Blinking Orange - SIM card absent or malfunction detected. OFF - Not yet connected to mobile network. Mobile Network Solid Green - Connected to 3G/4G network. Indicator Solid Blue - Connected to 5G network.

  • Page 9: Web Login

    WEB login  It is a preferred to setup the CPE using a Web browser from a local PC connected to device LAN port. The operator should ensure that the connected PC has acquired IP address via DHCP from the device. After IP connectivity is established between the PC and CPE device, the operator may launch a Web browser and specify http://192.168.10.1 in the address bar.

  • Page 10: Lan Setting

    LAN Setting  The LAN setting allows user to specify the device LAN IP, DHCP server setting, Local DNS etc. When Router mode is selected, the DHCP server should be enabled by default. User is advised to leave the default setting unchanged for quick configuration and smooth device operation.

  • Page 11: Wps Setting

    WPS Setting  The WPS setting allows user to enable or disable Wi-Fi WPS service. The device is equipped with WPS function. Press the WPS button on the top of the device (IDU), and the Wi-Fi indicator light of the device will be blinking to indicate that the WPS function of the device has been activated.
  • Page 12 UPnP  This menu allows user to configure the UPnP application for on-demand “DMZ” support. The current forwarding rules created can be viewed and cleared if required.  This menu allows user to configure the DMZ setting for CPE in router mode. Web server, Telnet/SSH and Ping Service port can be exempted from DMZ mapping if required.

  • Page 13: Security Setting

    Security Setting  The menu allows user to configure the security & ALG setting.  VoIP Settings The menu allows user to configure the VoIP setting. Maintenance  The menu allows user to restart the device or load factory default.

  • Page 14: Hardware Reset

    Hardware reset  In case of user forgets the login password, the user can press and hold the RESET button in the back of the unit（IDU） for 5 seconds. The unit will reset to factory default setting and reboot. Please wait until the unit finishes rebooting to regain access the device WEB GUI using default login credentials.
