Support and E-Warranty Certificate https://www.vevor.com/support

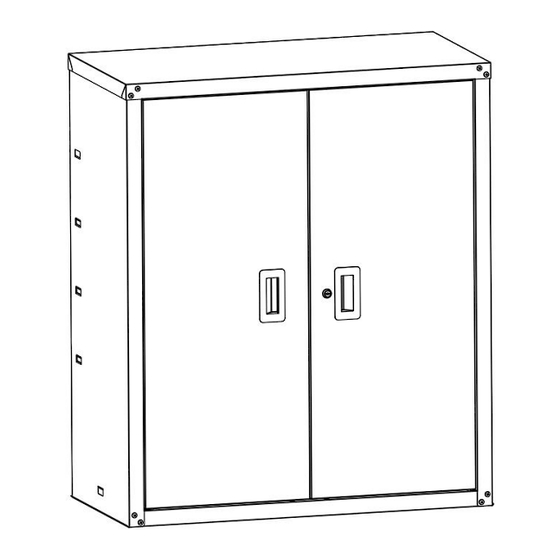

INSTRUCTIONS FOR TOOL CABINET
ASSEMBLY
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Related Manuals for VEVOR GSC4200
Summary of Contents for VEVOR GSC4200
- Page 1 Support and E-Warranty Certificate https://www.vevor.com/support INSTRUCTIONS FOR TOOL CABINET ASSEMBLY We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Assembly Parts List
Please read instructions carefully before assembly. Warning-To reduce the risk of injury, user must read instructions manual carefully. Assembly Parts List Part Description Screw-ST4.2*10 Bolt-M6*16 Shelf clip Door stop Left back Right back Left side panel - 2 -... -
Page 4: Part Description
Part Description Right side panel Top cover Bottom Shelf Left door Right door ADDITIONAL TOOLS REQUIRED: 1.Phillips Head Screwdriver. 2. Rubber Mallet (or hammer with soft covering). SAFETY TIPS: 1. Please handle metal edges carefully. 2. Prepare a soft, level surface on ground level before commencing assembly. 3. -
Page 5: Maintenance
To clean and maintain your unit we recommend periodic cleaning using a soft cloth and gentle natural cleaner. Table of Parameters Items Description Name Tool Cabinet Model GSC4200 910×456×1067 mm External Dimensions 36×18×42 inch Package Size 1160×545×235 mm G.W. 33 kg... - Page 6 screw-ST4.2*10, as shown. Before assembling the side panels, remove the two U-shaped protection slots at the bottom of the side panels! STEP 3 Insert the back and side panels into the limit slots on the top cover,then use bolt-M6*16(2) to fix the top cover and side panels together. - 5 -...
- Page 7 STEP 4 Insert the bottom into the side panel and back, Join bottom(10) front and side panel together with four bolts-M6*16 (2). - 6 -...
- Page 8 STEP 5 Flip the body over 90°，Install the four bolts-M6*16(2) on the back ,as shown. - 7 -...
- Page 9 Shelf Assembly Stand the body upright with the bottom on the ground，As shown in the figure, first insert the rear ends of the shelf (11) into the side panel hanging buckle at the appropriate height, and then install the shelf clip（3)at the corresponding position. Door Stop Assembly As shown, press door stop(5) into the holes of the top cover and the bottom .
- Page 10 Door Assembly Insert the pin at the bottom of the left door (12) into the bottom hole first,Then insert the spring latch at the top of the left door into the top cover hole，Install the right door (13) on the body in the same way. - 9 -...
- Page 11 Congratulations, your cabinet assembly is now complete! Remember maximum safe load limit per shelf is 200 lb evenly distributed. Always load bottom shelf before top shelf to help prevent any toppling issue. Manufacturer：Zhongshan City CYZ Coating Tech.Co.,Ltd. Address：Plant1,No.78,Zhongheng Avenue,Baoyu Village, Henglan Town, Zhongshan City,Guangdong Province,China MADE IN CHINA - 10 -...
- Page 12 Support and E-Warranty Certificate https://www.vevor.com/support...
