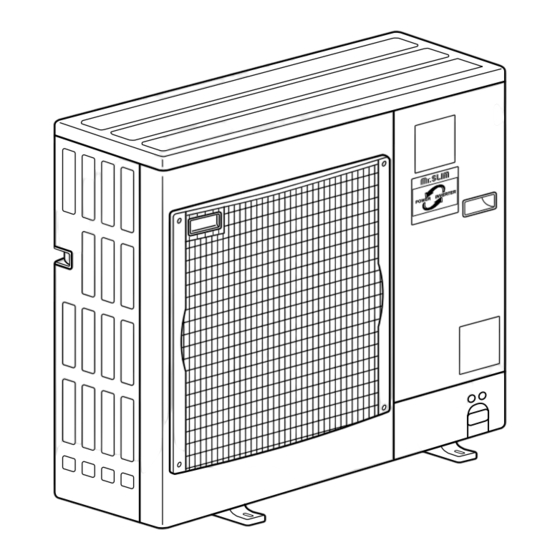

SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
SERVICE MANUAL
R410A
Outdoor unit
[model names]
PUHZ-RP35VHA2
PUHZ-RP50VHA2
PUHZ-RP60VHA2
PUHZ-RP71VHA2
PUHZ-RP100VHA2
PUHZ-RP125VHA2
PUHZ-RP140VHA2
PUHZ-RP100YHA2
PUHZ-RP125YHA2
PUHZ-RP140YHA2
[Service Ref.]
Service Ref. is on page 2.
PUHZ-RP60VHA2
PUHZ-RP71VHA2
PUHZ-RP60VHA3
PUHZ-RP60VHA3#1 PUHZ-RP71VHA3#1
PUHZ-RP35VHA3
PUHZ-RP50VHA3
PUHZ-RP60VHA3
PUHZ-RP71VHA3
PUHZ-RP100VHA3
PUHZ-RP100YHA3
PUHZ-RP60VHA2
1
PUHZ-RP71VHA2
1
PUHZ-RP71VHA3
REVISED EDITION-F
Revision:
• "17. RoHS PARTS LIST" has
been modified.
• Please void OC374 REVISED
EDITION-E.
NOTE:
• This manual describes only
service data of the outdoor
units.
• RoHS compliant products have
<G> mark on the spec name
plate.
• For servicing of RoHS compli-
ant products, refer to the RoHS
PARTS LIST.
CONTENTS
1. TECHNICAL CHANGES ................................. 3
2. REFERENCE MANUAL .................................. 4
3. SAFETY PRECAUTION .................................. 5
4. FEATURES ...................................................... 9
5. SPECIFICATIONS ......................................... 10
6. DATA ............................................................. 13
7. OUTLINES AND DIMENSIONS .................... 20
8. WIRING DIAGRAM ....................................... 25
9. WIRING SPECIFICATIONS .......................... 35
10. REFRIGERANT SYSTEM DIAGRAM ............... 40
11. TROUBLESHOOTING ................................... 43
12. FUNCTION SETTING .................................. 110
13. MONITORING THE OPERATION DATA BY THE REMOTE CONTROLLER ..... 117
14. EASY MAINTENANCE FUNCTION ............ 127
15. DISASSEMBLY PROCEDURE ................... 132
16. PARTS LIST ................................................ 154
17. RoHS PARTS LIST ..................................... 165
May 2009
No.OC374
Advertisement
Related Manuals for Mitsubishi Electric Mr.SLIM PUHZ-RP35VHA2
Summary of Contents for Mitsubishi Electric Mr.SLIM PUHZ-RP35VHA2
- Page 1 SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS May 2009 No.OC374 REVISED EDITION-F SERVICE MANUAL R410A Outdoor unit [model names] Revision: PUHZ-RP35VHA2 PUHZ-RP35VHA3 • "17. RoHS PARTS LIST" has been modified. PUHZ-RP50VHA2 PUHZ-RP50VHA3 PUHZ-RP60VHA2 PUHZ-RP60VHA3 • Please void OC374 REVISED EDITION-E. PUHZ-RP71VHA2 PUHZ-RP71VHA3 NOTE: PUHZ-RP100VHA2 PUHZ-RP100VHA3...
- Page 2 Revision: "17. RoHS PARTS LIST " has been modifi ed on page 171, 177 and 181. Page Revise point Service Ref. Incorrect Correct FUNCTIONAL AND ELECTRICAL PARTS PUHZ-RP60/71VHA3#1 T7W E39 202 T7W E11 201 No.33 THERMISTOR (SHELL) FUNCTIONAL AND PUHZ-RP100VHA3#1 ELECTRICAL PARTS T7W E39 202 T7W E11 201...
- Page 3 PUHZ-RP35/50/60/71VHA2 PUHZ-RP35/50/60/71VHA2 · Electrical parts have been changed. Controller circuit board (C.B.) , Power circuit board (P.B.) , Noise filter circuit board (N.F.) PUHZ-RP100/125/140VHA2 PUHZ-RP100/125/140VHA2 · Compressor (MC) has been changed. · Electrical parts have been changed. Controller circuit board (C.B.) , Power circuit board (P.B.) , Noise filter circuit board (N.F.) , Active filter module (ACTM) PUHZ-RP100/125/140YHA2 PUHZ-RP100/125/140YHA2 ·...
- Page 4 SAFETY PRECAUTION 3-1. ALWAYS OBSERVE FOR SAFETY Before obtaining access to termnal, all supply ciucuits must disconnected. 3-2. CAUTIONS RELATED TO NEW REFRIGERANT Cautions for units utilizing refrigerant R410A Use new refrigerant pipes. Do not use refrigerant other than R410A. In case of using the existing pipes for R22, be careful with If other refrigerant (R22 etc.) is used, chlorine in refrige- the followings.
- Page 5 Unit Gravimeter [3] Service tools Use the below service tools as exclusive tools for R410A refrigerant. Tool name Specifications Gauge manifold ·Only for R410A ·Use the existing fitting specifications . (UNF1/2) ·Use high-tension side pressure of 5.3MPa·G or over. Charge hose ·Only for R410A ·Use pressure performance of 5.09MPa·G or over.
- Page 6 3-3. PRECAUTIONS WHEN REUSING EXISTING R22 REFRIGERANT PIPES (1) Flowchart Measure the existing pipe thickness and check for damage. The existing pipe thickness meets speci- The existing pipe thickness does not meet fications and the pipes are not damaged. specifications or the pipes are damaged. Check if existing air conditioner can operate.
- Page 7 (2) Cautions for refrigerant piping work New refrigerant R410A is adopted for replacement inverter series. Although the refrigerant piping work for R410A is same as for R22, exclusive tools are necessary so as not to mix with different kind of refrigerant. Furthermore as the working pressure of R410A is 1.6 time higher than that of R22, their sizes of flared sections and flare nuts are different.
- Page 8 FEATURES PUHZ-RP35/50VHA2 PUHZ-RP60/71VHA2 PUHZ-RP35/50VHA2 PUHZ-RP60/71VHA2 PUHZ-RP35/50VHA3 PUHZ-RP60/71VHA3 PUHZ-RP60/71VHA3#1 PUHZ-RP100/125/140VHA2 PUHZ-RP100/125/140VHA2 PUHZ-RP125/140VHA2#2 PUHZ-RP100/125/140YHA2 PUHZ-RP100/125/140YHA2 PUHZ-RP125/140YHA2#2 PUHZ-RP100VHA3 PUHZ-RP100VHA3#1 PUHZ-RP100YHA3 PUHZ-RP100YHA3#1 CHARGELESS SYSTEM PRE-CHARGED REFRIGERANT IS SUPPLIED FOR PIPING LENGTH AT SHIPMENT. Max.30m (PUHZ-RP35/50/60/71/100/125/140) The refrigerant circuit with LEV (Linear Expansion Valve) and power receiver always control the optimal refrigerant level regardless of the length (30m max.
- Page 9 SPECIFICATIONS Service Ref. PUHZ-RP35VHA2 / VHA3 PUHZ-RP50VHA2 / VHA3 Mode Cooling Heating Cooling Heating Single, 50Hz, 230V Power supply (phase, cycle, voltage) Running current 4.01 4.23 6.16 6.47 Max. current External finish Munsell 3Y 7.8/1.1 Linear Expansion Valve Refrigerant control Compressor Hermetic VHA2...
