Westinghouse PT-16H610S Mounting Manual

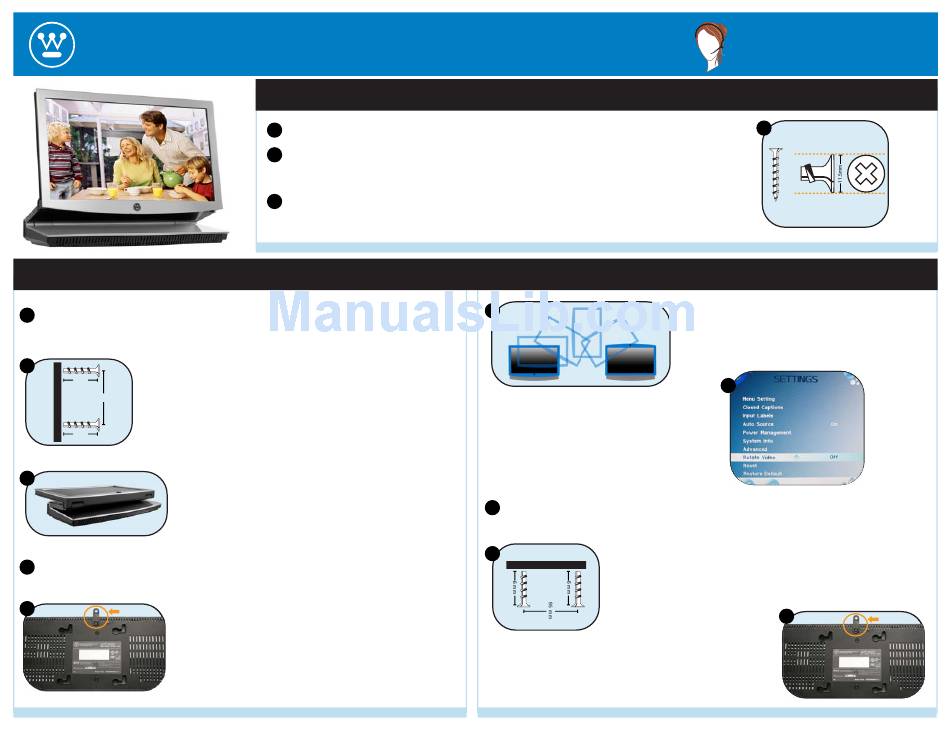

Mounting Guide for PT-16H610S
Mounting on wall
1 Print out the mounting template or measure and mark the 95 x 100 mm hole positions on
the surface.
2
Install 4 screws into the template marks leaving 5~6 mm of space
6 mm
between the screw head and wall surface.
95 mm
6 mm
3
Fold the TV flat.
4
Hang the TV using integrated mounting holes and slide down to secure in place.
5
SAFETY LATCH
Install the last screw in the safety latch to prevent the TV
from sliding when adjusting the viewing angle.
Tools required
1 Screwdriver on Drill
2 5 screws. The screw head cannot exceed 11.5 mm (Diagram A). The length and type
of screw depends on the wall or cabinet surface where the TV will be mounted.
Check with your local hardware store for more screw info.
3
Pencil or print template to mark screw hold position.
© 2008 Westinghouse Digital Electronics, LLC. All rights reserved. Specifications subject to change without notice. ¼, Westinghouse and You can be sure... if it's Westinghouse are trademarks of Westinghouse Electric Corporation. MA-PS-0126-0701
Mounting under the cabinet
1
Before mounting the TV, power on, open the setup
menu, scroll to Settings, and select Rotate Video.
This setting will flip the video 180 degrees for
view in the under cabinet mounted position.
3
Print out the mounting template or measure and mark the 95 x 100 mm hole positions on
the surface.
4
Install 4 screws into the template marks leaving 5~6 mm of space
between the screw head and under cabinet surface.
Hang the TV using integrated mounting holes and slide
forward to secure in place. Install the last screw in the safety
latch to prevent the TV from sliding when adjusting the
Customer Service
866-287-5555 • www.wde.com
A
Unsnap plastic front bezel from the TV, rotate, and snap
back in place.
2
5
viewing angle.
SAFETY LATCH
