Specification:
Free Type
Standard Nozzle
Capacity Of Cup
Air Consumption
Air Inlet (NPS)
Air Hose (NPS)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91

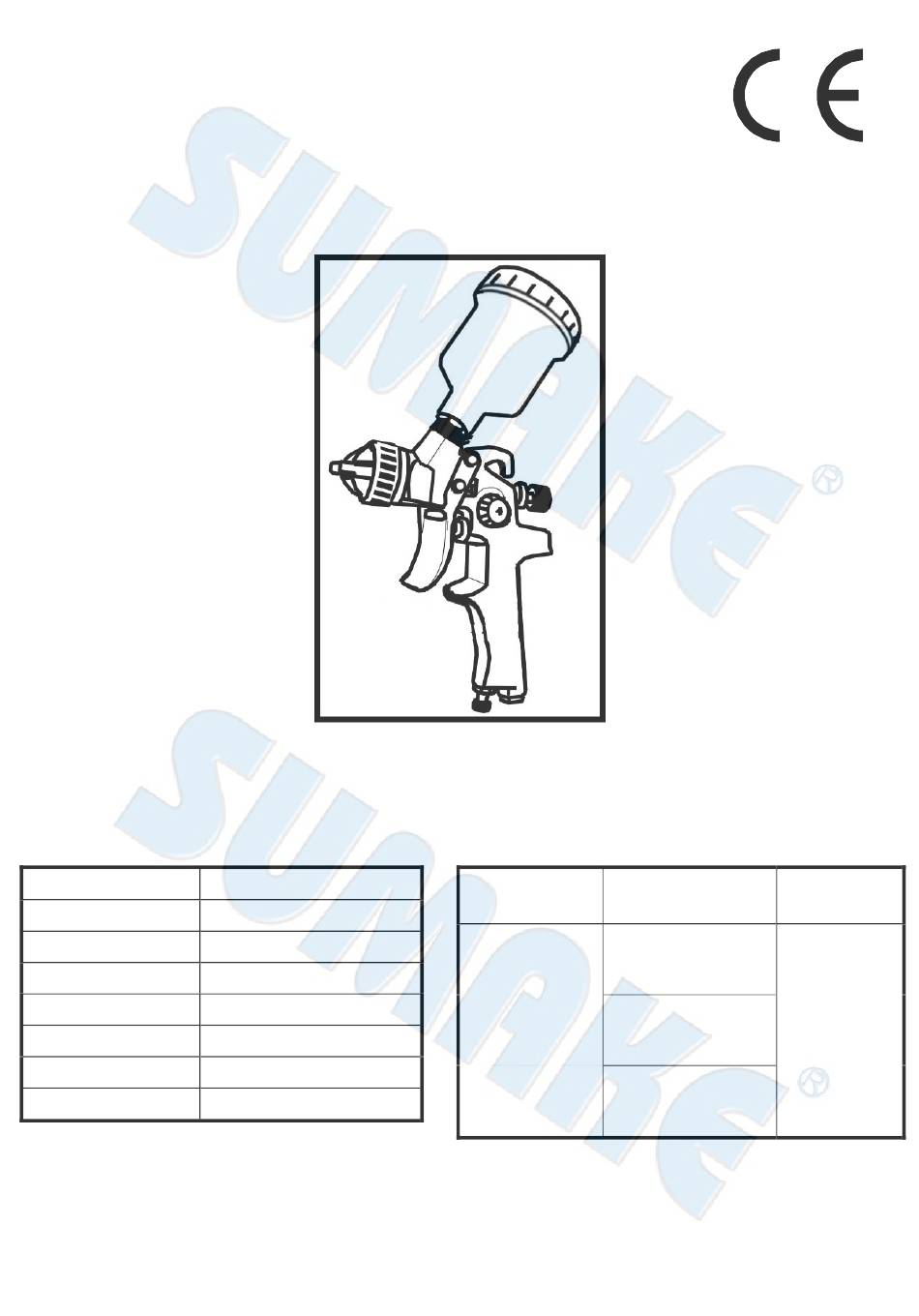

HVLP Air Gravity Spray Gun
Gravity
0.8 mm
0.125 L
2.8 CFM (79 L/min)
1/4" (6.35 mm)
3/8" (10 mm)
29psi (2kg/cm²) (2Bar)
0.77 lbs (0.35 kg)
PNEUMATIC TOOLS
SS-1205
Noise and Vibration:
Vibration
0.186 m/s²
Uncertainty
K= 1.5 m/s
Noise
Sound Pressure Level
: 71 dB(A)
Sound power level
: 82 dB(A)
Uncertainty
²
K= 3dB
SS-1205-S-1302B-GWF
Remark
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
hearing!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sumake SS-1205
Summary of Contents for Sumake SS-1205
- Page 1 3/8” (10 mm) dB(A) due to Air Pressure 29psi (2kg/cm²) (2Bar) risk of impaired Uncertainty Uncertainty hearing! Net Weight 0.77 lbs (0.35 kg) ² K= 1.5 m/s K= 3dB SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 SS-1205-S-1302B-GWF...
-
Page 9: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： HVLP AIR GRAVITY SPRAY GUN Model/ Serial No.： SS-1205 to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... -
Page 10: Parts List
SS-1205 HVLP AIR GRAVITY SPRAY GUN (REPLACEABLE SPRAY GUN) PARTS LIST No. Parts No. Description Q'ty No. Parts No. Description Q'ty 1205-01 Gun Body 1205-17 Fluid Control Knob 1205-02 Air Cap 1205-18 Spray Regulating Screw 1205-03A Fluid Nozzle 0.8mm 1205-19... -
Page 11: Spray Gun
SPRAY GUN Original instructions SUMAKE Industrial Co. Ltd. - Page 12 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 13 Safety precautions for repetitive motions hazards 1. When using the tool, the operator may experience discomfort in the hands, arms, shoulders, neck, or other parts of the body. 2. While using the tool, the operator should adopt a comfortable posture. Maintain secure footing and avoid awkward or off-balanced postures.
- Page 14 General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary. Twist Teflon thread tape to ensure a proper seal air inlet. Then tighten the air coupler into air tool. The supplied compressed air must be clean and dry, with the appropriate oil mist.
