TimeView 230 Display Clock

PHONE: +1.585.381.4827

www

.spectracomcorp.com

www

www.spectracomcorp.com

www

.spectracomcorp.com

in any form without the written permission of Spectracom Corporation.

Model 8175

Spectracom Corporation

101 Despatch Drive

East Rochester NY 14445 USA

2002 Spectracom Corporation.

Instruction Manual

FAX: +1.585.381.4998

mailroom@spectracomcorp.com

Rev. 1.5

September 2002

Table of Contents

Need help?

Do you have a question about the TimeView 230 and is the answer not in the manual?

Questions and answers

Summary of Contents for Spectracom TimeView 230

Page 1 Copyright Copyright Copyright 2002 Spectracom Corporation. 2002 Spectracom Corporation. 2002 Spectracom Corporation. 2002 Spectracom Corporation. 2002 Spectracom Corporation. © All rights reserved. Contents of this publication may not be reproduced in any form without the written permission of Spectracom Corporation.
Page 2 Spectracom’s option, of the product or the component thereof which is found to be defective. If in Spectracom’s judgment the defective condition in a Spectracom product is for a cause listed above for which Spectracom is not responsible, Spectracom will make the repairs or replacement of components and charge its then current price, which buyer agrees to pay.
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION 1 GENERAL INFORMATION Introduction ..............1-1 Features ..............1-2 Warranty Information and Product Support ....1-2 Manual Errata and Special Documentation ....1-3 Unpacking ..............1-3 Specifications .............. 1-4 1.5.1 RS-485 Input 1.5.2 RS-485 Repeater 1.5.3 User Selectable Options 1.5.4 Power...
Page 4 CABLE SOURCES FOR RS-485 LINES UNDER 1500 FEET ..........2-9 TABLE 3-1 TIME ZONE OFFSETS ..........3-7 FIGURE 1-1 MODEL 8175 TIMEVIEW 230 ........1-1 FIGURE 2-1 DUPLEX MOUNTING HOLES ........2-2 FIGURE 2-2 NETCLOCK/2 REMOTE OUTPUT CONNECTOR ..2-6 FIGURE 2-3 CONNECTION TO NETCLOCK/2 ......
Page 5: Section 1 General Information

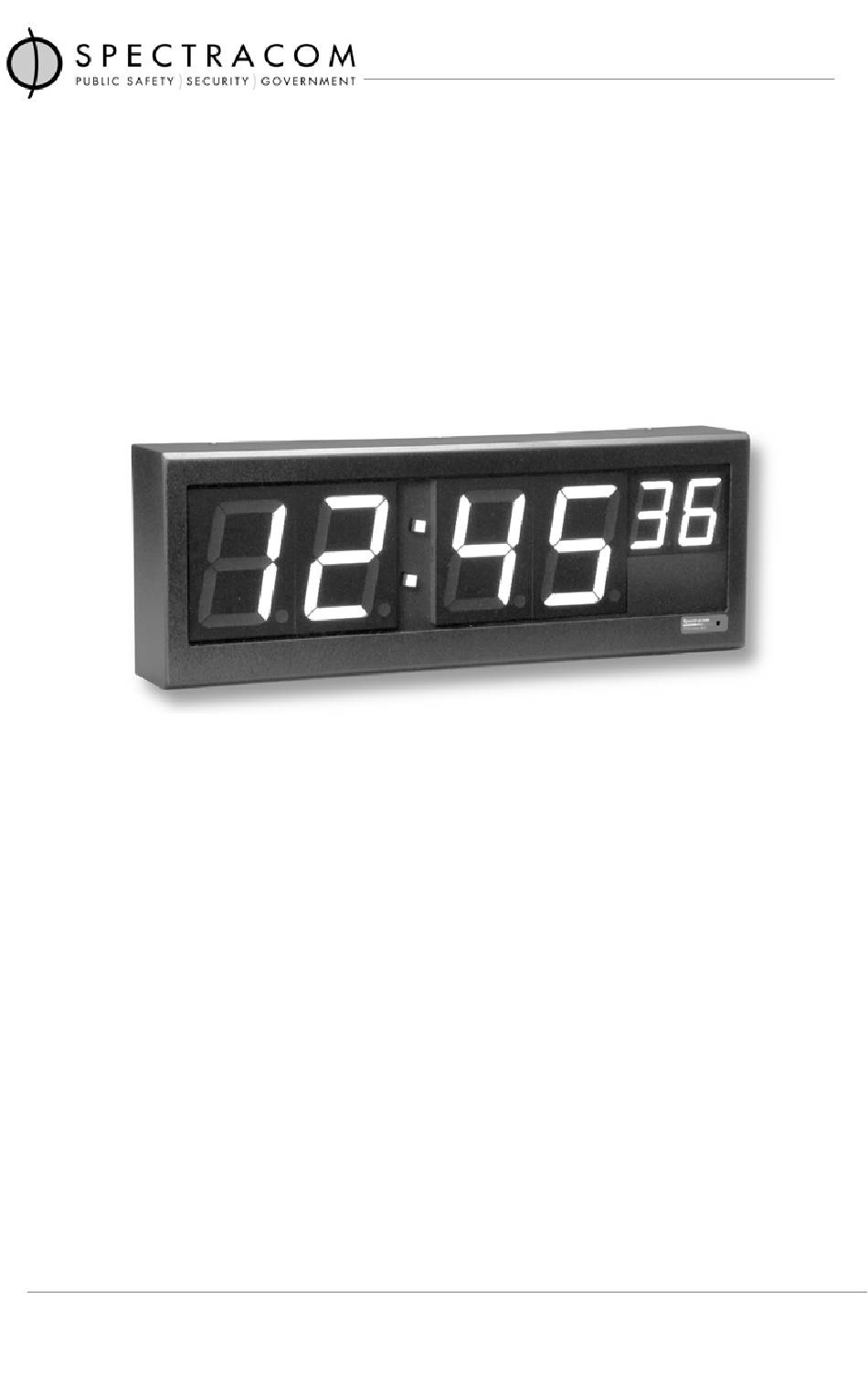

NetClock Master Clock. The display is configurable for 12- or 24-hour time format and time zone offsets. TimeView 230 displays may also synchronize to a host com- puter running a network timekeeping system, or set manually for stand-alone operation. FIGURE 1-1 MODEL 8175 TIMEVIEW 230...
Page 6: Features
FEATURES The Spectracom TimeView 230 offers these features: Displays traceable time when connected to a NetClock Master Clock. Clocks may also be synchronized from a computer or set manually. Automatic data format and baud rate detection makes set up and installation easy.
Page 7: Manual Errata And Special Documentation
Failure to report shipping damage immediately may forfeit any claim against the carrier. In addition, notify Spectracom of shipping damage or shortages to obtain a replacement or repair services. Each Model 8175 is shipped with an instruction manual and an ancillary kit.
Page 8: Specifications
TABLE 1-1 ANCILLARY KIT SPECIFICATIONS This section lists the specifications for the Model 8175 TimeView 230. 1.5.1 RS-485 Input Connector: 6-position removable terminal block (supplied) Input Signal: RS-485 ASCII data stream in...
Page 9: Rs-485 Repeater
Max Loading: 32 devices 1.5.3 User Selectable Options TimeView 230 switches and controls select the following options: 12- or 24-hour display format, time zone offsets, display intensity, time set from NetClock Master Clock, computer, or manually entered, and RS-485 termination.
Page 10: Section 2 Installation
INSTALLATION INTRODUCTION This section describes the TimeView 230 mounting, switch set-up, connection to a NetClock or computer synchroni-zation source and manual set operation. MOUNTING INSTRUCTIONS The ancillary kit includes screws and plastic anchors for wall mounting the clock. Tools needed for mounting are a Phillips screwdriver and a 1/4"...
Page 11 FIGURE 2-1 DUPLEX MOUNTING HOLES NOTE: When hanging the clock, use the top two cover screws as a guide for locat- ing the mounting holes. Page 2-2...
Page 12: Preparation For Use
This section describes the configuration selections for the Model 8175 TimeView 230. The rear panel 10-position DIP switch selects the clock options. The TimeView 230 is factory- shipped for 24-hour display; no time zone offsets, NetClock synchronization, and RS-485 termination off.
Page 13 DAYLIGHT SAVING STANDARD TIME TIME ZONE TIME (October-April) (April-October) Atlantic Eastern Central Mountain Pacific TABLE 2-1 COMMON OFFSET VALUES DIP SWITCH NUMBER / SETTING OFFSET VALUE TABLE 2-2 TIME ZONE SWITCH SETTINGS NOTE: Place DIP switches 1 through 5 in the OFF position when time zone offsets are not required.
Page 14: 12- Or 24-Hour Display
2.2.2 12- or 24-Hour Display The TimeView 230 can display time in a 12- or 24-hour format. Place DIP switch 6 in the ON position for 12-hour display format and OFF for 24-hour time display. 2.2.3 Synchronization Source DIP switch number 7 selects the source of the synchronizing data stream.
Page 15: Synchronization Connection
Model 8186, TimeBridge, Wireless Time Link Model 8189, NetClock/NTP, GPS Network Time Provider The TimeView 230 connects to the RS-485 output port found on the NetClock Master Clocks and TimeBridge. These ports provide a continuous once-per-second time data stream. The TimeView 230 automatically detects the data format and baud rate of the synchronizing data stream.
Page 16: Connection To Gps Synchronized Clocks Or Timebridge
TimeBridge All Spectracom GPS synchronized clocks and Model 8186 TimeBridge provide the RS-485 synchronizing data stream on a 3-position terminal block. Connect the TimeView 230 to the time source as shown in Figure 2-4. FIGURE 2-4 GPS MASTER CLOCK AND...
Page 17: Interconnection Information
The mating terminal blocks are provided in the equipment ancillary kits. NOTE: The TimeView 230 accepts only Format 0 or Format 1 data streams. Configure the RS-485 output port on the NetClock or TimeBridge to provide Format 0 or Format 1.
Page 18 TABLE 2-3 CABLE SOURCES FOR RS-485 LINES OVER 1500 FEET For cable runs less than 1500 feet, a lower-cost twisted pair cable may be used. Refer to Table 2-4 for possible sources. NOTE: CAT5 Network cable may also be used for cable runs less than 1500 feet.
Page 19 (Figure 2-6) terminate the devices installed on the extreme ends of the bus. The TimeView 230 includes a built-in termination switch that places a 120-ohm termination resistor across the RS-485 line. Place DIP switch number 10 in the ON position when the TimeView 400 is located at the end of the time data bus.
Page 20 NetClock Master Clock. The Model 8185 terminal block input connects directly to the RS-485 data bus. Spectracom Model 8188 NetClock/ETS is an Ethernet Time Server which supports NTP, SNTP and UDP/Time protocols. The Model 8188 accepts Formats 0 or 2, at 9600 Baud.
Page 21 FIGURE 2-5 ONE-WAY BUS INSTALLATION Page 2-12...
Page 22 FIGURE 2-6 SPLIT BUS INSTALLATION Page 2-13...
Page 23: Rs-485 Repeater
2.4.2 RS-485 Repeater As stated in the previous section, RS-485 Guidelines, the NetClock can drive up to 32 devices over a maximum cable length of 4000 feet. The guidelines also recommend the RS-485 transmission line be connected in a continuous daisy- chain configuration.
Page 24 TimeView TimeView Time To Backup Return Cable to Main Data Bus Dispatch Consoles ≈ ≈ TimeView To Other Devices RS-485 FIGURE 2-7 INSTALLATION NOT USING REPEATER OUTPUT Figure 2-8 shows the same installation using the Repeater output. Note that the return cable to the main data bus is eliminated.
Page 25: Connection To A Computer
GROUND RS-422/485 INTERFACE FIGURE 2-9 COMPUTER CONNECTION Multiple TimeView 230 clocks can be synchronized by a single computer when connected as shown in Figure 2-10. Terminate the last clock in the line by placing DIP switch 10 in the ON position.
Page 26: Manual Set Procedure
The computer can synchronize up to 32 clocks over a total cable length of 4000 feet. MANUAL SET PROCEDURE The TimeView 230 can be manually set for operation as a stand-alone display clock. Time is entered using the rear panel MODE and SET switches. The MODE switch advances the clock through the setting process and the SET switch selects the time variables.
Page 27 Hours are entered in a 24-hour format, even if the 12-hour display format is selected. For example, when setting the TimeView 230 for 2:00 PM, enter 14 for the hours value. To set hours, depress and release the MODE switch. The hours digits blink and show the current hours value.
Page 28 2.6.1.3 Set Seconds The seconds digits blink and display the current seconds value. If the value is appropriate, depress the MODE switch to exit from the Manual Set procedure. Seconds are not selected like the hours and minutes values. Depressing the SET button resets the seconds to "00"...
Page 29: Section 3 Operation
OPERATION INTRODUCTION This section describes the TimeView 230 display, rear panel functions, and computer setting information. DISPLAY TimeView 230 Display, shown in Figure 3-1, features green 2.3 inch digits for the hours and minutes, and 1.0 inch digits for the seconds. Display brightness is adjustable to suit various lighting conditions.
Page 30: Fault Indications
RS-485 driver/receiver failure. The display will continue to flash until the data stream is restored. Computer Fault Indications The display seconds flash when the TimeView 230 has not received a synchronizing data stream from the computer within four hours. The seconds remain flashing until the computer updates the clock.
Page 31 FIGURE 3-2 MODEL 8175 REAR PANEL Page 3-3...
Page 32: Rs-485 Interface
2 and 3 of the terminal block. Connect the non-inverted RS-485 data line to Pin 1, the inverted data line to Pin 2, and the cable shield to Pin 3. TimeView 230 accepts either Data Format 0 or 1 at baud rates from 300 to 9600 from a NetClock or 9600 baud from a computer.
Page 33: Manual Set Switches
3.2.3 Power The TimeView 230 is powered by the supplied 115 VAC to 16.5 VAC power adapter. The power jack accepts a barrel- type plug with a 5.5 mm O.D. and a 2.1 mm I.D. Replacement adapters are available from Spectracom. Specify Part Num- ber T00054.
Page 34 Switches 1 through 5 Time Zone Offset The TimeView 230 can offset the time received from a NetClock or computer to display time in other time zones. DIP switches 1 through 5 enter the binary equi-valent of the offset value between 0 and 23.
Page 35 TABLE 3-1 TIME ZONE OFFSETS Page 3-7...
Page 36 Switch 6 12 or 24-hour Display This switch configures the TimeView 230 display for 12- or 24- hour time format. To display time in a 12-hour format, place this switch in the ON position. Placing this switch in the OFF position configures the display for 24-hour time format.
