Summary of Contents for NCR VOYIX 7772-K141

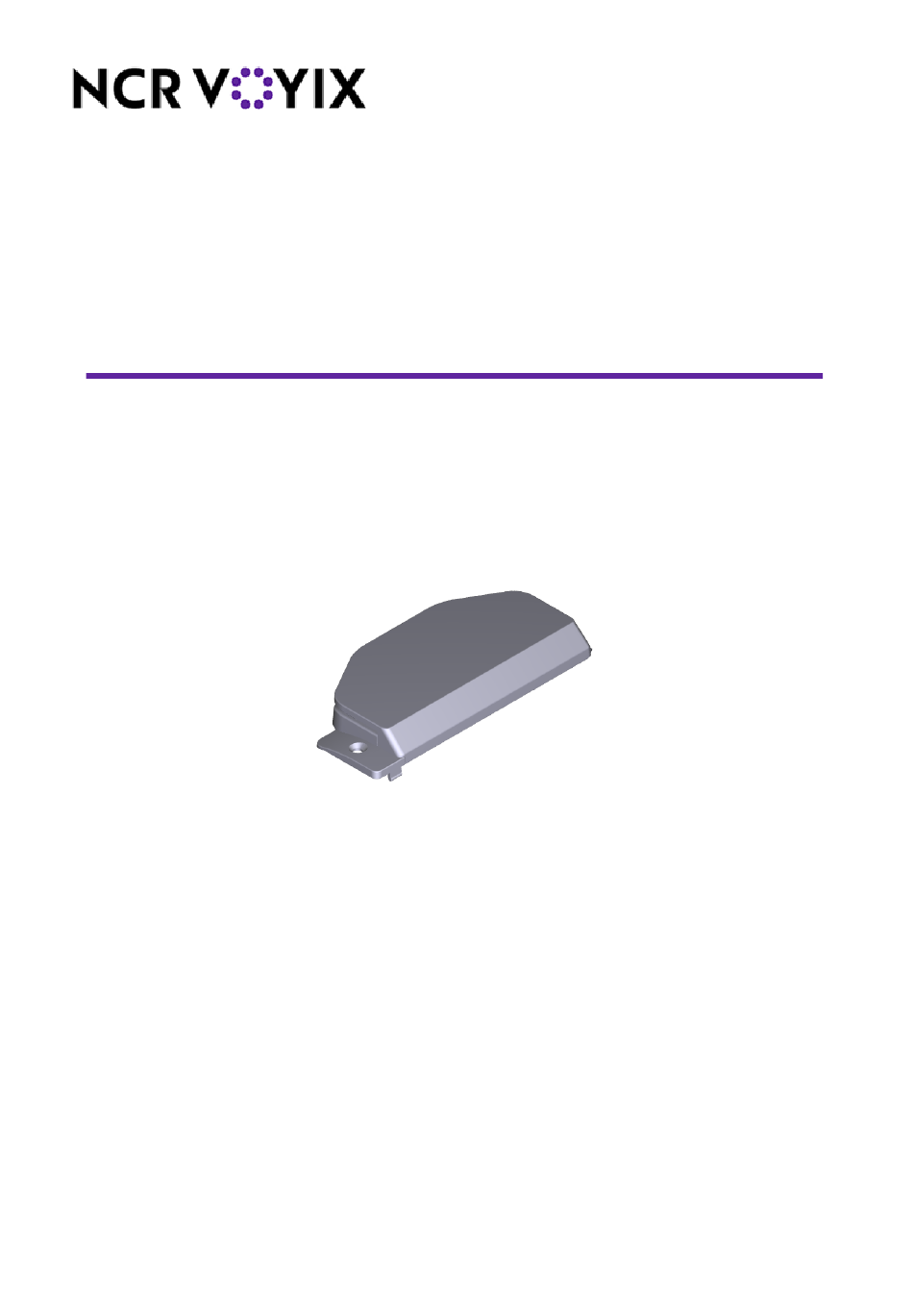

- Page 1 NCR Encrypted MSR Kit Instructions 7772-K141 Issue C Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
- Page 3 Table of Contents Copyright NCR Encrypted MSR Kit Contents Installation Procedure Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 4 Issue Date Remarks Jul 2019 First Issue Jun 2020 Added CX5 (7773) to introduction Updated illustrations for steps 4 and 5 Dec 2021 Added Warning statement Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 5 NCR Encrypted MSR This kit provides an NCR Encrypted MSR for the NCR CX7 All-in-One POS (7772) or NCR CX5 All-in-One POS (7773). Kit Contents Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 6 Remove the two (2) screws that secure the Cable Cover to the Back Cover. b. Rotate and unhook the Cable Cover from the Back Cover. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 7 Remove the Ethernet Cable from the Cable Management Hook then disconnect the Cable. 4. Loosen the two (2) captive screws that secure the Back Cover to the Display. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 8 5. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs. 6. Connect the MSR Cable to the Extension Cable. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 9 8. Route and secure the Cable under the Cable Management Hooks as shown, then connect the Cable to the Motherboard. 9. Tuck the excess Cable under the display housing. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 10 11. Secure the MSR with a screw. 12. Reinstall the Display Back Cover. 13. Reconnect the 180-degree USB-C Cable and Ethernet Cable. 14. Reinstall the Cable Cover. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
