MODEL # 90309
Visit our
EarthWay
website to see the
assembly video
Prior to assembly, you will need:
Two 7/16" adjustable or box wrenches
SPRAYER OUTPUTS (OPEN FLOW, GAL/1000 sq. ft)
WALK SPEED
SPRAY NOZZLE
(MPH)
(HYPRO HF140-15)
1
1.5
2
2.5
3
3.5
4
90309_M52169_December2023
ICE MELT BOOM
2.7
6.8
1.8
4.5
1.4
3.4
1.1
2.7
0.9
2.3
0.8
1.9
0.7
1.7

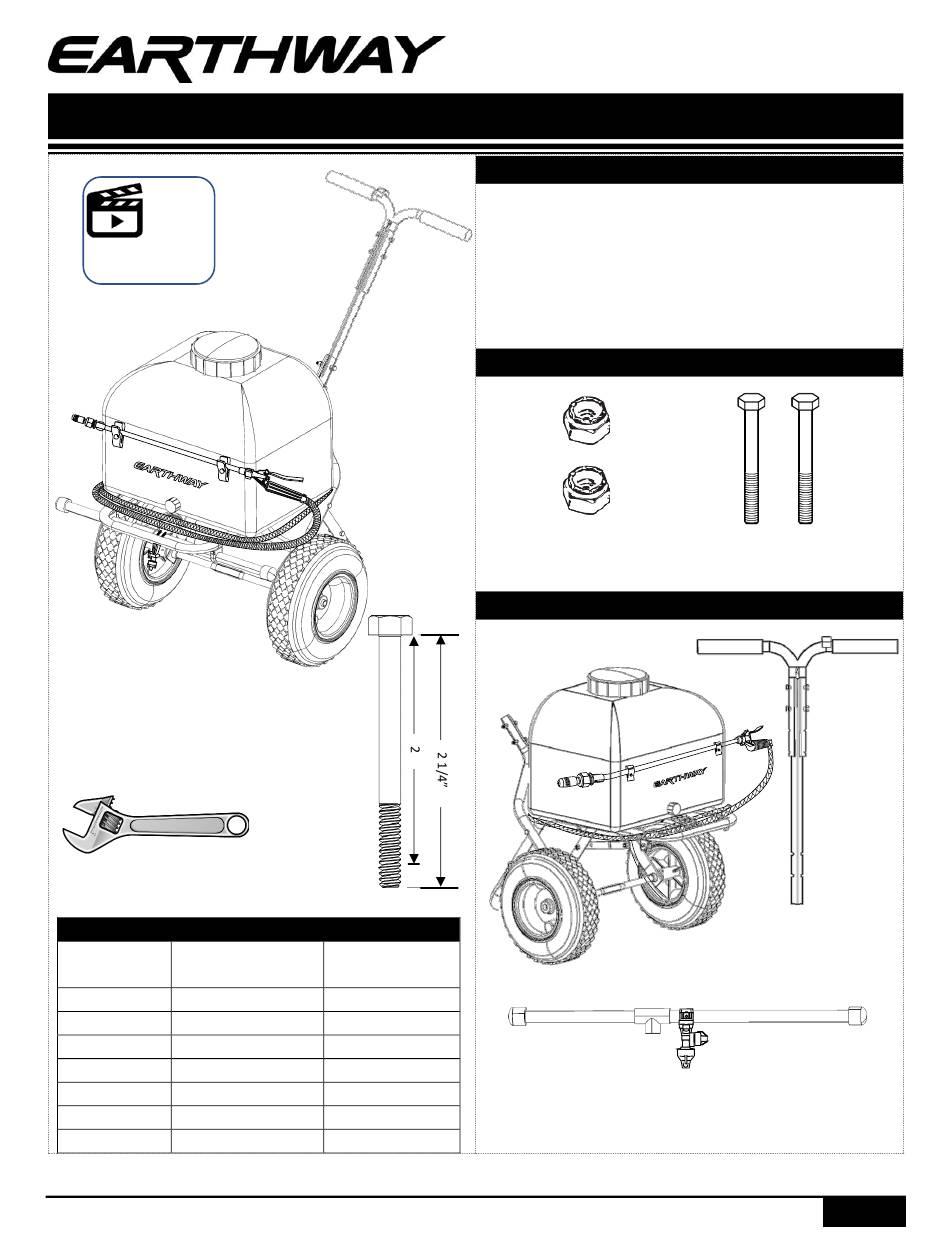

8-Gallon Power Sprayer
ASSEMBLY INSTRUCTIONS
THANK YOU FOR CHOOSING EARTHWAY
Thank you for purchasing EarthWay's 8-Gallon Power
Sprayer!
•
The included spray boom nozzle is calibrated to
1.2 gallons per minute, which equates to 0.9
gallons per 1000 sq. ft at 3 mph.
•
SEE TABLE BELOW for sprayer output settings.
ASSEMBLY HARDWARE
LOCK NUT
QTY 2
SPRAYER COMPONENTS
¼-20 X 2" SCREW
QTY 2
PAGE 1
Advertisement
Related Manuals for EarthWay 90309
Summary of Contents for EarthWay 90309
- Page 1 8-Gallon Power Sprayer MODEL # 90309 ASSEMBLY INSTRUCTIONS THANK YOU FOR CHOOSING EARTHWAY Thank you for purchasing EarthWay’s 8-Gallon Power Visit our Sprayer! EarthWay • website to see the The included spray boom nozzle is calibrated to assembly video 1.2 gallons per minute, which equates to 0.9 gallons per 1000 sq.
- Page 2 Assembly and Operation Instructions SPRAYER ASSEMBLY INSTRUCTIONS Remove all Step 1: components and hardware items from the box. Place the sprayer assembly so it is facing away from you, tilted forward. Wind the hose around Step 2: the bottom of the tank and clip the spray wand into the (2) wand clips located on the front of the tank.
- Page 3 Assembly and Operation Instructions Install the sprayer Step 3: handle assembly into the two lower handle holes using (2) ¼” X 2 1/4” screws. Secure with (2) lock nuts. Note: Make sure the on/off switch is facing up, and be sure to maneuver around the wires in the handle shaft.
- Page 4 NOW GO BACK AND TIGHTEN ALL NUTS AND BOLTS. DO NOT OVER TIGHTEN. Congratulations, you are ready to use your 8-Gallon Power Sprayer. Thank you for choosing EarthWay Products! OPERATING INSTRUCTIONS 90309_M52169_December2023 PAGE 4...
-
Page 5: Customer Service
Do not inhale, ingest, or touch such chemicals. When using hazardous chemicals, use safety glasses and gloves to protect the eyes and skin. Read the chemical labels carefully to ensure safety. CUSTOMER SERVICE SUPPORT@EARTHWAY.COM www.EARTHWAY.com | 1009 Maple Street, Bristol, IN 46507... - Page 6 EarthWay Products, Inc. provides this limited warranty that this product is free of defects in original workmanship and materials for a period of one year to the end user with the original purchase receipt. If a manufacturing non-conformance is found, EarthWay Products, Inc.
- Page 7 Assembly and Operation Instructions HOW TO ORDER SPARE PARTS – CALL or EMAIL: TURF DEPOT 800-305-9255 or earthway@turfdepot.com (90308/9) 8-Gallon Sprayer SERIES PART # DESCRIPTION SERIES PART # DESCRIPTION 90319 Sprayer Painted Handle Assembly 90946 Connection Hose: 3/8 ID ½ OD PVC Tube SEAFLO 1.3 GPM Pump...
