EarthWay S25 SPRAY-PRO Assembly And Operating Instructions Manual

S25
SPRAY-PRO
ASSEMBLY and OPERATING INSTRUCTIONS
Congratulations on the purchase of this new sprayer from Earthway Products, Inc. Please call us if you have any difficulty
with assembly or operation of this sprayer. We can be reached via the telephone at 800-294-0671 or 574-848-7491, Monday
- Friday 9:00am ~ 4:00pm or visit us online at www.earthway.com This sprayer comes with lifetime technical support,
email us at techsupport@earthway.com.
HELPFUL HINTS: READ THE DIRECTIONS BEFORE ASSEMBLY
THIS SPRAYER COMES PARTIALLY ASSEMBLED, REQUIRING YOU TO INSTALL THE WHEELS, HANDLE ASSEMBLY,
SPRAY GUN HOLDER, AND CONTROL ROD. IT SHOULD TAKE APPROXIMATELY 15 MINUTES WITH THE USE OF TWO
7/16" WRENCHES AND 1 PAIR OF PLIERS.
Your sprayer is designed to be pushed at three miles per hour, which is a brisk walking speed. Slower or faster speeds
5
will change the spray patterns and output volumes that you will achieve.
Clean your sprayer tank thoroughly after each use. Wash with clean water and push sprayer several feet to evacuate any
5
residual materials until you see clean water. Do this in a safe area as described in the chemical supplier directions.
Gears are permanently lubricated at the factory. Do not open the gearbox or dirt may enter.
5
Check all hose connections regularly to ensure they remain tight.
5
If unit fails to spray on initial use, or leaks from the nozzle, remove the cap from the top of the DCV, wipe off the top of
5
DCV body to remove any debris, and then replace the cap and tighten.
Coat all metal surfaces (inside & outside of chassis) with light oil or silicon spray to help prevent corrosion.
5
When the tank is empty, PULL THE SPRAYER BACKWARD to the designated cleaning or storage area to prevent
5
damage that can occur with a dry pump.

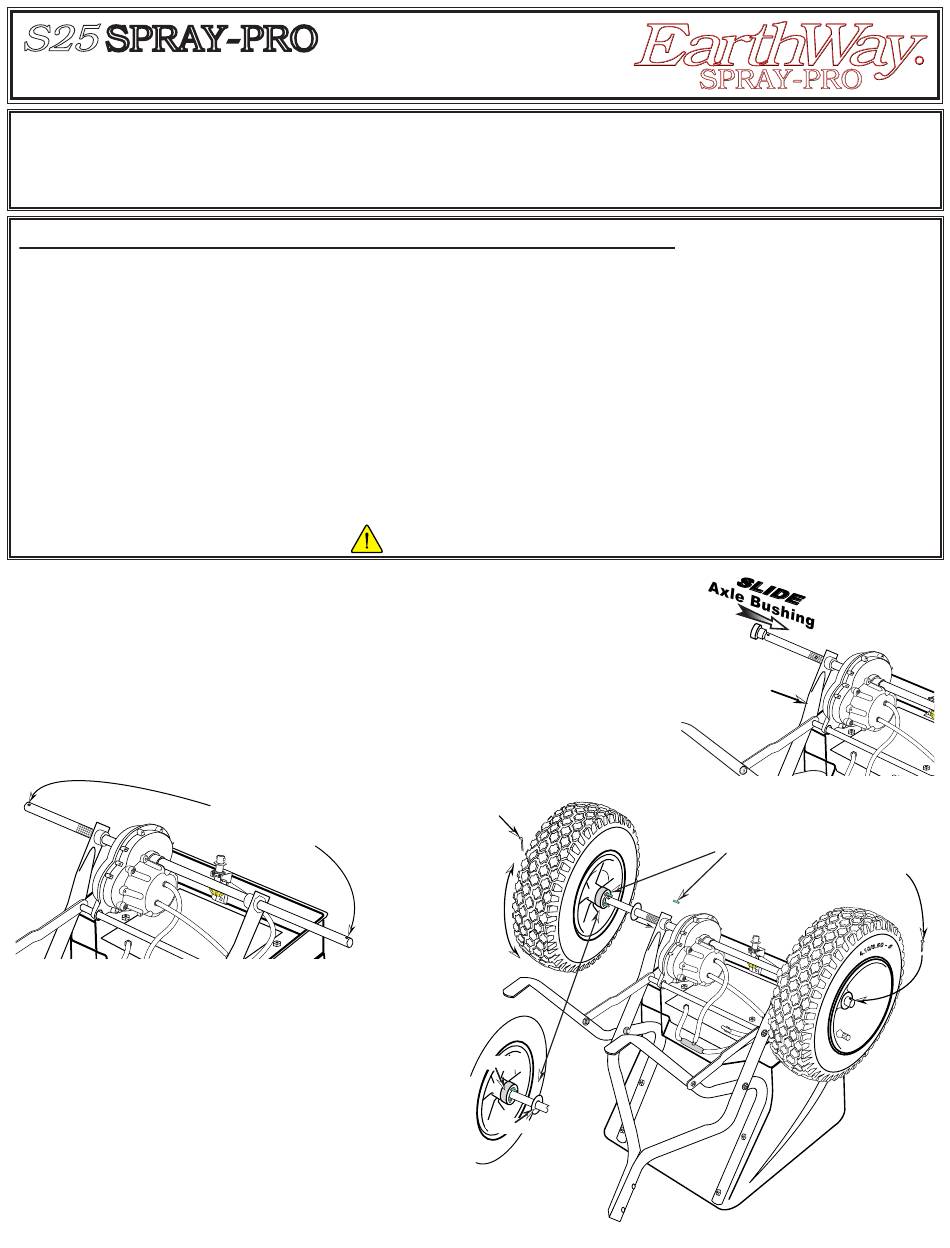

1. Open carton and remove the Handles, Control Rod, Hardware pack, Wheels, and the
S25 from carton.
2. Turn the S25 upside-down on to the tank.
3. Ensure that the Axle Bearings are pushed into the Axle Bushing on both sides as shown
at the right. Install the Coast wheel (this wheel does not have the steel ring on the inside
hub as shown below) on to axle using the cotter pin hole closest to edge of the axle.
Insert 1" cotter pin through the axle and bend with pliers to prevent pin from falling out.
4. Install the flat washer onto the axle and slide to the lower
handle. Next, position the drive wheel onto the axle 2"
and install the three (3) knurled pins one into each slot
located between the hub and the axle as shown at the
right, coat the knurled pins with WD-40 or a light oil,
finish by sliding the wheel tight against the lower handle.
Now insert 1" cotter pin through axle, bend with pliers to
prevent cotter pin from falling out.
NOTE: Included is extra set of Knurled Pins (S25-30003)
which should be saved for future use. These are wear items
and will need to be replaced, and are available to purchase
directly through our Parts department.
PUSH SPRAYER
Cotter Pin
Locations
Drive Wheel
1" Cotter Pin
Rotate wheel
to help
install pins
Steel Ring
Flat Washer
Earth Way Earth Way
SPRAY-PRO SPRAY-PRO
Lower
Handle
Slide one knurled pin into each slot
in the hub and then spray with WD-40
or a light oil and slide wheel in fully and
secure with a cotter pin
Coast Wheel
1-2012 Pt. # 52230
R R
1" Cotter Pin
