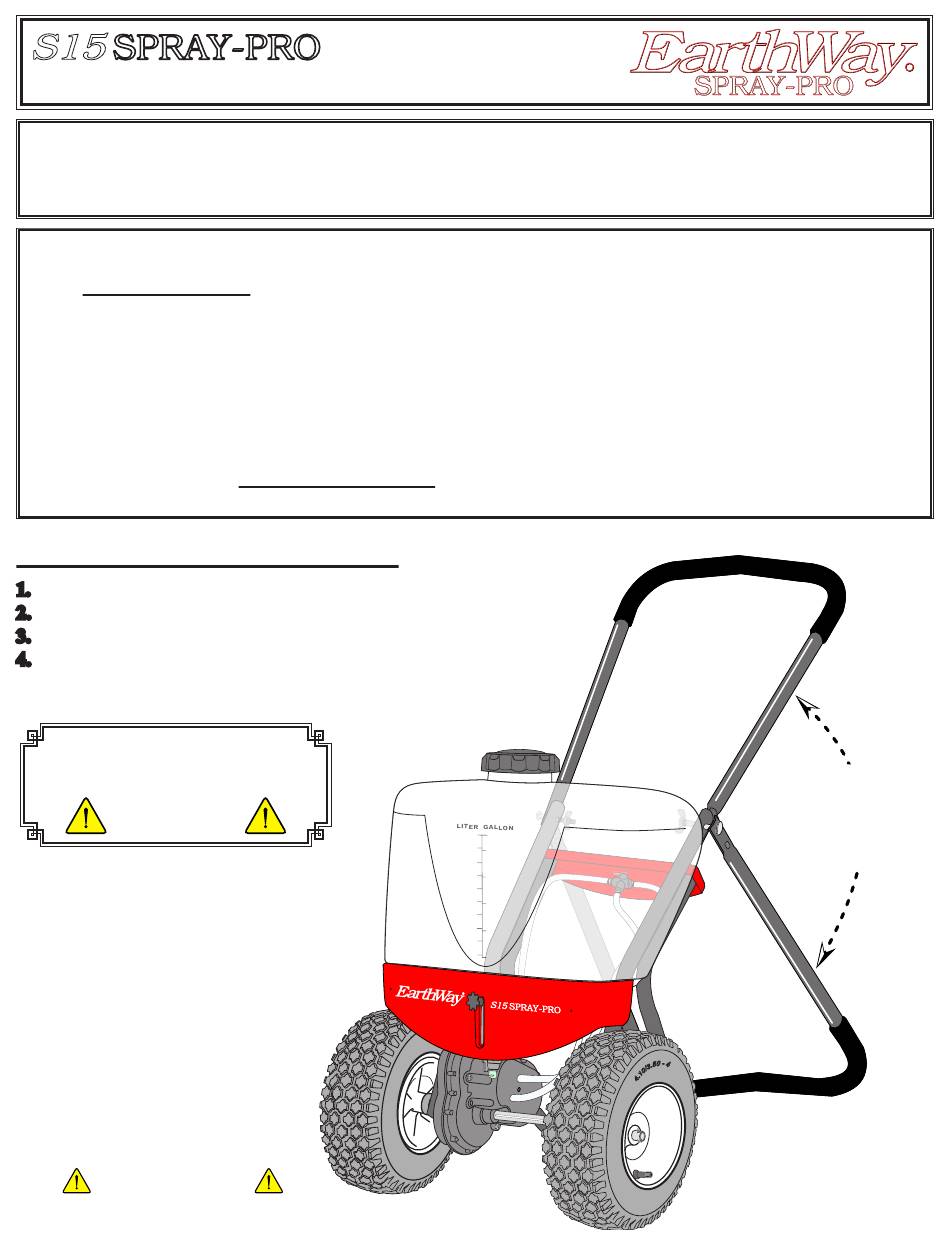

EarthWay SPRAY-PRO S15 Assembly And Operating Instructions

S15
SPRAY-PRO
ASSEMBLY and OPERATING INSTRUCTIONS
Congratulations on the purchase of this new sprayer from Earthway Products, Inc. Please call us if you have any difficulty
with assembly or operation of this sprayer. We can be reached via the telephone at 800-294-0671 or 574-848-7491,
Monday—Friday 9:00am ~ 4:00pm or visit us online at www.earthway.com This sprayer comes with lifetime technical
support, email us at techsupport@earthway.com.
HELPFUL HINTS: READ THE DIRECTIONS BEFORE ASSEMBLY
THIS SPRAYER COMES FULLY ASSEMBLED, REQUIRING YOU TO FLIP UP THE HANDLE AND TIGHTEN TWO WING
NUTS - NO TOOLS REQUIRED.
Your sprayer is designed to be pushed at two to three miles per hour, which is a brisk walking speed. Slower or faster
speeds will change the spray patterns and output volumes.
Clean your sprayer tank thoroughly after each use. Wash with clean water and push sprayer a several feet to evacuate
5
any residual materials until you see clean water in a safe area as described in the chemical suppliers directions.
Gears are permanently lubricated at the factory. Do not open the gearbox or dirt may enter.
5
Check all hose connections regularly to ensure they remain tight.
5
If unit fails to spray on initial use see Initial Start-Up Procedures on page 3.
5
To help prevent corrosion, coat all metal surfaces (inside & out) with WD-40 or a light oil.
5
When the tank is empty, pull the sprayer backward to the designated cleaning or storage area to prevent damage that
5
can occur with a dry pump.

ASSEMBLY INSTRUCTIONS

1.
Open carton and remove the S15 from carton.
2. Place the S15 onto its wheels.
3. Loosen the two wing nuts that secure the handle slightly.
4.
Lift the handle into place and tighten the two wing nuts.
Now you are ready to go!
DO NOT PUSH
FORWARD WITH TANK
EMPTY
For best results keep enough
of the liquid in the tank to
keep the pump supply line
filled. Hills and rough ground
can create a "wave effect" in
the tank that will cause the
pump to have an inconsistent
spray or to lose prime. If
this occurs, turn the control
lever to TRANSPORT and
push a few feet to re-establish
the prime and continue from
where you stopped.
PUSH SPRAYER
22
20
5
18
16
4
14
12
3
10
8
2
6
4
1
Earth Way Earth Way
SPRAY-PRO SPRAY-PRO
Lift the handle
and tighten the
wing nuts to lock the
handle in place.
3-2012 Pt.# 52238
R R
PAGE 1
