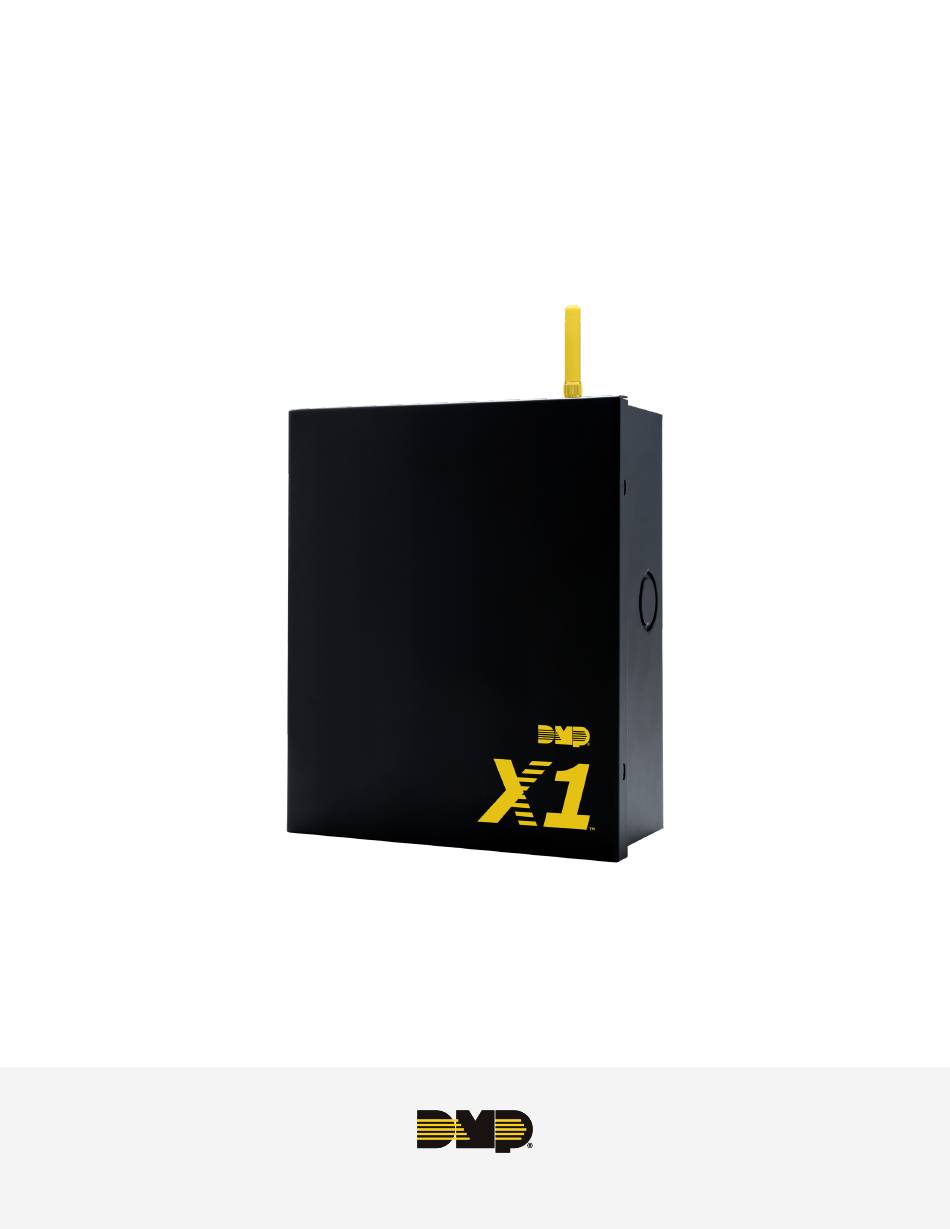

- Page 1 X1 SERIES SINGLE-DOOR ACCESS CONTROLLER INSTALLATION AND PROGRAMMING GUIDE LT-2264 1.01 24075 © 2024...
-
Page 2: Table Of Contents
TABLE OF CONTENTS X1 Door Controller Overview �������������������������������� 1 Wire the X1 Output Module ����������������������������������������������� 8 Door Controller Power ��������������������������������������������������������� 1 Optional Additional Output Modules ���������������������������� 8 Door Controller PCB Components ���������������������������������� 1 Wire the Optional Additional Modules ������������������������� 9 Door Controller Plug-In Terminals �����������������������������������... -
Page 3: X1 Door Controller Overview
X1 DOOR CONTROLLER OVERVIEW The X1 Series is a cloud-based access door controller that is fully programmed in Dealer Admin™ and maintained in Virtual Keypad™� This guide will cover mounting the door controller, wiring devices to the door controller, configuring network options, applying power, programming the door controller in Dealer Admin, and testing the door controller�... -
Page 4: Pre-Installation
STEP 1: MOUNT THE DOOR CONTROLLER The metal enclosure for the X1 Series must be mounted directly to a wall, backboard, or other flat surface in a secure, dry place to protect the door controller from damage� Do not remove the PCB from the enclosure�... -
Page 5: Step 3: Wire The Inputs
STEP 3: WIRE THE INPUTS Door Switch (DS) Connect a door contact or door position switch to indicate the status of the door, whether it is open or closed� Use this terminal if enabling door prop or door force� This terminal is a Normally Closed input� Request to Exit (RX) Connect a motion sensing device or a mechanical switch to provide RX capability to the door controller�... -
Page 6: Step 5: Wire The Electronic Lock
STEP 5: WIRE THE ELECTRONIC LOCK Form C Relay The X1 Series provides a Form C (SPDT) relay for controlling locks and other electronically-controlled barriers� The three relay terminals marked NO C NC allow you to connect the device wiring to the relay for module control�... -
Page 7: Step 6: Determine Communication
STEP 6: DETERMINE COMMUNICATION The options in this section are in the DMP-recommended installation order� If an option is not part of your desired application, move to the next option� X-PoE Connection (Optional) For a PoE connection, gently push the PoE Module onto the X1 PoE Module headers�... -
Page 8: Cellular Connection (Optional)
Cellular Connection (Optional) If the network cable or Wi-Fi are not connected, cell will be the primary communication� If the network cable or Wi-Fi are connected, the cell will be the backup communication� 1� Plug the included standoff into the door controller board� 2�... -
Page 9: Step 7: Install Optional Output Module
STEP 7: INSTALL OPTIONAL OUTPUT MODULE X1 Output Module PCB Components Refer to the diagram below throughout the installation� RELAY RELAY RELAY RELAY RELAY Address Rotary Power LEDs ADDR Bottom 4-Wire Connector NC 1 NO NC 2 NO NC 5 NO NC 3 NO NC 4 NO Top 4-Wire Connector... -
Page 10: Address The X1 Output Module
Address the X1 Output Module The X1 Output Module (X1-OUT-EXP) has a 1 through 9 addressable rotary dial that is factory defaulted to 1� Additional modules need to be addressed in sequence� Wire the X1 Output Module Use the included 4-position harness and enclosure knockouts to connect the top connector on the output... -
Page 11: Wire The Optional Additional Modules
Normally Closed To wire for output control, use the 10 terminals on the output module� The X1 Series Output Module provides 10 Form C (SPDT) 1 Amp relays for controlling access to 10 outputs� The three relay terminals are labeled for normally open (NO) and normally closed (NC) operation�... -
Page 12: Step 8: Apply Power
STEP 8: APPLY POWER Warning: Refer to your local state regulations before connecting to building power� Wiring methods shall be in accordance with NEC, NFPA72, ANSI, and with all Authority Having Jurisdiction Wire the Input Power Connect the transformer wires or external power to terminals 1 and 2 on the X1 PCB�... -
Page 13: Step 9: Manage Connection Settings
STEP 9: MANAGE CONNECTION SETTINGS During the fifteen minutes after power up, the X1 broadcasts an SSID of DMPX1 followed by the door controller’s serial number� Depending on the connection type, follow the steps in either the Wi-Fi, Network, or Cell sections below� Configure Wi-Fi Settings 1�... -
Page 14: Step 10: Program In Dealer Admin
STEP 10: PROGRAM IN DEALER ADMIN After you’ve installed the X1 Series Door Controller and configured basic communication settings, follow the steps in each of the following sections to program the door controller in Dealer Admin: 1� Sign In to Dealer Admin 2�... -
Page 15: Program The X1 Door Controller
Program the X1 Door Controller If door options don’t open automatically, select the X1 that you want to configure� 1� Enter a descriptive name for the door� 2� In Strike Time, enter the number of seconds that you want the door to unlock when access is granted�... -
Page 16: Connect The X1 Door Controller To An Xr Series
8� The selected output will be wired to an available zone on the connected alarm panel� The zone must be programmed as an Arming or Keyswitch zone type� Wire an available output from the connected alarm panel to the Custom input of the X1 controller� The output of the connected alarm panel should be programmed as an armed output�... -
Page 17: Add Card Formats
XR panel� 5� Click Save� Add Card Formats The first card format for any door is defaulted to DMP� Refer to Card Format Options below when programming card formats� 1� In Card Formats, select Add�... -
Page 18: Enable Video Services
Enable Video Services 1� In Video Services, select Add� 2� Select the types of cameras or NVRs that you want to enable on the door controller� 3� Select any third-party applications that you want to enable on the door controller� This allows users to sign in to their services from Virtual Keypad�... -
Page 19: Step 11: Test The Door Controller
STEP 11: TEST THE DOOR CONTROLLER Make sure that the Reader LEDs are on and the door controller’s Power LED is on� If connected to Wi-Fi, the Wi-Fi LED is on solid� If connected to network, the Network Port light is blinking� For cell and all communication methods, check that the door controller is communicating with Dealer Admin and Virtual Keypad after Dealer Admin programming is completed�... - Page 20 Weight 4 lbs 3 year warranty against defects in materials and Environmental workmanship. Visit DMP.com for full details. Temperature 0 ° C to 49 ° C * Max Power output is a board’s total available power for all attached 32 ° F to 120 ° F...
