Instruction Manual
BPM-832
Dual Channel Transducer Amplifier
Read instructions carefully before operating this device.
This device is not to be used for Human Life Support applications.
To avoid possible electrical shock, do not operate this device if is wet or has had liquids spilled onto it.
Service or calibration procedures should only be performed by qualified personnel familiar with the
electrical hazards of line-powered devices.
Ardmore PA 19003 U.S.A.
(610)642-7719
info@cwe-inc.com
©CWE 2024
www.cwe-inc.com
Advertisement
Table of Contents
Related Manuals for CWE BPM-832
Summary of Contents for CWE BPM-832
- Page 1 Instruction Manual BPM-832 Dual Channel Transducer Amplifier Read instructions carefully before operating this device. This device is not to be used for Human Life Support applications. To avoid possible electrical shock, do not operate this device if is wet or has had liquids spilled onto it.
- Page 2 LIFE SUPPORT POLICY Instruments manufactured by CWE, Incorporated are not authorized for use as critical components in human life support devices or systems. "Life support devices or systems", as used herein, are devices or systems whose failure to perform, whether through misuse, failure, or proper operation, can reasonably be expected to result in significant injury to the operator or subject persons.

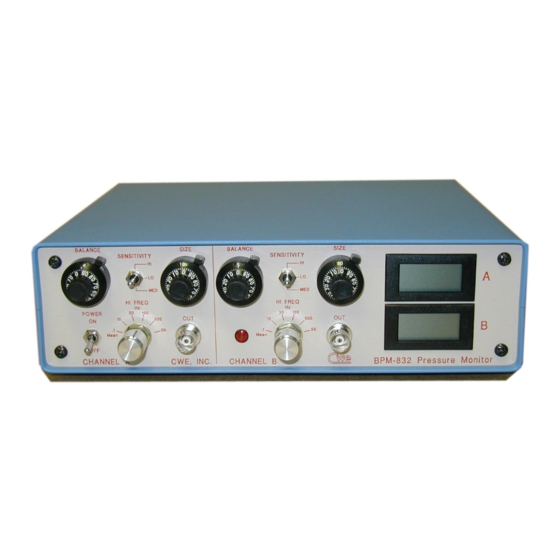

- Page 3 Adjustable low-pass filters include a mean pressure function. The BPM-832 is compatible with most strain-gage transducers using DC excitation. Figure 1: Front panel view of BPM-832, showing the two identical sets of controls. © 2024 CWE, Inc.
- Page 4 TRANSDUCER connector. This connector is compatible with Gould, Statham, Electronics for Medicine, CWE Series PS-1000 and other transducers. If your transducer has a different connector, adaptor cables are available from CWE, Inc. or from Fogg Systems. © 2024 CWE, Inc.
- Page 5 SIZE control to be positioned somewhere near its midrange, rather than at either extreme of its adjustment. Note the the full-scale output of the BPM-832 is +/-1.999V. This is also the full-scale range of the digital panel meter (1999 units). To get the maximum resolution, adjust the gain controls so as to give a maximum expected reading of close to 2V.
- Page 6 BPM-832 Instruction Manual 4.5 FILTER The low-pass filters built into the BPM-832 allow the user to attenuate unwanted high-frequency noise or artifacts which may be present on the pressure signal. The filter cutoff frequency should be selected to limit the signal to frequencies of interest.
