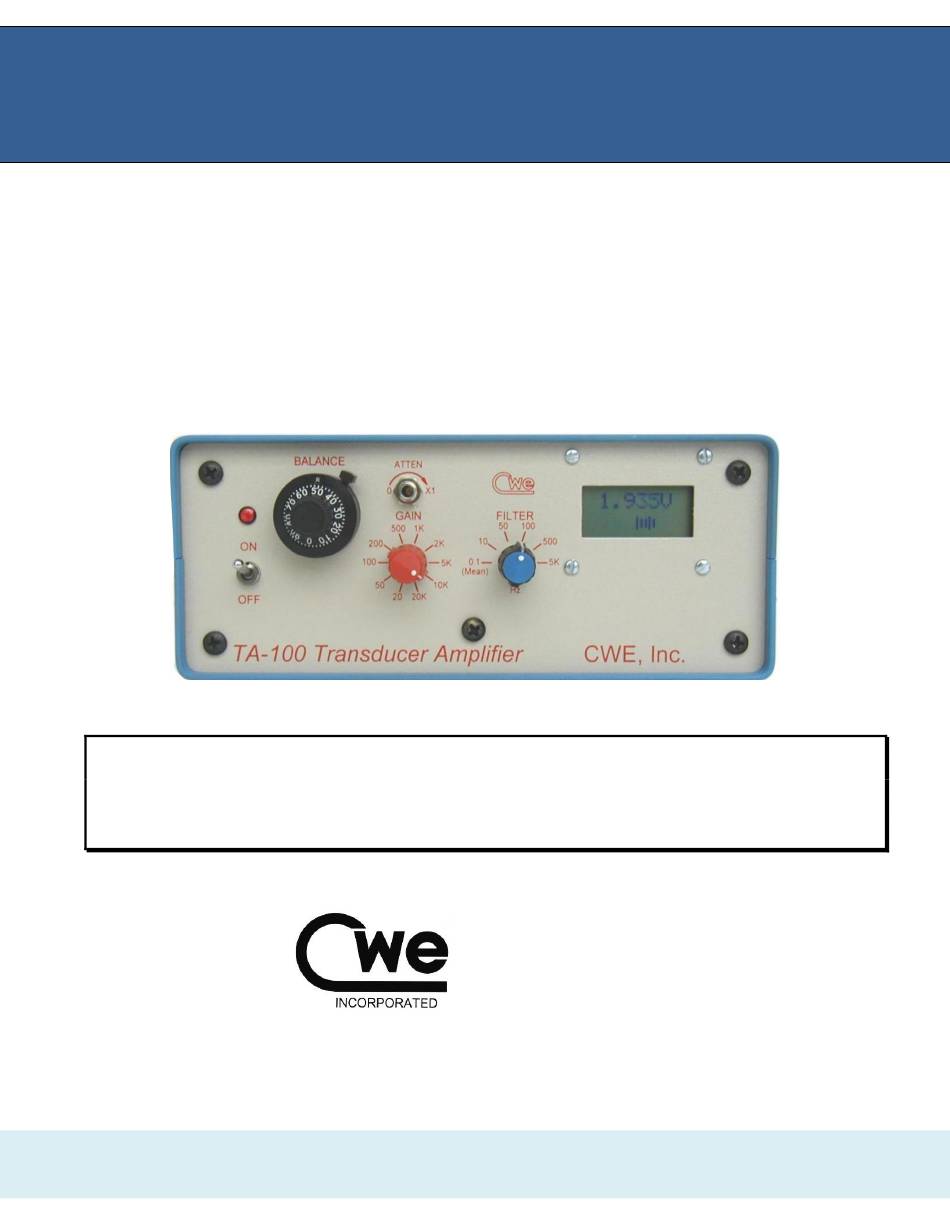

Instruction Manual

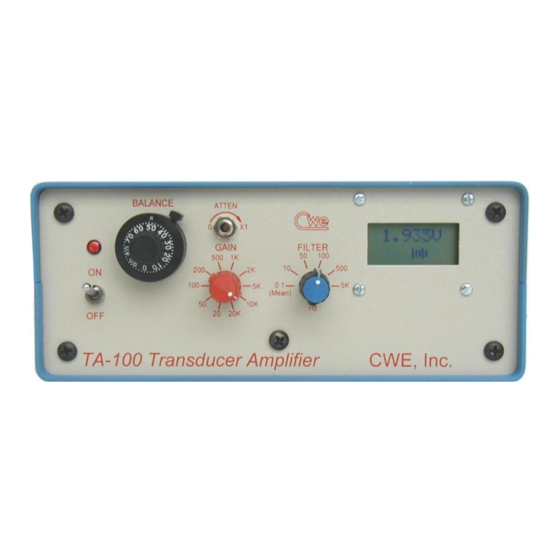

TA-100
Transducer Amplifier
Read instructions carefully before operating this device.
This device is not to be used for Human Life Support applications.
To avoid possible electrical shock, do not operate this device if is wet or has had liquids spilled onto it.
Service or calibration procedures should only be performed by qualified personnel familiar with the
electrical hazards of line-powered devices.
Ardmore PA 19003 U.S.A.
(610)642-7719
info@cwe-inc.com
©CWE 2023
www.cwe-inc.com
Advertisement
Table of Contents
Related Manuals for CWE TA-100
Summary of Contents for CWE TA-100
- Page 1 Instruction Manual TA-100 Transducer Amplifier Read instructions carefully before operating this device. This device is not to be used for Human Life Support applications. To avoid possible electrical shock, do not operate this device if is wet or has had liquids spilled onto it.
- Page 2 LIFE SUPPORT POLICY Instruments manufactured by CWE, Incorporated are not authorized for use as critical components in human life support devices or systems. "Life support devices or systems", as used herein, are devices or systems whose failure to perform, whether through misuse, failure, or proper operation, can reasonably be expected to result in significant injury to the operator or subject persons.
- Page 3 A serial port is also included, allowing remote data collection using any simple terminal software. The TA-100 features a wide gain range and a sharp-cutoff high frequency (low- pass) filter. This filter includes a...
- Page 4 4.0 GAIN SETTING The TA-100 has a very wide amplification range (over three decades), allowing the user to exactly tailor the amplifier to the transducer being used as well as the output recording device (chart recorder, data acquisition system, etc.). Gain is set...
- Page 5 TA-100 Instruction Manual 7.0 OUTPUT (rear panel) This BNC jack is used to connect the output signal from the TA-100 to an external monitoring or recording device. The usable range of the output signal is +8.0V. 8.0 SERIAL OUTPUT (rear panel) A serial output is produced each time the LCD display is updated (approximately every 200mS, or 50 times/second).
- Page 6 5mV transducer signal to be, say, 2.5V which would allow room for growth, but would still use a good part of the data-acquisition input range. To find out what TA-100 gain is needed, simply divide the input voltage by the required output voltage: 2.5V / 0.005V = 500X.
