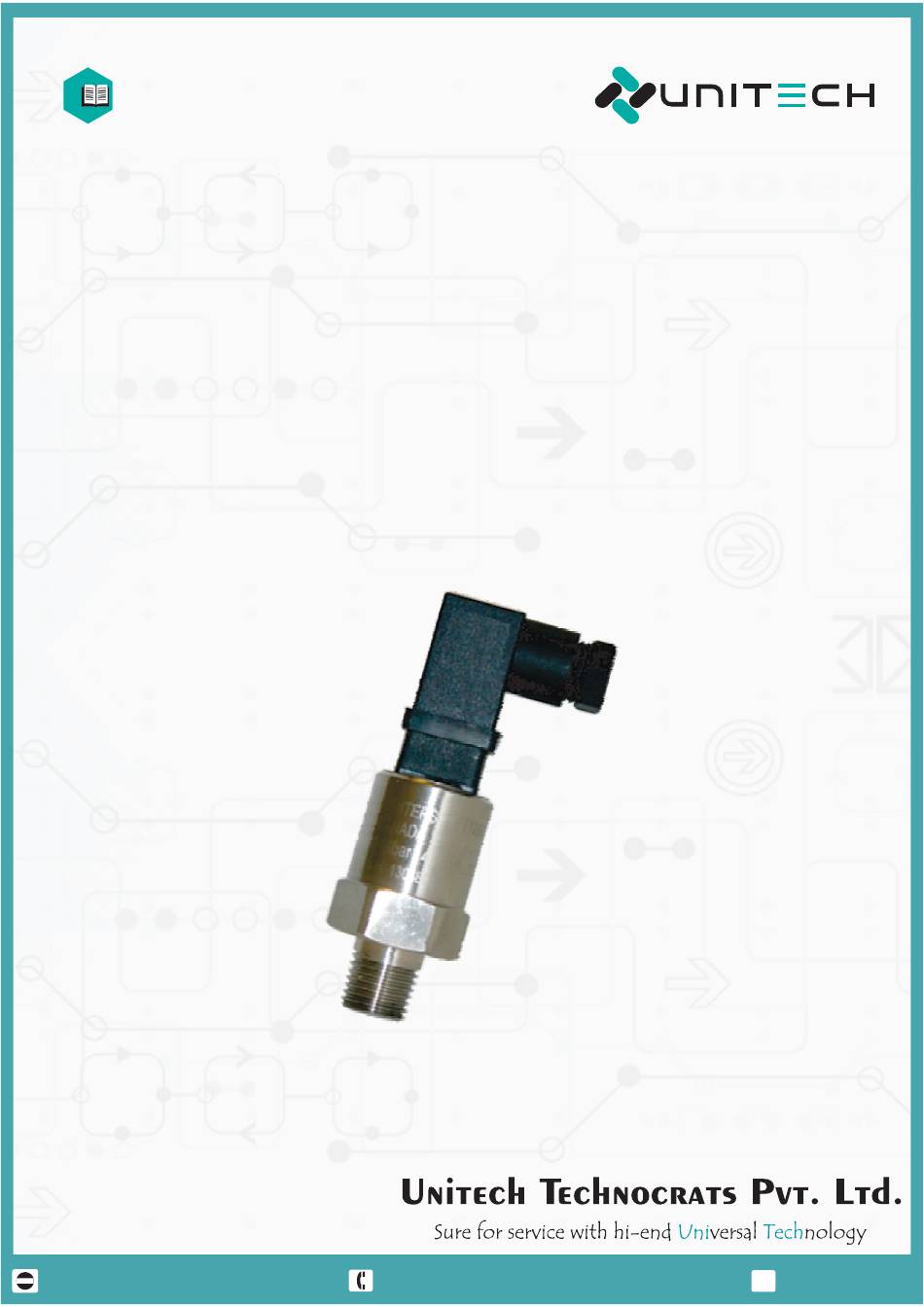

- Page 1 INSTRUCTION MANUAL Model No. : UT-9003 PRESSURE TRANSMITTER www.utplindia.in sales@utplindia.in +91 7046223333 , 9427301436...
- Page 2 PRESSURE TRANSMITTER UT-9003 PRE CAUTIONS, WARNING AND DISPOSAL ACTION WARNING Electrical Consideration / Precautions The controller is considered “rack and panel mounted equipment” per EN 61010-1, Safety Requirements for electrical equipment for Measurement, Control and Laboratory Use, Part 1: General Requirements. Conformity with 2/23/EEC Low Voltage Directive, requires the user to provide adequate protection against a shock hazard.
- Page 3 PRESSURE TRANSMITTER UT-9003 CONTENTS OVERVIEW ....................INTRODUCTION ..................SAFETY NOTES ..................NSTALLATION ........................................WIRING DIAGRAM www.utplindia.in sales@utplindia.in +91 7046223333 , 9427301436...
- Page 4 Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by UNITECH Instruments personnel. There is no warranty of damages or injuries caused by non-observance of the manual.
- Page 5 PRESSURE TRANSMITTER UT-9003 2. INSTALLATION Wiring Connection Anode (PIN1) Signal (PIN2) Instruments Pressure Sensor 2-wire current output wiring Direct wiring Red : 24V+ Green or Blue : current output Anode (PIN1) Common (PIN3) Signal (PIN2) Instruments Pressure Sensor 3-wire voltage output wiring...
