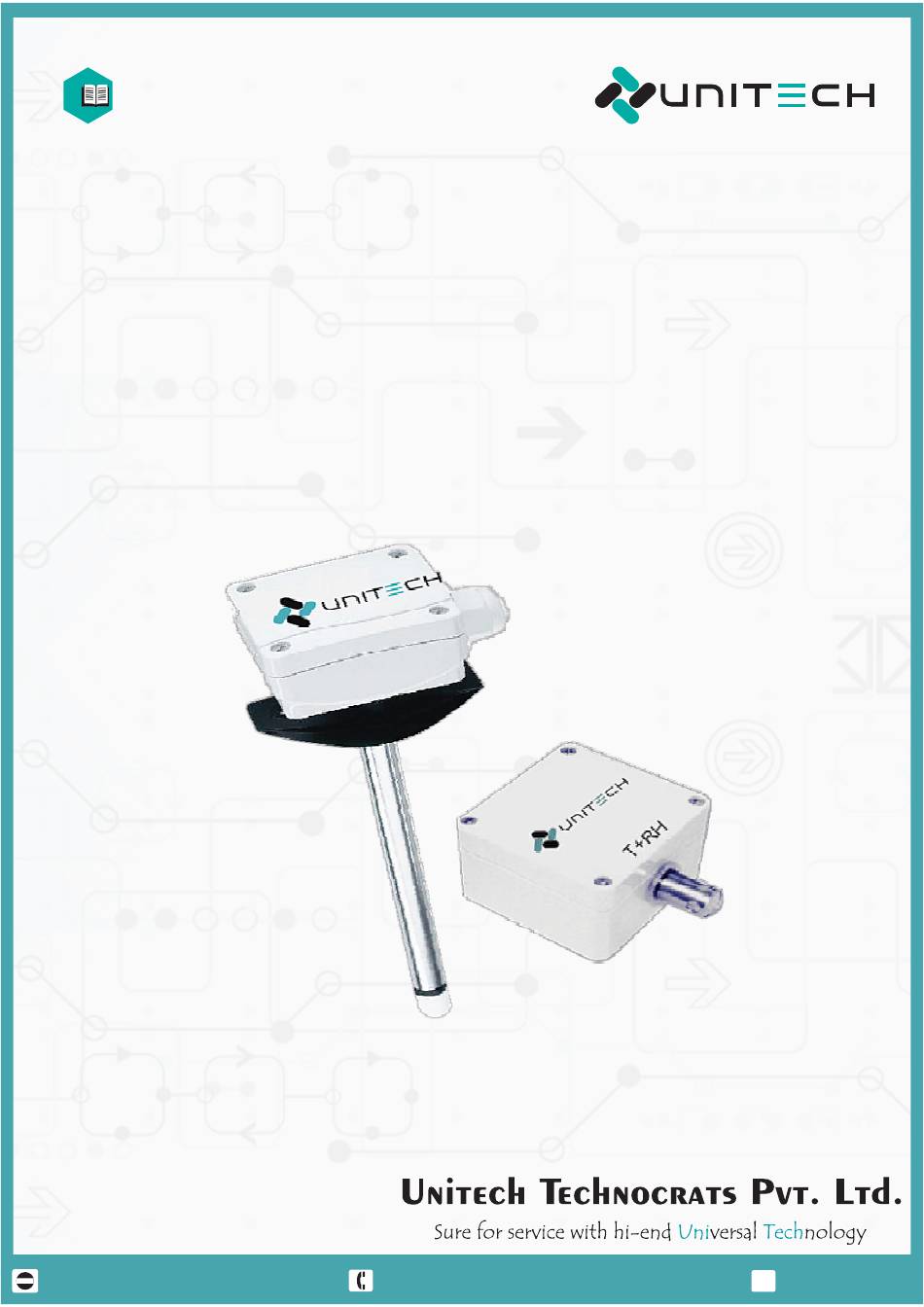

- Page 1 INSTRUCTION MANUAL Model No. : UT-1403 TEMPERATURE + RH TRANSMITTER www.utplindia.in sales@utplindia.in +91 7046223333 , 9427301436...
- Page 2 TEMPERATURE + RH TRANSMITTER UT-1403 PRE CAUTIONS, WARNING AND DISPOSAL ACTION WARNING Electrical Consideration / Precautions The controller is considered “rack and panel mounted equipment” per EN 61010-1, Safety Requirements for electrical equipment for Measurement, Control and Laboratory Use, Part 1: General Requirements. Conformity with 2/23/EEC Low Voltage Directive, requires the user to provide adequate protection against a shock hazard.
- Page 3 TEMPERATURE + RH TRANSMITTER UT-1403 CONTENTS OVERVIEW ....................INTRODUCTION ..................SAFETY NOTES ..................NSTALLATION ........................................MOUNTING EXTERNAL DIMENSION ........................................TECHNICAL SPECIFICATIONS ....................WIRING DIAGRAM www.utplindia.in sales@utplindia.in +91 7046223333 , 9427301436...
- Page 4 Mount Anywhere The UT-1403 product group is Process control instruments that must be panel mounted. The wiring terminals must be provided. the UT-1403 is environmentally hardened and, if suitably handled, can be mounted virtua -lly anywhere in plant or factory;...
- Page 5 TEMPERATURE + RH TRANSMITTER UT-1403 2. INSTALLATION Mounting Wall Mount Duct Mount External Dimension Duct Mount 100.0 Wall Mount 25.0 25.0 100.0 25.0 All dimensions are in mm CAUTION Installation Mounting Precautions The product can be mounted on tilted or horizontal panel using the mounting clamps supplied.
- Page 6 TEMPERATURE + RH TRANSMITTER UT-1403 Technical Specifications TECHNICAL SPECIFICATIONS Air and non-combustible gas Medium Range Temp : -20..60 *c & Humidity -0...100 % (Programable) Power Supply 24VDC Accuracy Temp : +/- 0.25 *c and humidity : +/- 1.7 % OP. Temperature Range -40 ~ 70°C.
- Page 7 TEMPERATURE + RH TRANSMITTER UT-1403 Wiring Diagram CAUTION TERMINAL DETAILS WIRING CONSIDERATION Shielded twisted pair wire is used for all analog I/P, Process sensors RTD, Thermo-couple, mV-mA DC, Volt DC, Linear input and Communication. 2 3 4 AILURE TO COMPLY WITH THESE INSTRUCTION MAY RESULT...
