Summary of Contents for Unitech UT-9001

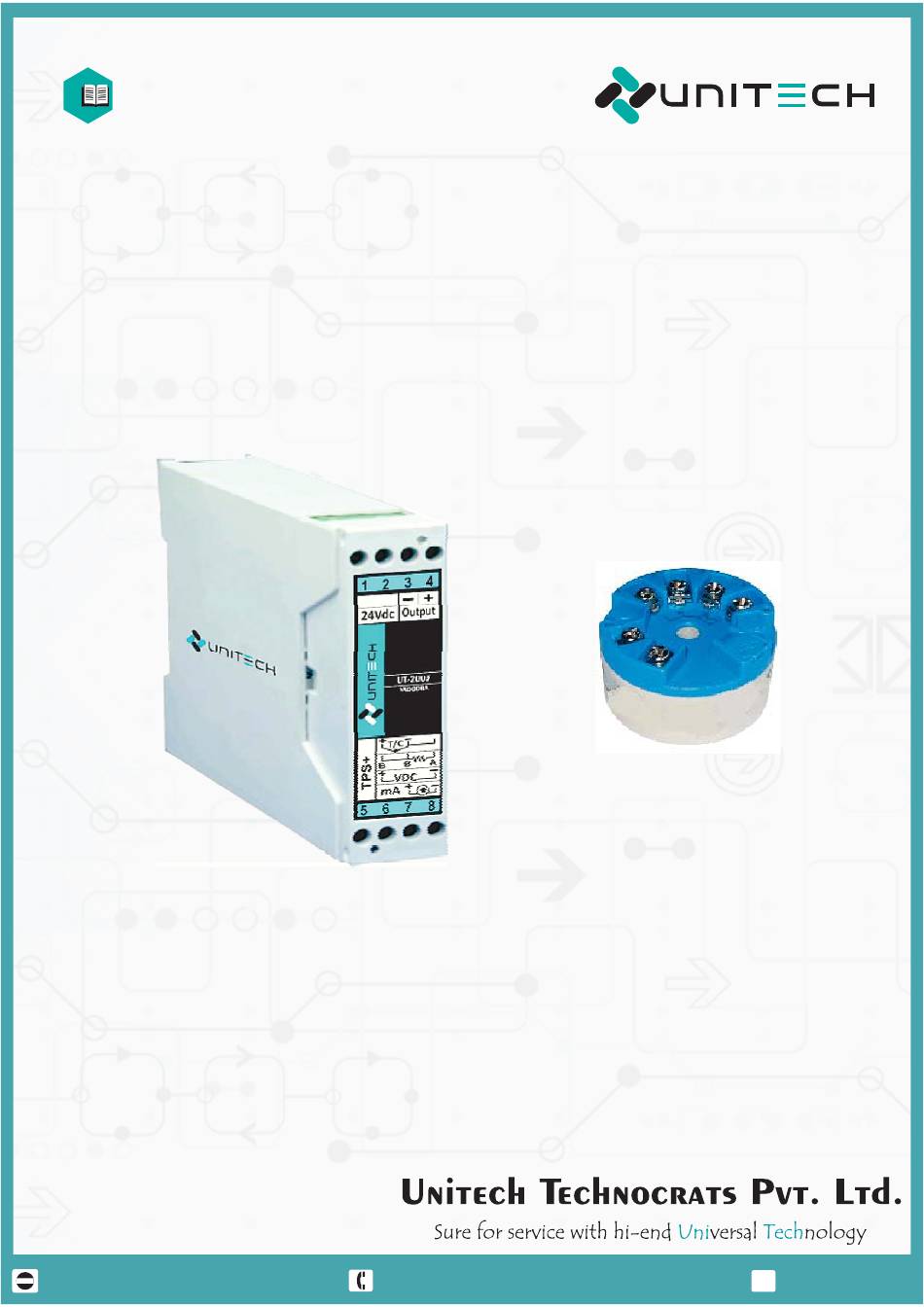

- Page 1 INSTRUCTION MANUAL Model No. : UT-9001 TEMPERATURE TRANSMITTER DIN MOUNT HEAD MOUNT www.utplindia.in sales@utplindia.in +91 7046223333 , 9427301436...
- Page 2 TEMPERATURE TRANSMITTER UT-9001 PRE CAUTIONS, WARNING AND DISPOSAL ACTION WARNING Electrical Consideration / Precautions The controller is considered “rack and panel mounted equipment” per EN 61010-1, Safety Requirements for electrical equipment for Measurement, Control and Laboratory Use, Part 1: General Requirements. Conformity with 2/23/EEC Low Voltage Directive, requires the user to provide adequate protection against a shock hazard.
-
Page 3: Table Of Contents
TEMPERATURE TRANSMITTER UT-9001 CONTENTS OVERVIEW ....................INTRODUCTION ..................SAFETY NOTES ..................NSTALLATION ........................................MOUNTING EXTERNAL DIMENSION ........................................TECHNICAL SPECIFICATIONS ....................WIRING DIAGRAM www.utplindia.in sales@utplindia.in +91 7046223333 , 9427301436... -
Page 4: Overview
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by UNITECH Instruments personnel. There is no warranty of damages or injuries caused by non-observance of the manual. -
Page 5: Installation
TEMPERATURE TRANSMITTER UT-9001 2. INSTALLATION DIN Mount Mounting T P U T P U Round Head Mount External Dimension DIN Mount Round Head Mount 1 2 3 4 OUTPUT LOOP24V 5 6 7 8 DIMENSION Height SIZE SIZE ROUND All dimensions are in mm... -
Page 6: Technical Specifications
TEMPERATURE TRANSMITTER UT-9001 Technical Specifications TECHNICAL SPECIFICATIONS K, J, R, S, T, E Pt-100, Pt-1000, Cu-53 [2 wire, 3 wire] Type Of Input Resistance 0 - 400 Ohms / 0 - 200 Ohms VOLTAGE [Analog] Linear : 0.5~2.5VDC, 1~5VDC, 0~10VDC + 0.25% of Full Scale... -
Page 7: Wiring Diagram
TEMPERATURE TRANSMITTER UT-9001 Wiring Diagram Round Head Mount CAUTION WIRING CONSIDERATION Shielded twisted pair wire is used for all analog I/P, Process sensors RTD, Thermo-couple, mV-mA DC, Volt DC, Linear input and Communication. AILURE TO COMPLY WITH THESE INSTRUCTION MAY RESULT... - Page 8 TEMPERATURE TRANSMITTER UT-9001 DIN Mount 1 2 3 4 OUTPUT CAUTION WIRING CONSIDERATION Shielded twisted pair wire is used for all analog I/P, Process sensors RTD, Thermo-couple, mV-mA DC, Volt DC, Linear input and Communication. AILURE TO COMPLY WITH THESE INSTRUCTION MAY RESULT...
