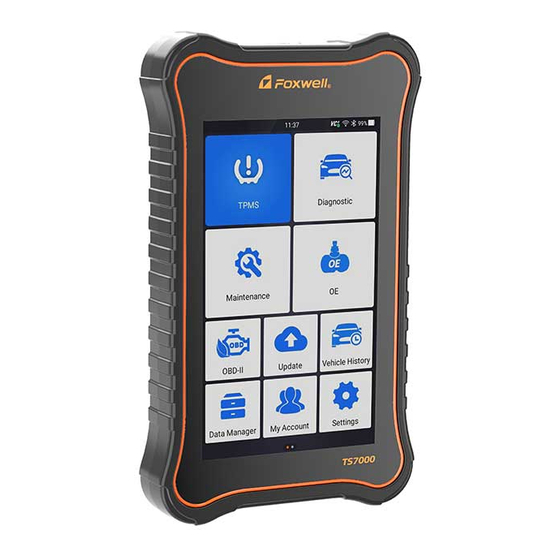

Foxwell TS7000 User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Trademarks

FOXWELL is trademark of Shenzhen Foxwell Technology Co., Ltd.

All other marks are trademarks or registered trademarks of their respective

holders.

Disclaimer

The information, specifications and illustrations in this manual are based on the

latest information available at the time of printing.

Foxwell reserves the right to make changes at any time without notice.

Visit our website at

www.foxwelltech.us

For Technical Assistance, send us email at

support@foxwelltech.com

Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0

Table of Contents

Need help?

Do you have a question about the TS7000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Foxwell TS7000

Page 1 Disclaimer The information, specifications and illustrations in this manual are based on the latest information available at the time of printing. Foxwell reserves the right to make changes at any time without notice. Visit our website at www.foxwelltech.us For Technical Assistance, send us email at support@foxwelltech.com...
Page 2: One-Year Limited Warranty
FOXWELL. 3 The customer shall bear the cost of shipping the product to FOXWELL. And FOXWELL shall bear the cost of shipping the product back to the customer after the completion of service under this limited warranty.
Page 3 If FOXWELL cannot perform repairs covered under this limited warranty within 30 days, or after a reasonable number of attempts to repair the same defect, FOXWELL at its option, will provide a replacement product or refund the purchase price of the product less a reasonable amount for usage.
Page 4 (the Consumer). This limited warranty gives the Consumer specific legal rights and the Consumer may also have other rights which vary from state to state. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 5: Safety Information
● Fuel, oil vapors, hot steam, hot toxic exhaust gases, acid, refrigerant and other debris produced by a malfunction engine can cause serious injury Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 6 And never leave a running engine unattended. ● Do not wear jewelry or loose fitting clothing when working on engine. ● Don't connect or disconnect the equipments while the ignition is on or the engine is running. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 7: Table Of Contents
9.1 V ......................40 EHICLE DENTIFICATION 9.1.1 Quick Scan ........................40 9.1.2 Control Modules ......................43 9.2 D ......................44 IAGNOSTIC PERATIONS 9.2.1 Read Codes ........................44 9.2.2 Clear Codes ........................47 Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 8 UTOMATIC PDATE 13.8 S ........................89 YSTEM ETTINGS 13.9 G ..........................89 ENERAL 13.10 U .................... 89 NINSTALL EHICLE OFTWARE 13.11 C ........................90 LEAR APP DATA 13.12 P ........................90 RINT ETTINGS Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 9 13.13 A ..........................92 BOUT 14 REMOTE SUPPORT ........................92 15 COVERAGE LIST ........................93 16 REMOTE KEY FREQUENCY MONITORING ................94 17 SENSOR INFORMATION ......................94 18 AUXILIARY TOOLS ........................95 Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 10: Using This Manual
Bold text is used to highlight selectable items such as buttons and menu options. Example: Select Diagnostic from the Home screen of the TS7000 application. 1.2 Symbols and Icons 1.2.1 Solid Spot Operation tips and lists that apply to specific tool are introduced by a solid spot.
Page 11: Introduction
Do not soak scanner as water might find its way into the scanner. 2 Introduction The brand new Android scan tool TS7000 series inherits the same Foxwell advantages in car fault diagnostic tech, such as multi manufacturer coverage, service functions and accurate test data, making it the perfect tool for busy garages or workshops, who need the latest technology at unbeatable value.
Page 12 USB Type-C Port - connects to wall plug to charge the scanner and can be used for data transfer. Figure 2-3 Back View Rear-Facing Camera - takes pictures of VIN number, faulty parts and plates and shoots test videos. Speaker – outputs audio. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 13 Operation System Android 9.0 Processor Quad-core, 1.3GHz Memory SSD Hard drive 32GB Camera 5 megapixel reat-facing Communication WIFI 802.11 b/g/n Wireless LAN interface Built-in Battery 5000mAh, Lithium-polymer battery, chargeable via 5V USB Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 14: Getting Started
3.1 Powering up the Scanner Before using the TS7000 applications (including updating the scanner), please make sure to provide power to the scanner. The unit operates on any of the following sources: Internal Battery Pack ●...
Page 15: Shutting Down The Scanner
2. Click the Power off to shut down or Reboot to restart. 3.3 Screen Layout of Home Screen After the scanner turning on, the screen show main menu of the application. Figure 3-1 Sample Home Screen Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 16 (OE number) at one time.. OBDII - leads to OBDII screens for all 10 generic OBD system tests. ● Update - leads to screens for Foxwell ID registration and updating the ● scanner. Vehicle History - leads to the record of vehicle tests, ●...
Page 17: Vehicle Identification
Auxiliary tools – more tools like camera and file browser. ● 3.3.2 Diagnostic Menu Touch Diagnostic at the TS7000 application menu, and the Diagnostic menu will display. The operations of the buttons of Diagnostic menu are described in the below table.
Page 18: Vehicle Connection
4.2 VIN Reading VIN button on the title bar is a shortcut for VIN reading menu, which includes Automatic Read, Manual Entry, eliminating the need for navigating through complicated car identification process. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 19 (VIN). To identify a vehicle by Automatic Read: 1. Select Diagnostic from home screen of the TS7000 application. 2. Click VIN and choose Automatic Read from the option list. 3. When the scan tool builds connection with the vehicle, the VIN number displays.
Page 20 4.2.2 Manual Entry Manual Entry allows to identify a vehicle by inputting VIN manually. To identify a vehicle by Manual Entry: 1. Select Diagnostic from home screen of the TS7000 application. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 21: Manual Selection
Figure 4-5 Sample Manual Entry Screen 4.3 Manual Selection Select vehicle brand you are to test, and two ways of getting to the diagnostic operations are available. Smart VIN ● Manual Selection ● Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 22 (VIN). To identify a vehicle by Smart VIN: 1. Select Diagnostic from home screen of the TS7000 application. 2. A screen with vehicle manufacturers displays. Select the area where the vehicle manufacturer from. A menu of all vehicle manufacturers displays.
Page 23 VIN characters, such as model year, and engine type. To identify a vehicle by manual vehicle selection: 1. Select Diagnostic from home screen of the TS7000 application. 2. A screen with vehicle manufacturers displays. Select the area where the vehicle manufacturer is from.
Page 24: Vehicle History
To identify a vehicle by Vehicle History: 1. Select Diagnostic from home screen of the TS7000 application. 2. Select History button at the top of the diagnostic page and the diagnostic records will display.
Page 25: My Account
4. Click the Diagnostic button at the bottom bar to go to vehicle test page. Figure 4-11 Sample History Record Screen 5 My Account This section introduces user account registration, login, device activation and other information. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 26: Registration
● Figure 5-1 Sample My Account Screen 5.1 Registration You are allowed to create a Foxwell ID with the built-in client. To register with built-in client: 1. Press My Account or Update from home screen, the user login page will show, then press Free registration button to register an account.
Page 27 Figure 5-2 Sample Update Client Main Screen 2. Enter the User Name (use one of your existing mail addresses as user name), and press Send Code button for get a verification code, Foxwell will send a 4-digit verification code to the email you just entered.
Page 28 4. “The account has been created successfully” message will appear if you registered successfully. Figure 5-5 Sample Registration Done Screen 5. The serial number will show after registration. Click Submit to activate the product or press to back. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 29: Sign In
Figure 5-6 Sample Product Activation Screen 5.2 Sign in Press My Account or Update from home screen, the user login page will show, enter your FOXWELL ID and password, and press Sign in button to sign in. Figure 5-7 Sample Sign in Screen...
Page 30 1. Press OK button to activate product and press Cancel to back. Figure 5-8 Sample Product Activation Screen 2.Click Submit to continue the activation and press to give up activation. Figure 5-9 Sample Product Activation Submit Screen Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 31: M Yaccount
Figure 5-10 Sample activate success Screen 5.3 My Account My Account option allows you to check and modify or complete your account information including user name, e-mail, telephone, address and so Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 32: M Yproducts
To send feedback and suggestions about Foxwell products: 1. Press My Account from home screen. 2. Press Feedback and Suggestions option to show Feedback page, there are two options--Diagnosis Feedback and General Feedback. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 33 Select the type of error and some necessary content and problem description or attachments. Press Save button to save the feedback. Or press Email button to send if you have an email account. Figure 5-14 Sample Feedback Edit Screen Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 34: Update
The scanner can be updated to keep you stay current with the latest development of diagnosis. This section illustrates how to register and update your scan tool. You can register both on Foxwell website or by the built-in update client.
Page 35: Vci Manager
1. Click VCI Manager application on home screen. 2. After clicking Unbind a VCI dongle, it will display whether to unbind the current VCI. When clicking OK, it will execute unbind, rebind, and refresh the vehicle. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 36 Figure 7-1 Sample Unbind a VCI dongle Figure 7-2 Sample Unbinding Confirmation Prompt Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 37 Figure 7-3 Sample Unbinding Current VCI Figure 7-4 Sample Bind New VCI Successfully Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 38: Firmware Update
Figure 7-5 Sample Rescan Vehicle Software 8 Firmware Update This application allows you to update the firmware of TS7000. Figure 8-1 Sample Firmware Update Screen To update the firmware: 1. Click the Update application on the TS7000 home screen. 2. Check and download the firmware package.
Page 39: Diagnosis
ECU information on controllers installed, perform special functions such as actuation and coding, and perform vehicle services and maintenance on Asia, European, China and USA vehicle brands. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 40: Vehicle Identification
To perform an automatic system scan: 1. Press Quick Scan option to start. 2. To pause the scan, press the Pause button on the screen. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 41 Figure 9-3 Sample Quick Scan Complete Screen 4. Press Report to create an overview of installed control units and their system status, or press Save to save the report. Press Erase to clear the information. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 42 5. When running auto scanning, you can press Pause and select the system you would like to test. When the scanner has established connection with the vehicle, the Function Menu displays. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 43: Control Modules
It is useful for technicians who are familiar with the vehicle specifications. To select a system to test: 1. Press Control Modules from the menu and a controller menu displays. Figure 9-7 Sample Control Modules Screen Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 44: Diagnostic Operations
Present/Permanent/Current codes stored in a control module are used to help identify the cause of a trouble or troubles with a vehicle. These codes have occurred a specific number of times and indicate a problem that requires repair. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 45 DTC set. It is a good function to help determine what caused the fault. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 46 Figure 9-11 Sample DTC Help Screen 2. Slide up and down to view additional information when necessary. 3. Press Save to store DTC information. Press to print the information if need be. Press to exit. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 47: Clear Codes
There are two ways to select the PID data of control module: All Data ● Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 48: All Data
All Data menu lets you view all live PID data from a selected control module. To view all live PID data: 1. Press Select ALL for select all live PID data and press Deselect ALL to deselect all items. Figure 9-14 Sample Function Menu Screen Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 49 Figure 9-16 Sample Live Data Screen Name Description To Top To move a data line to the top of Data List screen To select some data line to the top of Data List Batch Top screen Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 50: Custom List
3. To deselect an item, tap the line again. Alternatively, tap SELECT ALL or Deselect ALL to select or deselect all items at once. 4. Press OK to complete the selection, and all selected items display. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 51: Record Data
Data Record is for recording the running data of the current control module. To Record Data 1. Press Record button to record all selected live data, then it will show the record time and frames. Figure 9-19 Sample Live Data Record Screen Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 52: Active Test
Make sure the components to be tested are in good condition and correctly mounted. NOTE Available tests depend on the control module under test and the vehicle itself. To start a test: Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 53: Ecu Information
To read ECU information: 1. Press ECU Information from Select Diagnostic Function menu. Figure 9-21 Sample Function Menu Screen 2. A screen with detailed information of the selected control module displays. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 54 Press to exit. 4. Press Save to store ECU information screen and Press OK to complete save or Press Cancel to give up. Figure 9-23 Sample ECU Information save Screen Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 55: Complaints
9.3 Complaints This function lets the customers sending back the complaints or feedback to Foxwell server with one touch during the diagnostic process and allows for quicker and more accurate fixes for diagnostic troubles and bugs. To make a complaint: Click during the diagnostic process when face a failure.
Page 56: Maintenance
Figure 9-25 Sample Compliant Sheet Screen 3.Press Upload to send to Foxwell server directly when connecting with Wifi or Press Save to save the complaint and send to us later.(The saved complaint can be found at Data Manager--Data Record menu.) Press Email to share or PDF to print.
Page 57: Oil Reset
Deactivate/Activate SBC/EPB systems - allows to deactivate brakes ● for further service or maintenance work on brake systems or activate brakes when service or maintenance work on brake systems are completed. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 58 Use proper tools to avoid the risk of body injuries of mechanics and ● technicians and damage to the brake system. Make sure the vehicle is properly blocked after deactivation of the ● systems. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 59: Battery Replacement (Brt)
When the motion range is not known, the ECU simply has no idea where to set the throttle. The ECU must know the full range of motion of the throttle in order for it to properly control the engine. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 60: Steering Angle Sensor (Sas) Calibration
After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 61: Abs Bleeding
11 TPMS Service Operations The TPMS application is used to check the TPMS sensor conditions, program the Foxwell sensor, perform the TPMS Relearn procedure and basic TPMS diagnostic functions. Vehicle Identification 11.1 This section illustrates how to use the scanner to identify the specifications of the vehicle under test.
Page 62 8. If it takes too long to get the VIN code, press Cancel to stop and input the VIN manually. Or if failed to identify the VIN, please input the VIN manually or click Cancel to quit. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 63 To identify a vehicle by VIN Scanning: 1. Select TPMS from home screen of the TS5000 application. 2. Click button and scan the VIN number on the nameplate of the car. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 64 Manual Selection identifies a vehicle by making several selections according to certain VIN characters, such as brand, model and year, . To identify a vehicle by manual vehicle selection: 1. Select TPMS from home screen of the TS7000 application. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 65 Click Enter button to get the TPMS function page. 11.1.4 TPMS Service Screen Layout The TPMS service typically include three functions: Trigger/ Programming/Diagnosis/ Learn Help Figure 11-6 Sample TPMS Service Screen Layout Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 66: Trigger Operations
FR (front right), RR (rear right), RL (rear left) and SP (spare, if any). Wheel with a feedback icon, red or green vertical rectangle, indicates sensor trigger has been finished. Refer to Table 11-1 for details. Icon Result Description Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 67 The programming function is used to program the sensor data to the Foxwell sensor T10 and replace the faulty senor (poor battery life or malfunction). The TS7000 is easy to use with a proven efficiency and guaranteed accurate results. There are four options available when programming Foxwell sensor T10 using the Display Tablet: Manual Create, Clone by Activation, Automatic Create (1-16), Clone by OBD.
Page 68 – displays the retrieved sensor IDs by OBD NOTE: Programming function will only work with Foxwell sensor T10. Currently, there are two models available: Clamp-in Sensor and Snap-in Sensor, both with two types, one with 433MHz frequency, and one with 315MHz frequency.
Page 69 Figure 11-9 Sample ID Input Screen Place the proper Foxwell sensor T10 near the top right of the Display Tablet to start programming. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 70 Figure 11-10 Sample Manual Create Function Screen If multiple sensors were detected, will pop up message to remind remove the excess sensors. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 71 11.2.2 Clone by Activation This function allows user to bypass OBD II and automatically write in the retrieved original sensor data to the Foxwell sensor T10. It is used after the original sensor is triggered. To perform Clone by Activation, user needs active the installed sensor firstly, if succeed, the sensor ID will display.
Page 72 Then put the Foxwell T10 sensor that need to be programmed close to the device 0-20cm and sensors that not need to be programmed beyond 100cm. Figure 11-13 Sample Clone by Activation Function Screen 11.2.3 Automatic Create (1-16) This function is designed to program the Foxwell sensor T10 by applying random IDs created according to the test vehicle, when it is unable to obtain the original sensor ID.
Page 73 2. Select the specific wheel on the screen. 3. Tap the Automatic Create functional button on the screen. 4. Place the proper Foxwell sensor T10 near the top right of the Display Tablet to write the new created sensor ID into the Foxwell sensor T10.
Page 74 Figure 11-15 Sample Copy by OBD Function Screen Place the proper Foxwell sensor T10 near the top right of the Display Tablet, and tap OK to start programming the saved sensor information to the Foxwell T10. The programmed sensor ID will appear on Column 2 of the table.
Page 75: Learn Help
The Learning method of TPMS mainly includes: OBD relearn, Automatic relearn, Static relearn, Clone Sensor. Figure 11-6 Sample Learn Help Screen 11.3.1 OBD Relearn Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 76 (the tire pressure light is off). NOTE: Different models have different OBD relearn methods. Please read the relearn procedure carefully before performing the relearn function. 11.3.2 Automatic Relearn Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 77 (the tire pressure light is off). NOTE: Different models have different Automatic relearn methods. Please read the relearn procedure carefully before performing the relearn function. 11.3.3 Static Relearn Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 78 Use one of the following method to copy according to the actual situation. 1. Copy by activation 2. Copy by manually input the sensor IDs. (notice the data format is decimal or hexadecimal) Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 79: Data Manager
Data Manager menu let you review stored screenshots and test reports, playback recorded live data and other saved files. Typical menu options include: Image ● ● Data Playback ● Data Record ● ● Report ● TPMS Report Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 80: Image
12.1 Image Image option leads to screens for review of stored screenshots. In case a failure of TS7000 application or the Android system occurs, please just take a screenshot and send it to our team to help with the troubleshooting.
Page 81: Pdf Report
PDF icon on the test screen, add a description and press OK button to save. 12.2.1 How to Create a PDF Report To create a PDF report: 1. Press Data Manager from home screen of TS7000 diagnostic application. 2. Press Report from Data Manager. 3. Press any reports saved.
Page 82 Figure 12-4 Sample of Report edit Screen 5. If press PDF, the PDF review screen will be displayed. Press Print to print the report or press Email to share the report. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 83: Data Playback
Figure 12-5 Sample of Report edit Screen 12.2.2 Review PDF Report To review the PDF reports: 1. Press Data Manager from home screen of TS7000 diagnostic application. Press PDF and all available PDF files will be displayed. Long press the screen to edit all PDF files like Rename or Delete the files.
Page 84: Settings
Selecting Unit opens a dialog box that allows you to choose between Imperial customary or metric units of measure. To change the unit setup: 1. Press Settings from home screen of the TS7000 diagnostic application. 2. Press Unit and available unit system display. 3. Select a unit system.
Page 85: Module Sorting
1. Press Settings from home screen of the TS7000 diagnostic application, and then select Font Size. 2. Select your preferred font size, then press Confirm to change, or press Back to give up. 13.4 Module Sorting This option allows you to modify the display order of other modules except the diagnostic module in the home screen of TS7000 diagnostic application.
Page 86 2 seconds, and then drag it up and down. The final position of the module is the same as the display order of the home screen. Figure 13-3 Sample Drag the Update module to the front of the Maintenance module Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 87 OK to apply the current changes, click Cancel to discard the current changes. Figure 13-5 Sample Click OK to apply the current changes Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 88: Sort Tiles
This option allows you to change the sort for Brand of vehicles. There are two sorting methods available by alphabet or by frequency of use. To change sort 1. Press Settings from home screen of the TS7000 diagnostic application, and select Sort Tiles. 2. Select your preferred sort order.
Page 89: Automatic Update
This option allows you to uninstall the vehicle software installed in the scanner. To uninstall a vehicle software: 1. Tap Settings application on home screen of TS7000. 2. Tap the Uninstall Vehicle Software option on the option list. 3. Choose the vehicle software you want to delete or choose Select All.
Page 90: Clear App Data
PC network or Wi-Fi. To setup the printer connection: 1. Tap the Settings application on home screen of TS7000. 2. Tap the Printing Settings option on the option list. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 91 Figure 13-10 Sample Print Service Manager Screen 4. Select Mopria Print Service. 5. Choose the right printer. 6. Select a available printer, then press PRINT TEST PAGE button at the right-bottom. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
Page 92: About
NOTE 1. Please make sure the printer and the TS7000 in the same Wi-Fi or Network when printing. 2. If Mopria Print Service driver can’t workable for your printer, please download the driver to work for your printer on Print Service Manager.
Page 93: Coverage List
Desk. About how to set the tool of default, please refer to 12.5 Remote control. To use QuickSupport for to remote control: 1. Click the Remote Control icon on the main menu of the TS7000 to start TeamViewer QuickSupport. Press for return.
Page 94: Remote Key Frequency Monitoring
Figure 15-1 Sample Coverage list Screen 16 Remote key frequency monitoring This section illustrates how to check RF Remote Keyless Entry (key FOB) with the trigger tool.The TS7000 tests 315MHz and 433MHz key fobs only, and checks only for a signal present. 17 Sensor information This section helps to check own sensor information.
Page 95: Auxiliary Tools
Figure 17-1 Sample Sensor information Screen 18 Auxiliary tools More auxiliary tools can be supported like camera and file browser. Smart Diagnostic & TPMS Scanner TS7000 User's Manual V1.0...
