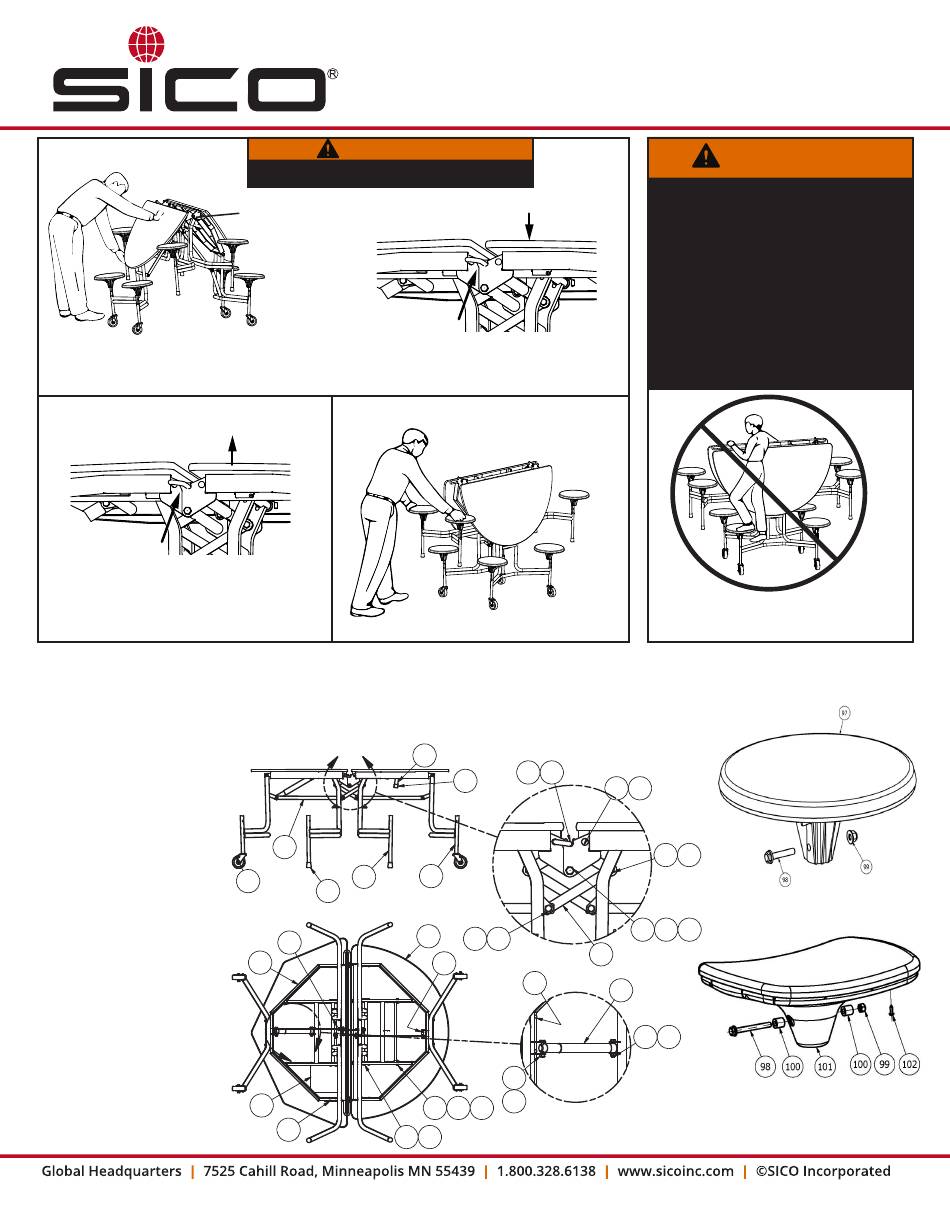

SICO GRADUATE TABLE Operating Instructions And Parts List

To Open:
2.
Lift on side of table top while pressing in at
center. As table starts to open push top down
to safety stop position.
To Fold:
Lift center lock arm and hold against table top.
Raise table with continuous upward motion.
ITEM DESCRIPTION Maintenance: Oil pivot points every six months. Wash tops with soap and water.
1 TOP FRAME WELD
When Ordering:
2 DRIVE RIVET
All Parts - Indicate table serial No. (on frame, near center of table), height and length.
3 RETAINER CAP - LEG
Tops: Indicate Laminate & Armor-Edge® color, size Legs: Indicate table height.
4 WLD, PIVOT STO BAR
5 MECHANICAL STRUT
6 TENSION BAR
For parts or pricing contact your local dealer or SICO Customer Service.
7 X-BAR
8 LOCK ARM
9 NUT PUSH WASHER
10 FLANGE WASHER
11 BOLD M12X1.75X30MM
12 NOT STOP M12X1.75MM
13 SHOULDER WASHER
14 PANEL FASTENER
15 CAP SCREW M10X1.5X30MM
16 CAP SCREW M10X1.5X35MM
17 NUT STOP M10X1.5MM
18 CAP SCREW M10X1.5X60MM
19 CAP SCREW, .38-24x1.25
20 WASHER, 3/8" SAE
21 NUT STOP, .38-24 NF
22 GLIDE
23 CAP VINYL 1.00X.38
25 TABLE WARNER
26 LUBRICATION LABEL
33 RIVET, BLAND
34 SPACER
90 TABLE TOP W/ARMOR-EDGE®
93 CASTER, 4IN W/THREAD GUARD
94 CENTER LEG, WELDMENT
95 OUTER LEG, WELDMENT

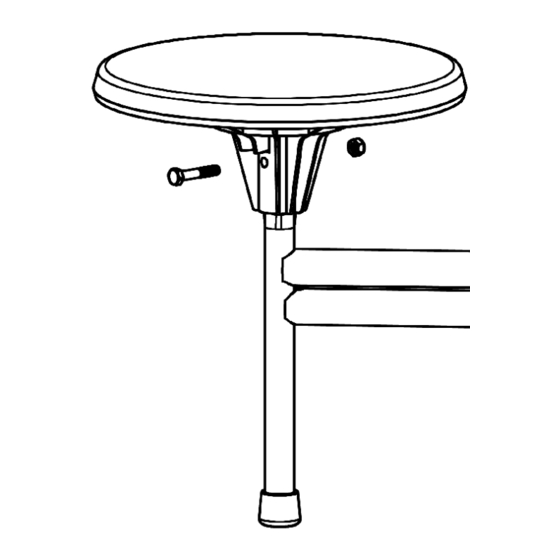

97 STOOL
98 SCREW, FLANGE HEAD
99 LOCK NUT,FLANGE
100 SPACER
101 ACCENT GUARD
102 SCREW
Operating Instructions and Parts List
WARNING
Keep fingers away from top edge!
1.
Lift stop bar (#8 below) out of latch on leg.
3.
Lift center lock arm to release it, then press
table top down flat.
To Roll:
2.
Push from end of table, not from side.
F
6
94
93
22
25
1
G
35
26
3
1.
To gain space for passing
through doorway or for storage,
raise stop bar (inside the frame).
4
9 8
23
95
90
17 16
7
DETAIL F
34
2
17
18
19 20 21
DETAIL G
33
GRADUATE TABLE
WARNING
Failure to follow warnings may result
in serious injury or death.
Never let children move table.
Never store where unattended chil-
dren are present.
To avoid table tipping over, push
from end of table. DO NOT push
from side.
Avoid debris on floor.
NEVER
let children sit
or climb on folded table
14 13
15 17
11 10 12
5
18 17
284895 Rev. C
