SICO TUC Series Operation Manual

2

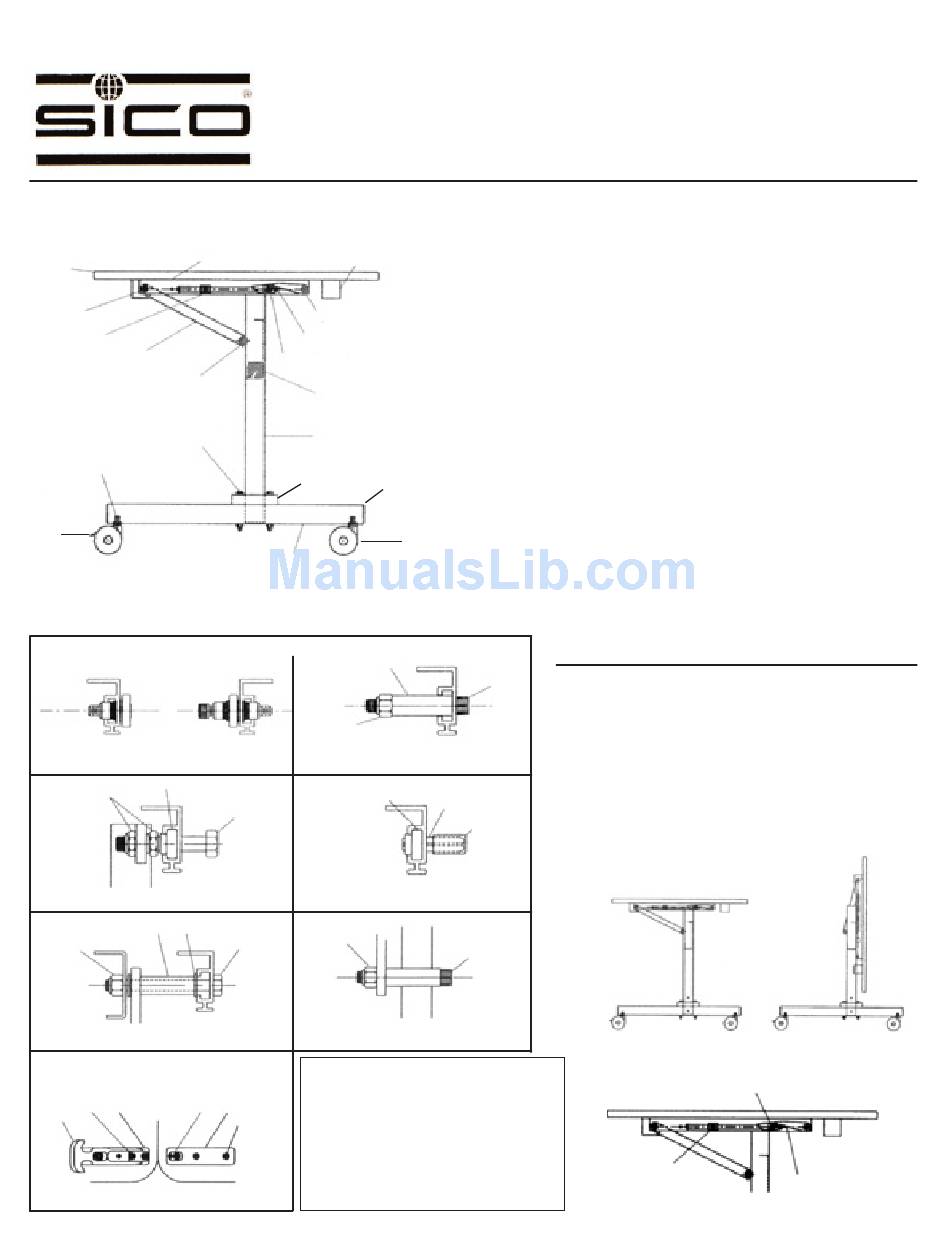

See Detail E
See Detail D
22
See Detail F
14,15,16
56
59
IMPORTANT: Always provide Serial No. when ordering parts.
10 (far side)
A
Detail
8
6
C
Detail
20
31
30
E
Detail
Unit-to-Unit Connector
(optional)
86 88
84
G
Detail
21,5
71,1
See Detail A
See Detail B
See Detail C
36
3
35
60,48
13 (near side)
30
32
30
26
SICO INCORPORATED
P.O. Box 1169
Minneapolis, Minnesota 55440, USA
85 87
89
Phone: (952) 941-1700
FAX: (952) 941-6737
Customer Service: 1-800-424-0796
SICO Inc. reserves the right to substitute materials or
make changes, if materials are not available or such
changes improve the product.
Model No. TUC-..... (Rectangular)
Item
No. Description
1 Rivet, 1/4" dia. x 3/8"
2 Top
3 H-Support Assembly
5 Rivet, 1/4" dia. x 1/2"
6 Nut, Lock, Thin, 3/8-24
7 Pin, Spring, 3/8" x 1-1/2"
8 Block, Slide
10 Latch, without lock
13 Latch, with lock
14 Washer, Flat, 3/8"
15 Nut, Lock, 3/8-24
16 Capscrew, Hex-Head, 3/8-24
x 3-3/4"
20 Spacer
21 Beam
22 Lever, Top Support
25 Capscrew, Socket-Head, 5/16-18
37
x 2-1/4"
26 Capscrew, Hex-Head, 5/16-18
x 3"
58
30 Nut, Lock, 5/16-18
31 Washer, Flat, 5/16"
32 Capscrew, 3/8-24 x 2-1/4"
33 Nut, Lock, 5/16-18, Thin
20
25
B
Detail
8
7
83
D
Detail
25
F
Detail
MULTIAPP TABLE
Item
No.
35
36
37
48
48
56
58
59
60
71
80
81
83
84
85
86
87
88
89
90
Operation
To Fold the Table for Storage
On each end of the table, push the slide block all the
way toward the latch (until the latch releases).
Carefully fold the table.
To Unfold the Table for Use
Lift the bottom edge of the table top until the latch
engages.
For added security, use a hex wrench
to tighten the latch's lock screw.
Unfolded
Lock Screw
Push slide block
to release latch.
Printed in USA (02-02)
Description
Plug, Tube, 1" x 1"
Label
Plug, Tube, 1" x 2"
Caster Beam Assembly,
24" (includes casters)
Caster Beam Assembly,
30" (includes casters)
Nut, Flat, 1/2"
Caster, 3"
Caster, Locking, 3"
Beam, Caster
Stiffener (Half Round only)
Liner, Grommet (optional)
Cap, Grommet (optional)
FlexCap, 3/8"
Latch (optional)
Keeper (optional)
Screw, #10 x 7/8"
(optional)
Plate, Keeper (optional)
Plate, Latch (optional)
Rivet, 1/4" (optional)
Latch Assembly (complete)
(optional)
Folded
Latch
Latch
Part No. 114666 (Rev. B)
