INSTALLATION
INSTRUCTIONS
BEFORE YOU BEGIN ...
IMPORTANT: It takes two people to safely assemble
the system – do not try to do it by yourself.
Please read and understand the instructions before you
start to assemble.
Installing the bed in a finished recess is similar to hanging
a steel door – if the frame is true and square, you are unlikely
to have any problems. Make sure that all measurements are
correct and that the recess is plumb, level, and square.

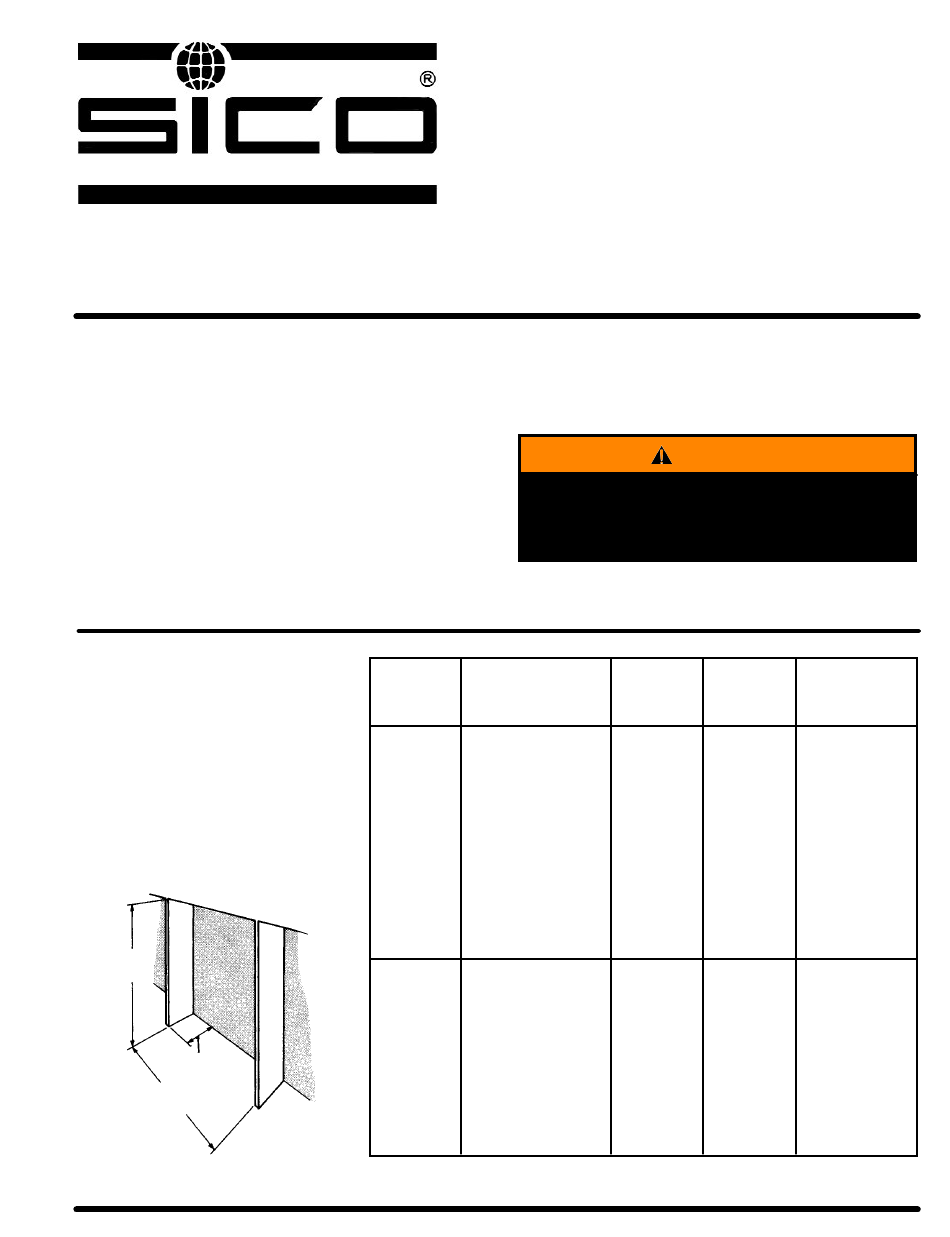

VERIFY SIZE OF RECESS
IMPORTANT: Before you start to
install the bed, refer to the table and
verify the size of the recess opening.
The SICO bed is designed to be in-
stalled in either a 22" or an 18-5/8"
deep recess. However, if heavy blan-
kets, quilts, or other bedding will be
used, or if pillows will be stored on
the bed, SICO recommends setting
up the bed at the 22" depth only.
Opening
Height
Recess
Depth
Opening
Width
Printed in USA (04/05)
BED STYLE
BED SIZE
END FOLD
Twin Regular
Twin Extra Length
Double Regular
Double Extra Length
Queen
King
SIDE FOLD
Twin Regular
Twin Extra Length
Double Regular
Double Extra Length
Queen
® SICO and Room Maker are registered trademarks of SICO Incorporated.
ROOM MAKER
If you have any problems when installing,
contact SICO Customer Service at
1-800-424-0796
WARNING
This bed must be securely anchored to the floor.
Failure to follow instructions may cause the
baseplate or hinges to release, which could cause
serious injury.
OPENING
HEIGHT
83-1/2"
(2121 mm)
88-5/8"
(2251 mm)
83-1/2"
(2121 mm)
88-5/8"
(2251 mm)
88-5/8"
(2251 mm)
88-5/8"
(2251 mm)
49"
(1245 mm)
49"
(1245 mm)
64"
(1626 mm)
64"
(1626 mm)
70-1/2"
(1791 mm)
WALL BED
OPENING
RECESS
WIDTH
DEPTH
41"
18-5/8"or 22"
(1041 mm)
(473 or 559 mm)
41"
18-5/8" or 22"
(1041 mm)
(473 or 559 mm)
56"
18-5/8" or 22"
(1422 mm)
(473 or 559 mm)
56"
18-5/8" or 22"
(1422 mm)
(473 or 559 mm)
62-1/2"
18-5/8" or 22"
(1588 mm)
(473 or 559 mm)
79"
18-5/8" or 22"
(2007 mm)
(473 or 559 mm)
77"
18-5/8" or 22"
(1956 mm)
(473 or 559 mm)
83"
18-5/8" or 22"
(2108 mm)
(473 or 559 mm)
77"
18-5/8" or 22"
(1956 mm)
(473 or 559 mm)
83"
18-5/8" or 22"
(2108 mm)
(473 or 559 mm)
83"
18-5/8" or 22"
(2108 mm)
(473 or 559 mm)
Part No. 102472 Rev. C
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the ROOM MAKER Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SICO ROOM MAKER Series

Summary of Contents for SICO ROOM MAKER Series

  • Page 1 (2108 mm) (473 or 559 mm) Width Queen 70-1/2" 83" 18-5/8" or 22" (1791 mm) (2108 mm) (473 or 559 mm) Printed in USA (04/05) ® SICO and Room Maker are registered trademarks of SICO Incorporated. Part No. 102472 Rev. C...
  • Page 4 Bed Raised Bed Raised Rear Wall 22" (559mm) A - Bed Frame Width Cabinet Depth D - Finished Recess Opening Width Rear Wall Bed Lowered " 22" (559mm) C - Extends Beyond Recess (54mm) Cabinet Depth...

  • Page 5: Tools Required

    TOOLS REQUIRED • • • Tape measure • Ratchet wrench Phillips screwdriver Rotary hammer drill and 1/2" bit – optional • • Pencil • 9/16" and 3/4" deep Large flat-blade screwdriver • sockets Masonry bit (if attaching • • Carpenter's level Utility knife to masonry floor or wall);...
  • Page 6 If heavy blankets, quilts, or other bedding will be used, or if pillows will be stored on the bed, SICO recommends setting up the bed at the 22" depth ONLY. 1. Check that the baseplate fits into the recess: 18-1/4"...

  • Page 7: Floor Anchoring

    (9) anchors for the king to secure the baseplate to bed. Use anchors appropriate to the floor. the type of floor: SICO recom- 3-1/2” Drill 1/2” dia. mends Red-Head #HN-1230 1/2 x Minimum hold into floor 3"...
  • Page 8 Metal Deck, and Miscellaneous 1-800-328-6138. Baseplate Floors Thin Concrete NOTE: Use anchors appropriate to the type of floor: SICO Wood Floor recommends the Star 3/8 x 6" round-head toggle bolts which are supplied with the bed (or their equivalent). Use six (6) anchors per bed, use nine (9) anchors for the king bed.
  • Page 9 FLOOR ANCHORING – If you encounter any problem or a unique floor Joists construction, contact SICO If you encounter a joist at the Customer Service at Baseplate anchoring location, use the following 1-800-328-6138.
  • Page 10 ATTACH BED HALVES TOGETHER (King Bed Only) King bed frames are shipped in Hardware for assembling the frame halves and two halves, which must be bolted attaching the center plate together using a center plate. are in the bag marked 1.
  • Page 11 ATTACH POWER PACKS 1. If you have purchased a bed with no face, you should install the bed face panel now. See the Recess instructions in the small parts package marked “101866.” 2 ft 2. Move the bed frame about 2 ft from the recess opening, aligned with the recess.
  • Page 12 ATTACH POWER PACKS (continued) 5. Attach each power pack to its cam It makes no difference by inserting a hinge pin and which side of the bed each securing with a cotter pin. spring is installed on – even if they are different NOTE: The spring is coated with colors.
  • Page 13 ATTACH POWER PACKS (continued) 6. Remove the nuts and washers Carriage from the carriage bolts in the Bolts baseplate (12 bolts in a king-size baseplate, 8 bolts in others). 7. Slide the bed frame approximately 1" into the recess. 8. With one person inside the recess and one outside, lift the bed to its vertical position.
  • Page 14 ALIGN BED FRAME IN RECESS 1. Attach the handles to the bed frame, using two 1/4" dia. x 2-1/2" machine screws in each handle. 2. Position the bed frame so there is an equal gap (about 1/4") be- tween the frame and the recess on both sides, at the bottom.
  • Page 15 ALIGN BED FRAME IN RECESS (continued) 5. Tighten the nuts on the two REAR Rear carriage bolts, to secure each Carriage Bolts hinge weldment to the baseplate. 6. If the top gap (between the bed Step 6: frame and the recess header) is Equal gaps not even: here.
  • Page 16 ATTACH BOXSPRING AND MATTRESS 1. Turn the boxspring on edge. Using #8 x 3/4" screws, attach the mattress strap to the side framing member (wood) on the underside of the boxspring, about 9" in from the foot end. Keep the Boxspring strap snug.
  • Page 17 ATTACH HEADBOARD/PADBOARD ASSEMBLY 1. Attach the padboard to the head- board, using the pre-attached Headboard screws and hinges. The padboard is shipped with the linkage mounting brackets in- stalled for use in a 22" recess. If installing the bed in an 18-5/8" recess, move the brackets to the Shown for 22"...
  • Page 18 If the bed doesn’t operate operates properly. properly after the above adjustment, contact SICO NOTE: After the bed has been Customer Service. When in use for some time, it will calling, please have the gradually settle to the floor.

  • Page 19: Parts List

    Order by Item Number. Specify “for Room Maker Wall Bed.” Always provide the serial number of the bed when ordering parts. SICO Incorporated reserves the right to substitute materials or make changes if materials are not available and such changes improve the product.
  • Page 20 PARTS LIST SIDE-FOLD BED STANDARD BED Detail of Padboard Hinge KING BED On early models only.
  • Page 21 MAINTENANCE AFTER INSTALLATION NOTE: The ideal bed requires a DISTINCT PULL to come out of the wall, after 10 degree of movement (approximately 10” outward movement of bed face handle). Properly adjusted beds should “hold” or “float when the bed face is at a 45 degree angle. 1.
  • Page 22 Phone [61] (2) 4388-5100 Fax: [34] (91) 358-9264 Fax: [61] (2) 4389-1341 E-mail: sales@sistemas-sico.com E-mail: sales@sicosp.com.au Japan Asean Countries/ China SICO Nippon Co., LTD Korea & India SICO-SST Japan SICO Asia PTE LTD. China Phone [81] (3) 3791-2277 Singapore 118535...
