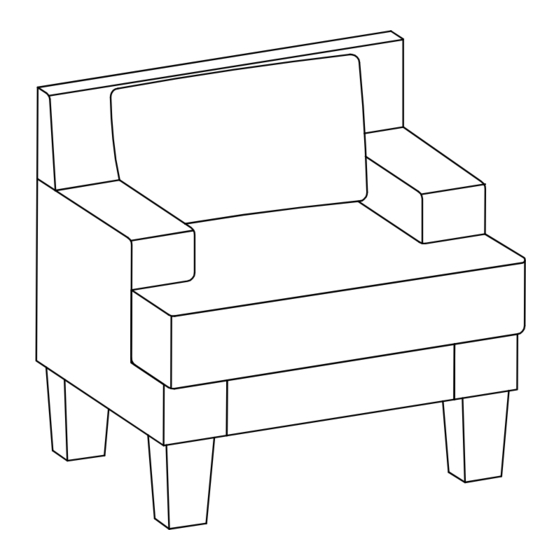

E440C CHAIR
Back Panel
1 pc
Seat Cushion
1 pc
Flat Washer
Φ18mm x Φ9mm
4 pcs
Bolt
5/16 " x 40mm
4 pcs
ASSEMBLY INSTRUCTION
Left Panel
1 pc
Bottom Panel
1 pc
1 pc
Flat Washer
Φ18mm x Φ9mm
12 pcs
Bolt
5/16 " x 75mm
4 pcs
Right Panel
1 pc
Front Rail
1 pc
Spring Washer
Φ9mm
16 pcs
L-Metal Plate
4 pcs
1
Back Rest Cushion
1 pc
Wooden Leg
4 pcs
Bolt
5/16 " x 20mm
8 pcs
Allen Wrench
1 pc
Advertisement
Table of Contents
Related Manuals for Ethan Home E440C
Summary of Contents for Ethan Home E440C
- Page 1 ASSEMBLY INSTRUCTION E440C CHAIR Back Panel Left Panel Right Panel Back Rest Cushion 1 pc 1 pc 1 pc 1 pc Front Rail Wooden Leg Seat Cushion Bottom Panel 1 pc 1 pc 1 pc 1 pc 4 pcs Spring Washer...

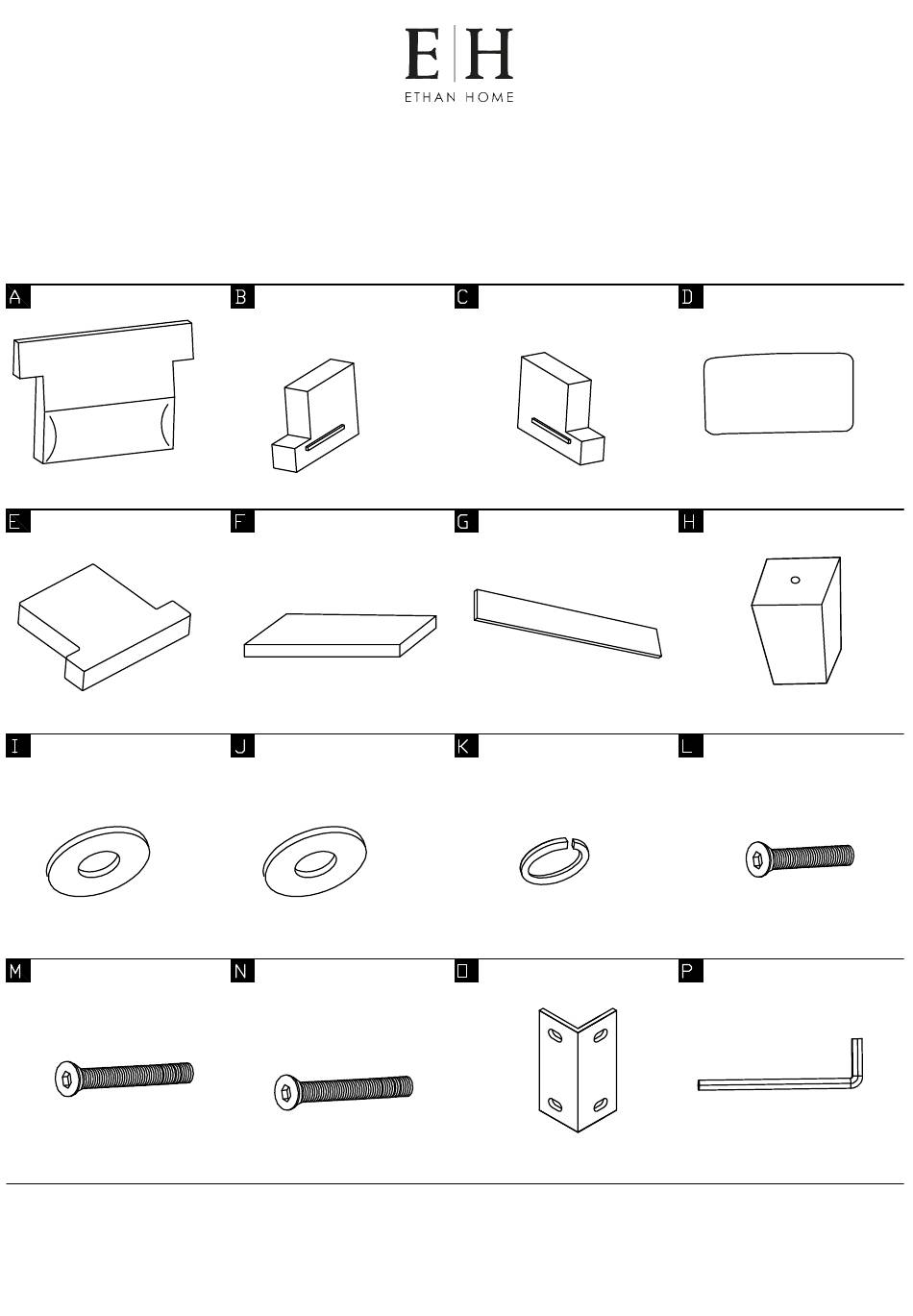

- Page 2 E440C CHAIR This page lists all the contents included in the box. Please take the time to identify the hardware as well as the individual components to this product. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
- Page 3 E440C CHAIR Assemble Front Rail (G) with Right Panel (C) & Left Panel (B) using L-Metal Plate (O), Flat Washer (J), Spring Washer (K) & Bolt (L) then fastened using Allen Wrench (P) as illustration shown in the circled drawing, then put Bottom Panel (F) to the Chair.
