Ethan Home 9067 Assembly Instruction

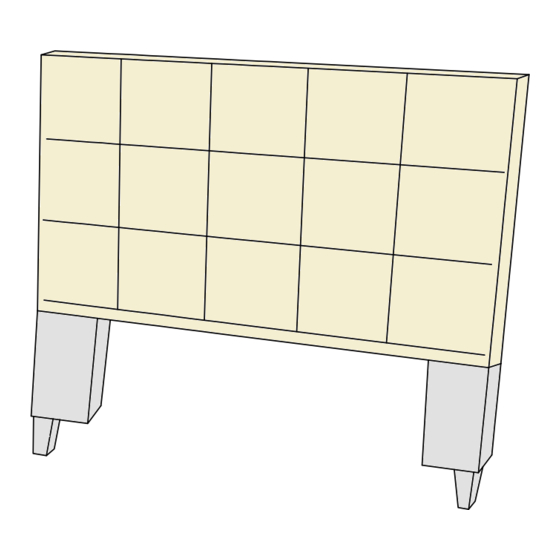

TUFTED FULL & QUEEN BED - HEADBOARD

Headboard

1 pc

Bolt

1/4 x 65mm

10 pcs

ASSEMBLY INSTRUCTION

Left Wooden

Right Wooden

Frame

1 pc

Flat Washer

Lock Washer

12 pcs

Wooden Leg

2 pcs

Allen Wrench

1 pc

This page lists all the contents included in the

box. Please take the time to identify the

hardware as well as the individual components

to this product. As you unpack and prepare for

assembly, place the contents on a carpeted or

padded area to protect them from damage.

Bolt

1/4 x 75mm

2 pcs

Slate

2 pcs

Table of Contents

Need help?

Do you have a question about the 9067 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION TUFTED FULL & QUEEN BED - HEADBOARD Headboard Left Wooden Right Wooden Wooden Leg Bolt Frame Frame 1/4 x 75mm 1 pc 1 pc 1 pc 2 pcs 2 pcs Bolt Flat Washer Allen Wrench Slate Lock Washer 1/4 x 65mm 10 pcs 12 pcs...
Page 2 TUFTED FULL & QUEEN BED - HEADBOARD Step 1: Attached left Wooden Frame (B) and right Wooden Frame (C) to the Headboard (A) use Bolt (F), Lock Washer (H) and Flat Washer (G) on holes of Slates (J). Turn the Allen Wrench (I) in Bolt (F). Step 2: Attached Wooden Leg (D) to the Wooden Frame (B) (C) use Bolt (E), Lock Washer (H) and Flat Washer (G) on both of holes.
Page 3 ASSEMBLY INSTRUCTION TUFTED FULL & QUEEN BED - FOOTBOARD & SIDE RAILS Wooden Leg Support Leg Footboard Side Rails Wooden Slat 1 pc 2 pcs 26 pcs 2 pcs 4 pcs I-Iron Pipe Flat Washer Lock Washer Single-Sided Double-Sided Cover Cover 1 pc 26 pcs...
