  • Page 1 INSTALLATION MANUAL...

  • Page 2: Product Description

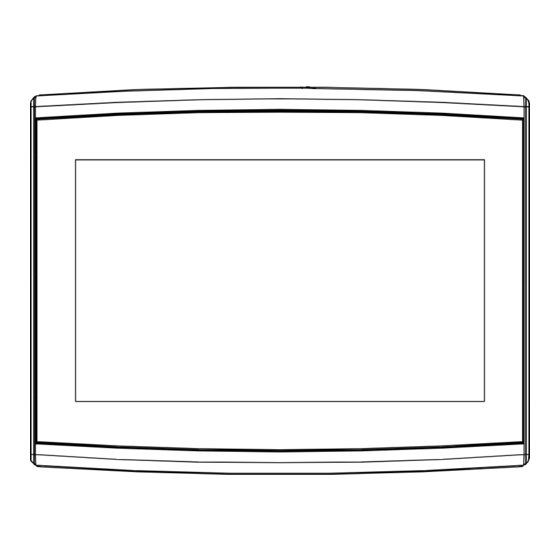

    1. Product description The FARMNAVIGATOR G7 series includes four models: G7 Ezy, G7 Plus, G7 Iso and G7 Terminal featuring a 7 “display, parallel guidance software, manual and automatic boom sections control, WiFi connectivity*, Auto-Steering kit compatibility*, and ISOBUS compatibility**.

  • Page 3: Power Supply Connection

    Video IN Video camera RCA female jack 2.3 USB, video camera and Auto-steering connection (Using the cable included in G7 Plus, G7 Iso and G7 Terminal) Video IN Video camera RCA female jack Ethernet Auto-steering RJ45 jack...

  • Page 4: Bracket Assembly

    2.4 ISOBUS connection (Using the cable included in G7 Iso and G7 Terminal) IN-CAB ATTENTION: The In-cab cable is not waterproof. Do not use outside the tractor cab. 3. Bracket assembly 3.1 To install...
  • Page 5 3.2 To uninstall 4. Operations Main Menu Work View Explore the map Rotate the map Zoom the map 4.1 Other gestures Scroll page Select...

  • Page 6: All Models

    4.4 Buttons on map Create and manage All models guidelines All models Create a field To set the headland All models area G7 Plus Start/Stop G7 Iso autosteering G7 Terminal G7 Ezy Save mark All models Nudge control All models...

  • Page 7: Safety Information

    5.1 Simplified EU declaration of conformity Hereby, AvMap Srl, Viale Zaccagna 6, 54033 Carrara (MS), Italy declares that the radio equipments in the following table are in compliance with Directive 2014/53/EU. G7 Plus P3MJ52WWAM, P3MJ52TWAM G7 Ezy P3MJ52WBAM, P3MJ520BAM, P3MJ520BTU, P3MJ520BCF, P3MJ520BAR...

  • Page 8: Technical Specifications

    ● Transmitting frequency range: 2400 - 2483 MHz; ● Maximum transmitting power: 1 mW (or 100 mW*); ● Maximum power consumption: 1.5 A @ 12 V. *G7 Plus, G7 Iso, G7 Terminal **G7 Iso, G7 Terminal AvMap Srl Viale Zaccagna, 6 54033 Carrara (MS), Italy www.avmap.it...
