Serial port (Console)
An DB9 connector for the serial port. This port has a
cover that you need to remove to access the port.

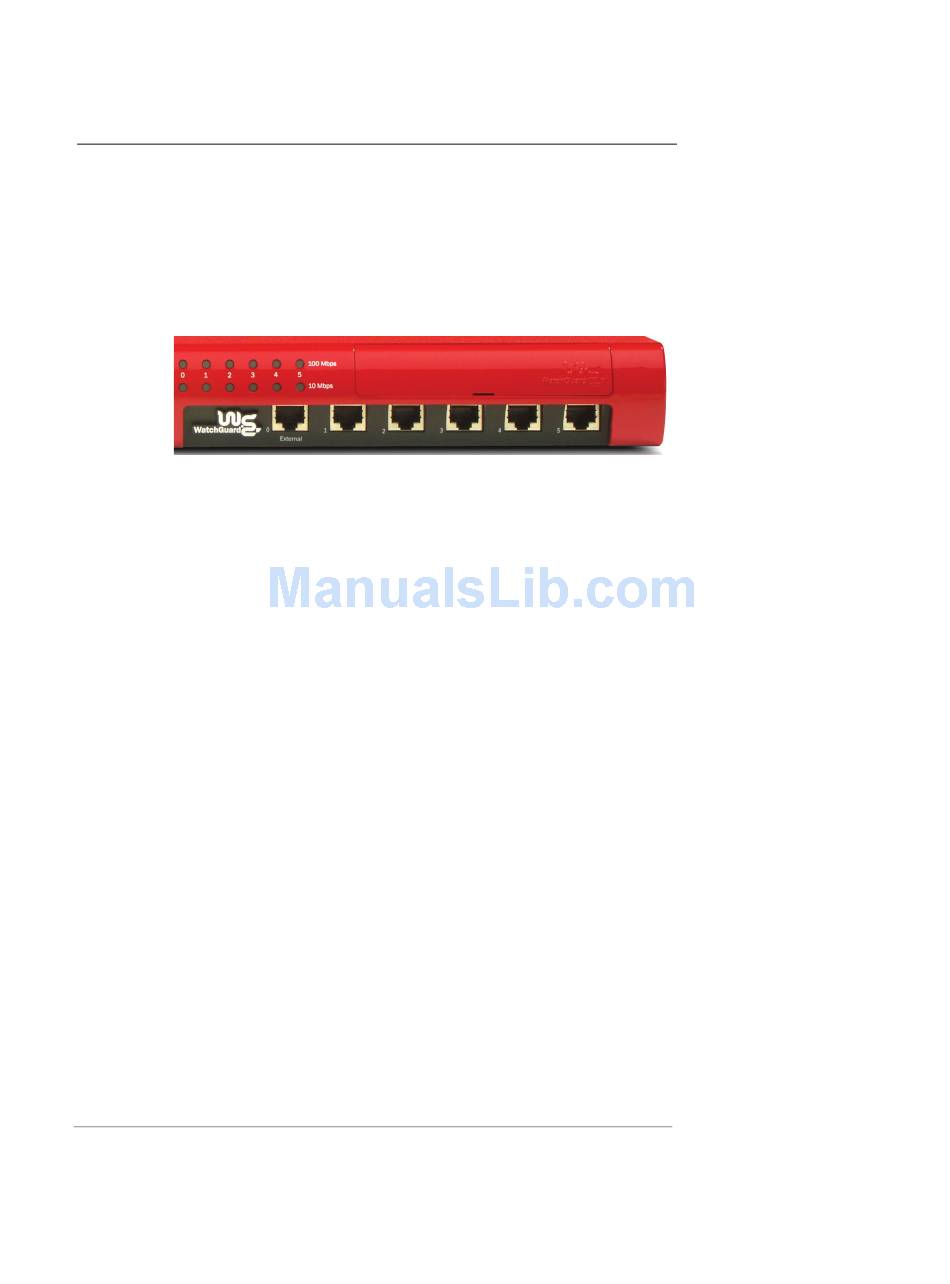

The photograph below shows a close-up of the right side of the
indicator panel. From the left, the indicators and connections
are as follows.
Interface ports
The six ports have standard RJ45 connectors and are
labeled External (0), 1, 2, 3, 4, and 5. Each port has a
corresponding LED located above the interface ports.
Interface ports 2, 3, 4, and 5 are inactive.
LED
The six pairs of LEDs are labeled 0, 1, 2, 3, 4, and 5,
and they correspond to the interface ports below.
The LEDs show the link and connection speed of the
interface. When the interface runs at 100 Mbit, the top
LED is green. When the interface runs at 10 Mbit, the
bottom LED is green.
Hard Drive Bay
The hard drive bay is used to install the hard disk. This
hard disk contains the SSL VPN Gateway software. For
hard disk installation instruction, see "Installing the
Hard Drive" on page 16.
