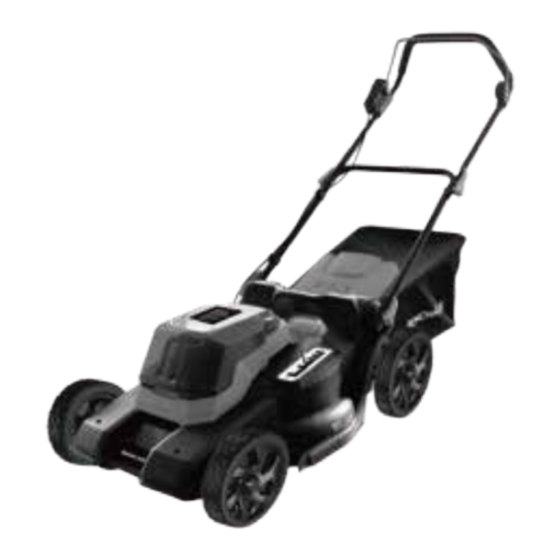

Benchmark 5125-025 Manual

19” 40v max brushless lawn mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

19" 40V MAX
BRUSHLESS LAWN MOWER
3 Year Limited Warranty on battery and charger
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
GY225805
Uses two 20V Max lithium-ion batteries that deliver an initial battery voltage
(measured without a workload) of 40 volts. Nominal voltage is 36V.
WEAR CSA APPROVED
EYE PROTECTION
Includes 2 (4Ah) batteries & 1 dual charger
5 Year Limited Warranty on tool
WEAR EAR
PROTECTION
Item # 5125-025
WEAR A
FACE MASK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5125-025 and is the answer not in the manual?

Questions and answers

Phil
May 4, 2025

How do you remove mulching plate

User image 68176c8c350af
-1

Related Manuals for Benchmark 5125-025

Summary of Contents for Benchmark 5125-025

  • Page 1 19” 40V MAX BRUSHLESS LAWN MOWER Item # 5125-025 Includes 2 (4Ah) batteries & 1 dual charger 5 Year Limited Warranty on tool 3 Year Limited Warranty on battery and charger READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE.

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS 40V BRUSHLESS LAWN MOWER Voltage 40V (2 x 20V) No Load No load 3000 RPM Cutting width 17.3" (440 mm) Deck width 19" (483 mm) Cutting heights 6 positions from 1-1/5"- 3.15" (30-80 mm) Grass Collection Capacity 50 L (13.2 gallons) Weight 33.5 lbs (15.2 kg) BATTERY AND CHARGER...

  • Page 3: Table Of Contents

    5125-025 40V MAX BRUSHLESS LAWN MOWER TABLE OF CONTENTS .................. 1 Product Specifications Table of Contents ..................2 General Safety Warnings ................3 Lawn Mower Safety ..................4-5 Maintenance & Storage ................. 5 Battery Pack & Charger Safety ..............6-8 Battery Pack Recycling .................

  • Page 4: General Safety Warnings

    GENERAL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations.

  • Page 5: Lawn Mower Safety

    5125-025 40V MAX BRUSHLESS LAWN MOWER LAWN MOWER SAFETY SAFETY WARNINGS This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.

  • Page 6: Maintenance & Storage

    Stop the cutting blade(s) if the product has to be tilted for transportation when crossing surfaces other than grass, and when transporting the product to and from the area to be mowed. 10. Never operate the product with defective guards, or without safety devices, for example deflectors and/or grass catchers, in place.

  • Page 7: Battery Pack & Charger Safety

    5125-025 40V MAX BRUSHLESS LAWN MOWER BATTERY PACK & CHARGER SAFETY BATTERY SAFETY INSTRUCTIONS WARNING: Only use the charger supplied with this kit to charge the 20V Li-ion batteries for this tool. Charging any other batteries may damage the charger and possibly cause serious injury.
  • Page 8 11. Do not disassemble the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted. Ensure fresh air and seek medical assistance in the event of discomfort. 12. Always remove battery pack from your tool when you are assembling parts, making adjustments, cleaning, or when not in use.

  • Page 9: Battery Pack Recycling

    5125-025 40V MAX BRUSHLESS LAWN MOWER 15. Do not operate the charger with a damaged cord or plug, which could cause a short circuit and electric shock. If damaged, immediately discontinue use. Replace the charger with the identical unit as listed in the Product Specifications in this manual.

  • Page 10: Safety Symbols

    SAFETY SYMBOLS WARNING: Please read all of the safety and operating instructions carefully before using this lawn mower. Please pay particular attention to all sections of this User Guide that carry warning symbols and notices. Some of the following symbols may be used on this tool.
  • Page 11 5125-025 40V MAX BRUSHLESS LAWN MOWER Warning! Danger. Inspect the area where the product is to be used and remove all objects which can be thrown Read the operator’s manual by the product. If objects are hidden while operating stop the product WARNING! Beware of electric and remove the object.
  • Page 12 Beware of sharp blades. Blades Remove plug from the power continue to rotate after the motor source immediately if the power cord is damaged or cut. device before maintenance. Crossed out garbage can. Batteries and battery packs should not be GO –...

  • Page 13: Know Your 40V Brushless Lawn Mower

    5125-025 40V MAX BRUSHLESS LAWN MOWER KNOW YOUR 40V BRUSHLESS LAWN MOWER Foam Grip Bail Lower Handlebar Safety Key Control cord and clips Grass 6 Position Height Adjustment Lever Rear Wheel Front Wheel Dual Charger 5350-024 Replacement 5Ah battery 5350-012...

  • Page 14: Assembly

    ASSEMBLY UNPACKING Unpack all parts and lay them on a flat, stable surface. Remove all packing materials and shipping devices if applicable. Make sure the contents are complete and free of any damage. If you find that parts are missing or show damage do not use the lawn mower but contact Customer Service @ 1-866-349-8665.
  • Page 15 5125-025 40V MAX BRUSHLESS LAWN MOWER UPPER HANDLE BAR Align the upper handlebar to the lower handlebar and ensure the foam handle is pointed up when viewed from behind. Pass the bolts through the mounting holes of handles (Fig. 2).

  • Page 16: Checking The Battery Charge Status/Assembly & Operating

    CHECKING THE BATTERY CHARGE STATUS The level of charge remaining in the battery can be checked by using the battery LED power indicator that is contained on the end of the battery. NOTE: The battery charge remaining may be checked while the battery is installed in the tool with the ON/OFF switch turned OFF.
  • Page 17 5125-025 40V MAX BRUSHLESS LAWN MOWER Turn the battery (2) upside down and slide it onto the charger. NOTE: Make sure the grooves (3) in the sides of the battery slide over the matching tabs on the charger (4) until the battery latch “clicks” into place.

  • Page 18: Operation

    OPERATION INSTALLING THE BATTERY PACKS Open the battery compartment cover. Unplug the safety key (1) (Fig. 8). Remove the discharged battery packs by pressing downward on the battery release button and sliding the battery pack backward until it is removed from the battery compartment (Fig.
  • Page 19 5125-025 40V MAX BRUSHLESS LAWN MOWER FIG. 9 FIG. 10 GRASS BAG WARNING: Do not attempt to use the product without the grass bag attached when collecting grass - danger of flying objects! before removing the grass bag! Attach the grass bag. Always carry the grass bag by its carry handle.
  • Page 20 GENERAL OPERATION Check the product, its battery pack and charger as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. Double check that accessories and blade are properly fixed. Check the battery status.
  • Page 21 5125-025 40V MAX BRUSHLESS LAWN MOWER Slowly push the mower forward. for mowing lawns is straight lines along one of the sides. This will keep the rows even and ensures that all the lawn is cut without missing any spots.

  • Page 22: Maintenance

    MAINTENANCE WARNING: the safety key and let the mower cool down before performing inspection, maintenance and cleaning work! Remove debris after each use and before storage. Regular and proper cleaning will help ensure safe use and prolong the life of the mower. Inspect the mower before each use for worn and damaged parts.
  • Page 23 5125-025 40V MAX BRUSHLESS LAWN MOWER DANGER: If the blade is not torqued properly, it could become loose and be thrown from the lawn mower and seriously hurt or kill the operator or bystanders. NOTE: Replace this blade after 50 hours of mowing or 2 years whichever is sooner regardless of condition.

  • Page 24: Exploded View

    EXPLODED VIEW...

  • Page 25: Parts List

    5125-025 40V MAX BRUSHLESS LAWN MOWER PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the brushless lawn mower. Any attempt to repair or replace electrical parts on this lawn mower may create a safety hazard unless repairs are performed by a qualified technician.
  • Page 26 Key # Part # Part Name Quantity 2.15 3100810201039001 Battery pack under bracket 3118920101049001 Inserting seat 2.16 3417820101027001 Internal wiring1 2.17 2.18 3422910101027001 Carbon brush line1 2.19 3422710101032001 Microswitch 392000101030001 Washer 2.20 3418830301027001 Internal wiring3 2.21 2.22 3419510501027001 Internal wiring5 36010112 Male terminal 2.23...
  • Page 27 5125-025 40V MAX BRUSHLESS LAWN MOWER Key # Part # Part Name Quantity 3.23 3252200101103001 Connecting rod buckle-1 3.24 3122570101053001 Baseplate 3122580201031001 9" wheel 3.25 3.26 3222580201020001 Rear axle shaft 3122570701049001 Left fixed seat 3.27 33SBAQA005200101 Screw 3.28 3252200401053001 Handrail retaining plate 3.29...
  • Page 28 Key # Part # Part Name Quantity 4.18 36010101 Female terminal 4.19 3422580101027001 Cable 4.20 3150000201103001 Line buckle 36010109 Male terminal 4.21 36040101 Double hole male terminal sleeve 4.22 36040103 Single hole male terminal sleeve 4.23 Lower Push Rod Assembly 3252200101138001 Screw pin 3152200101098001...

  • Page 29: Warranty

    WARRANTY BENCHMARK BRUSHLESS LAWN MOWER WARRANTY If this Benchmark tool fails due to a defect in material or workmanship within five years from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. 3 years for the battery and the charger.
  • Page 30 Includes 2 batteries & 1 charger 5 Year Limited Warranty on tool 3 Year Limited Warranty on battery and charger 5125-025 BENCHMARK TOOLS CANADA Made in China ST. JACOBS, ONTARIO N0B 2N0 © 2023 Home Hardware Stores Limited CUSTOMER SERVICE/TECH SUPPORT...
