Benchmark 5125-016 Manual

40v maxbrushless lawn mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

40V MAX BRUSHLESS
GY225502
WEAR CSA APPROVED
EYE PROTECTION
5125-016k EnProdManual P.indd 1
LAWN MOWER
Includes 2 batteries & 1 charger
5 Year Limited Warranty on tool
3 Year Limited Warranty on battery and charger
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
Uses two 20V Max lithium-ion batteries that deliver an initial battery voltage
(measured without a workload) of 40 volts. Nominal voltage is 36V.
WEAR EAR
PROTECTION
WEAR A
FACE MASK
2020-12-17 2:09 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5125-016 and is the answer not in the manual?

Questions and answers

Richard
May 20, 2025

Grinding noise when pushing mower. No noise when use selfpropel but moves slow.

0
1 comments:
Mr. Anderson
May 24, 2025

A grinding noise when pushing the Benchmark mower (part number 5125-016) could be caused by debris or damage in the wheels or drive system. The manual advises removing debris after each use and inspecting for worn or damaged parts before each use, which suggests that foreign objects or wear might cause such noise.

The mower moving slowly in self-propel mode could be due to issues with the self-propelling mechanism, such as the self-propelling lever not being fully engaged or internal damage. If the self-propelling bar is not held properly or components are damaged, it may not move at full speed.

This answer is automatically generated

0
Jennifer Oak
June 20, 2025

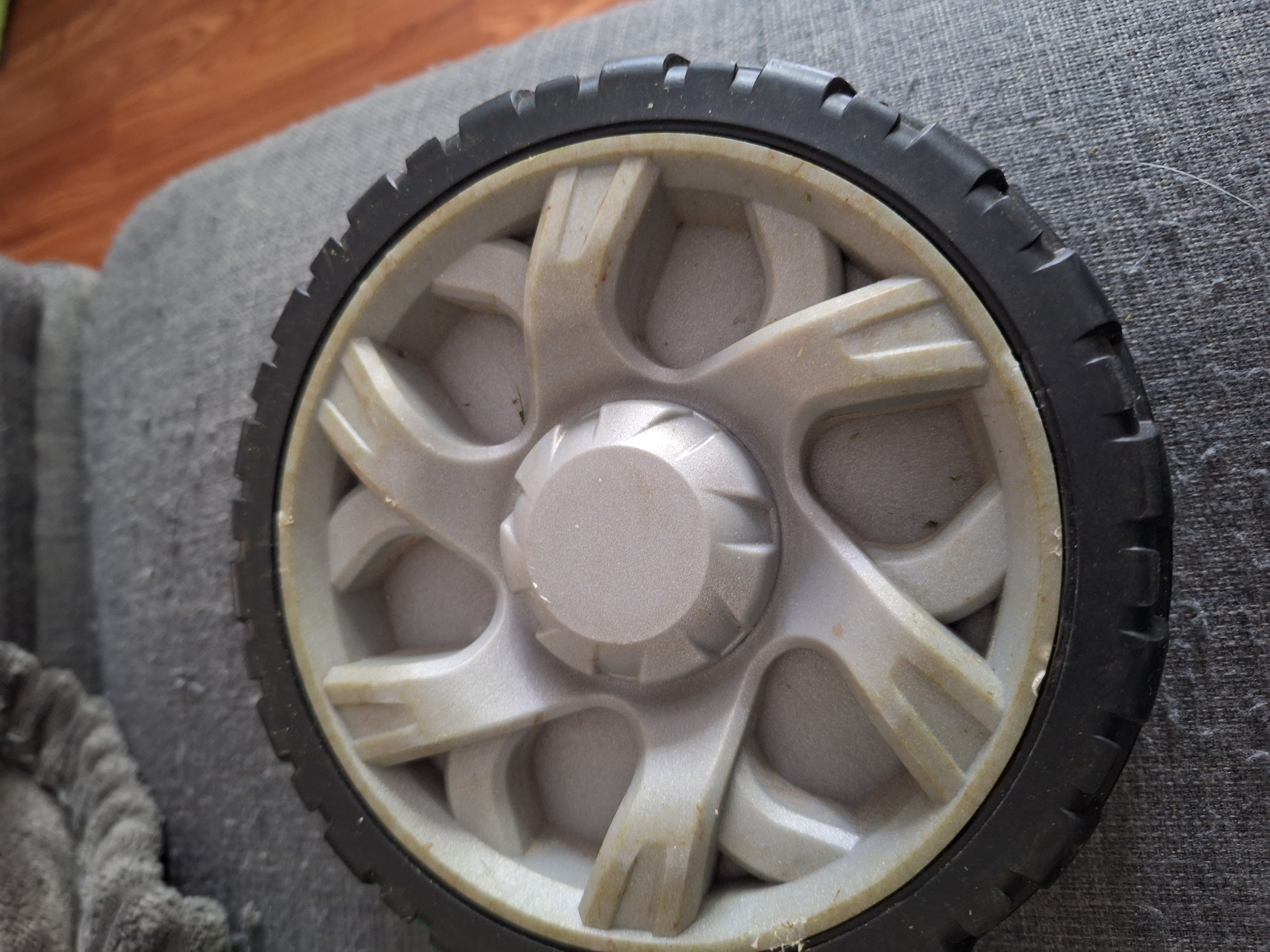

How to i put the front wheel back on after it falls off

User image 6855e059df7b9
0

Related Manuals for Benchmark 5125-016

Summary of Contents for Benchmark 5125-016

  • Page 1 40V MAX BRUSHLESS LAWN MOWER Includes 2 batteries & 1 charger 5 Year Limited Warranty on tool 3 Year Limited Warranty on battery and charger READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN. GY225502 Uses two 20V Max lithium-ion batteries that deliver an initial battery voltage (measured without a workload) of 40 volts.
  • Page 2 PRODUCT SPECIFICATIONS 40V BRUSHLESS LAWN MOWER Voltage 40V (2 x 20V) No Load No load 3300 RPM Cutting width 18" (45.7 cm) Cutting height 1"-3" (25-75 mm) Grass catcher volume 60 L (16 gallons) Weight 65.81 lbs (29.85 kg) BATTERY AND CHARGER Battery voltage 2x20V 5 Ah Li-ion (Maximum charged battery voltage, measured...

  • Page 3: Table Of Contents

    5125-016 40V MAX BRUSHLESS LAWN MOWER TABLE OF CONTENTS .................. 1 Table of Contents ..................2 General Safety Warnings ................3 Lawn Mower Safety ..................4 Maintenance & Storage ................. 5 Battery Pack & Charger Safety ..............6 Battery Pack Recycling ................. 8 Safety Symbols ....................

  • Page 4: General Safety Warnings

    GENERAL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations.

  • Page 5: Lawn Mower Safety

    5125-016 40V MAX BRUSHLESS LAWN MOWER LAWN MOWER SAFETY SAFETY WARNINGS This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.

  • Page 6: Maintenance & Storage

    Stop the cutting blade(s) if the product has to be tilted for transportation when crossing surfaces other than grass, and when transporting the product to and from the area to be mowed. 10. Never operate the product with defective guards, or without safety devices, 11.

  • Page 7: Battery Pack & Charger Safety

    5125-016 40V MAX BRUSHLESS LAWN MOWER BATTERY PACK & CHARGER SAFETY BATTERY SAFETY INSTRUCTIONS WARNING: Only use the charger supplied with this kit to charge the 20V Li-ion batteries for this tool. Charging any other batteries may damage the charger and possibly cause serious injury.
  • Page 8 11. Do not disassemble the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted. Ensure fresh air and seek medical assistance in the event of discomfort. 12. Always remove battery pack from your tool when you are assembling parts, making adjustments, cleaning, or when not in use.

  • Page 9: Battery Pack Recycling

    5125-016 40V MAX BRUSHLESS LAWN MOWER 15. Do not operate the charger with a damaged cord or plug, which could cause cause a short circuit and electric shock. If damaged, immediately discontinue use. Replace the charger with the identical unit as listed in the Product it must be replaced by the manufacturer, a customer service agent of the same 16.

  • Page 10: Safety Symbols

    SAFETY SYMBOLS WARNING: Please read all of the safety and operating instructions carefully before using this lawn mower. Please pay particular attention to all sections of this User Guide that carry warning symbols and notices. Some of the following symbols may be used on this tool.
  • Page 11 5125-016 40V MAX BRUSHLESS LAWN MOWER Warning! Danger. Inspect the area where the product is to be used and remove all objects which can be thrown Read the operator’s manual by the product. If objects are hidden while operating stop the product WARNING! Beware of electric and remove the object.
  • Page 12 Beware of sharp blades. Blades Remove plug from the power continue to rotate after the motor source immediately if the power cord is damaged or cut. device before maintenance. Crossed out dust bin. Batteries and battery packs should not be GO –...

  • Page 13: Know Your 40V Brushless Lawn Mower

    5125-016 40V MAX BRUSHLESS LAWN MOWER KNOW YOUR 40V BRUSHLESS LAWN MOWER Self Propelling Lever Start Lever Cable tension bolt kit Upper Handle Bar Foam Grip Safety Switch Lower Handle Bar Control Cord Cord Retainer Safety Key Grass Catcher Height Adjustment...

  • Page 14: Assembly

    ASSEMBLY UNPACKING Remove all packing materials and shipping devices if applicable. Make sure the delivery contents are complete and free of any damage. but contact Customer Service @ 1-866-349-8665. Using an incomplete or damaged lawn mower represents a hazard to people and property. Ensure that you have all the accessories and tools needed for assembly and operation.
  • Page 15 5125-016 40V MAX BRUSHLESS LAWN MOWER UPPER HANDLE BAR Align the upper handle bar to the lower handle bar and ensure the foam handle is pointed up when viewed from behind. Pass the bolts through the mounting holes of handles (Fig. 2).

  • Page 16: Checking The Battery Charge Status/Assembly & Operating

    To use the side chute option, remove the grass catcher (bag) and insert the mulching plate. a) Lift the side chute discharge cover (1) with one hand and hook in the side discharge chute (2) with the other hand (Fig. 5b). b) Release the side discharge cover to secure the chute in position.
  • Page 17 5125-016 40V MAX BRUSHLESS LAWN MOWER Turn the battery (2) upside down and slide it onto the charger. NOTE: Make sure the grooves (3) in the sides of the battery slide over the matching tabs on the charger (4) until the battery latch “clicks” into place.

  • Page 18: Operation

    OPERATION INSTALLING THE BATTERY PACKS Open the battery compartment cover. Unplug the safety key (1) (Fig. 8). Remove the discharged battery packs by pressing downward on the battery release button and sliding the battery pack backward until it is removed from the battery compartment (Fig.
  • Page 19 5125-016 40V MAX BRUSHLESS LAWN MOWER FIG. 9 FIG. 10 GRASS CATCHER WARNING: Do not attempt to use the product without the grass catcher before removing the grass catcher! Attach the grass catcher. Always carry the grass catcher by its carry handle.
  • Page 20 people entering the working area. Always let the product come to complete stop before leaving it unattended. Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have full control over the product. WARNING: and on what special days products are allowed to be used and what restrictions apply! Ask your community for detailed information and observe the regulations in order to preserve a peaceful neighbourhood and avoid committing...
  • Page 21 5125-016 40V MAX BRUSHLESS LAWN MOWER Starting Lever Self Propelling Lever FIG. 11 FIG. 12 MOWING Make sure that the lawn is clear of stones, sticks, wire or other objects that could damage the product or its product. Do not cut wet grass because it tends to stick to the underbody of the mower, preventing the proper discharge of grass clippings, and it could also cause you to slip and fall.

  • Page 22: Maintenance

    MAINTENANCE WARNING: the safety key and let the mower cool down before performing inspection, maintenance and cleaning work! Remove debris after each use and before storage. Regular and proper cleaning will help ensure safe use and prolong the life of the mower. Inspect the mower before each use for worn and damaged parts.
  • Page 23 5125-016 40V MAX BRUSHLESS LAWN MOWER DANGER: If the blade is not torqued properly, it could become loose and be thrown from the product and seriously hurt or kill the operator or bystanders. NOTE: Replace this blade after 50 hours of mowing or 2 years whichever is sooner regardless of condition.

  • Page 24: Exploded View

    EXPLODED VIEW Upper handle bar assembly Motor assembly Lower handle assembly Blade assembly Accessory Deck assembly Grass catcher assembly 5125-016k EnProdManual P.indd 23 2020-12-17 2:09 PM...

  • Page 25: Parts List

    5125-016 40V MAX BRUSHLESS LAWN MOWER PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the brushless lawn mower. Any attempt to repair or replace electrical parts on this lawn mower may create information, call the Toll-free Helpline, at 1-866-349-8665 –...
  • Page 26 Key # Part # Part Name Quantity 36010109 Male Terminal 3419510401027001 Connecting Line 4 34402000501027001 Connecting Line 5 3422710101032001 Micro Switch 3392000101030001 Gasket 33CC0170101 Spring 3422550401027001 Cable 315230010104700 Belt 33DB600301011 Bearing 33SFCDC008250101 Hex Bolt 3122550101023001 Bearing Sleeve 3122550301049001 Motor Seat Upper Handle Bar Assembly 3450000101032001 Switch...
  • Page 27 5125-016 40V MAX BRUSHLESS LAWN MOWER Key # Part # Part Name Quantity 33NJD0060101 3252300201003001 Self-Propelled Zipper - Down 3252200101138001 Screw Pin 3152200101098001 Quick Release Lever 3352200301030001 Washer 3252200101074001 Square Head Bolt Lower Handle Assembly 3252310201057001 Down Push Rod 3252200201074001...
  • Page 28 Key # Part # Part Name Quantity 3252300501053001 Self-Propelled Xing Plate 3252310101039001 Left Handrail Bracket 33SFDDC006120101 Bolt 3152310101072001 Regulating Block - Inside 3252300101011001 Left Output Gear Assembly L 3352300101138001 Round Pin 3252300101159001 After Shaft Support 3252300101021001 Internal Clutch Self - Walker 33DBR8RS01011 Bearing 33CC0120101...
  • Page 29 5125-016 40V MAX BRUSHLESS LAWN MOWER Key # Part # Part Name Quantity Assemble Finished 3152300101070001 Belt cover 33SBAQA004160101 Screw 3222540101049001 Blade Bearing 3222550101132001 Blade 33SNDQC010250101 Bolt 33NHD0080101 Flange Locknut 3152300101028001 Cushion Pads Grass Catcher Assembly 3552310101045001 Clippings Bag 3252310401039001...

  • Page 30: Warranty

    WARRANTY BENCHMARK BRUSHLESS LAWN MOWER WARRANTY If this Benchmark tool fails due to a defect in material or workmanship within the original bill of sale for exchange. 3 years for the battery and the charger. This warranty does not include expendable parts including but not limited to blades, brushes, belts, light bulbs.
  • Page 31 5125-016 40V MAX BRUSHLESS LAWN MOWER 5125-016k EnProdManual P.indd 30 2020-12-17 2:09 PM...
  • Page 32 Includes 2 batteries & 1 charger 5 Year Limited Warranty on tool 3 Year Limited Warranty on battery and charger 5125-016 BENCHMARK TOOLS CANADA Made in China ST. JACOBS, ONTARIO N0B 2N0 © 2020 Home Hardware Stores Limited CUSTOMER SERVICE/TECH SUPPORT...
