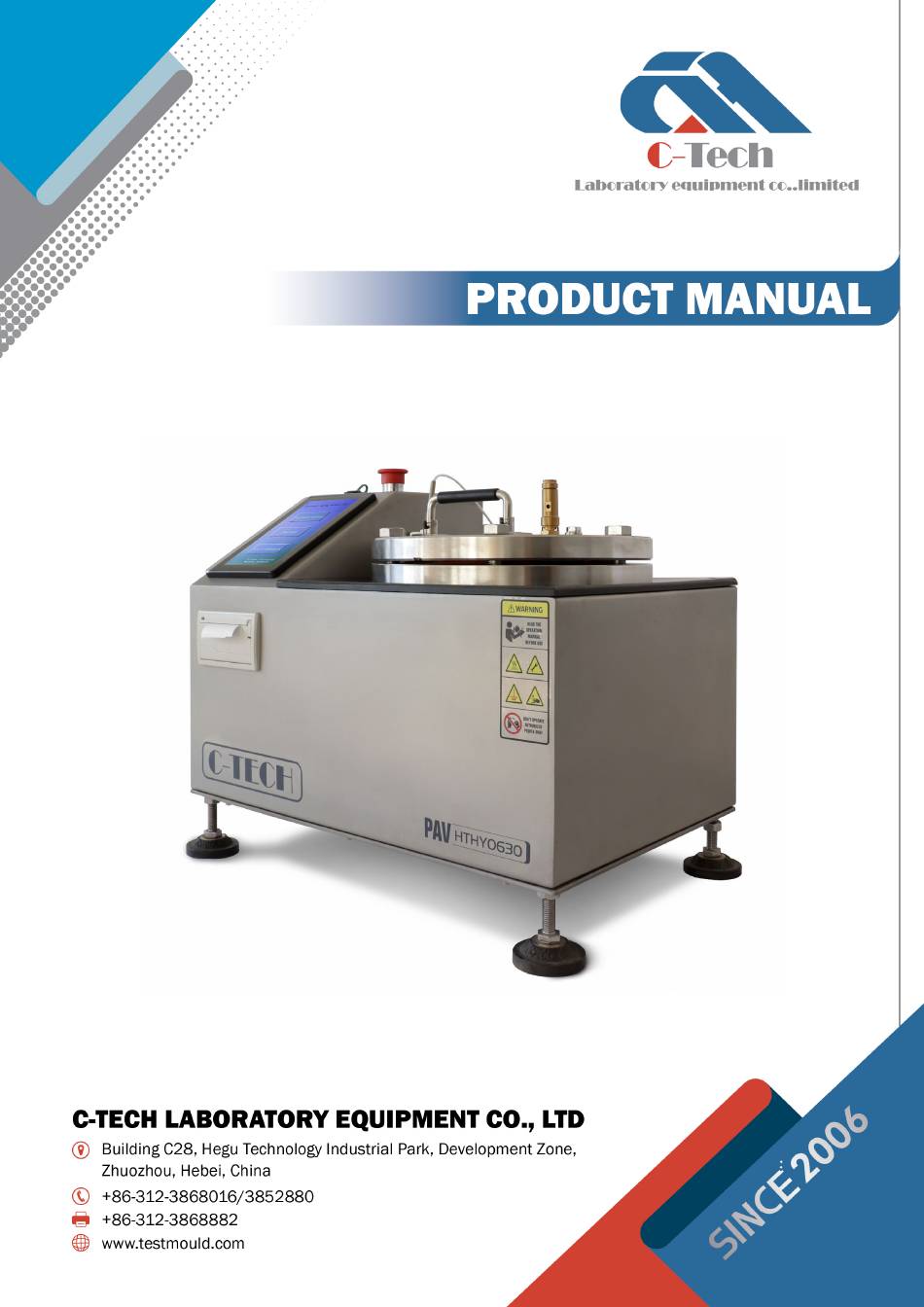

- Page 1 ASPHALT PRESSURE AGING VESSEL HTHY-0630 PAV...
-
Page 2: Table Of Contents
CONTENTS Preface ................................1 About HTHY-0630 PAV ...........................4 III. Structure ................................6 IV. Hardware .................................8 Device connection ............................8 VI. Software ................................9 VII. Calibration ..............................14 VIII. Operation ..............................14 IX. Maintenance ..............................15... -
Page 3: Preface
I. Preface Safety tips Notice for use When using the equipment under different circumstances, the manufacturer does not assume any responsibility for any foreseeable harm caused directly or indirectly to people, things or animals. Without prior notice, the manufacturer has the right to make changes to the file information or equipment. - Page 4 immediately and consult the manufacturer's after-sales service department. It is the customer's responsibility to verify whether the installation or use is carried out according to the instructions. Please contact the manufacturer when in doubt. Operator WARNING! Only qualified personnel are allowed to use, transport, install, maintain, dismantle and dispose of the equipment.
- Page 5 Warning and danger signs This equipment is designed and manufactured in accordance with the current standards, so it is equipped with well-designed mechanical and electrical safety devices to protect the operator or user from possible injury. However, during use or in certain operating procedures, the equipment still has potential risks.
-
Page 6: About Hthy-0630 Pav
II. About HTHY-0630 PAV Description ASPHALT PRESSURE AGING VESSEL HTHY-0630 PAV uses high temperature and high pressure to accelerate the aging rate of asphalt binder, thereby simulating the oxidation aging of asphalt binder during use, and is used to evaluate the oxidation resistance of different asphalt under certain test temperature and pressure conditions. - Page 7 prompt and display the fault code at the same time; The cabinet is made of stainless steel, treated with special technology, beautiful and generous, easy to clean and durable. Technical specifications Working Temperature control 90~110℃ Resolution 0.1℃, accuracy ±0.5℃ temperature range accuracy Temperature-...
-
Page 8: Structure
Storage, transport and moving Storage WARNING! The device must be stored in its original packaging in a closed environment. The minimum temperature for protection from atmospheric damage is -15C°, the maximum is 60°C, and the maximum humidity is 70%. Transport WARNING! In order to avoid irreversible equipment damage, move carefully, do not overturn, prevent rain, do not stack, and avoid packaging and loaded goods from collisions and heat sources. - Page 9 Aging chamber Sealing ring Cover Sample dishes Figure 2 The structure of the aging chamber is shown in Figure 2, which mainly provides a high temperature and high pressure environment for the rapid aging of asphalt samples. The maximum heating temperature is 110°C and the maximum pressure is 2.4MPa.
-
Page 10: Hardware
Rack Figure 4 As shown in Figure 4, the rack is mainly used for placing sample dishes during pressure aging, and a maximum of 10 sample dishes can be placed in one test. In order to prevent scalding the skin, it is necessary to wear high-temperature protective gloves when operating, and use a special tool (shown in the right picture) to remove it. -
Page 11: Software
Temperature sensor High pressure air pipe Power connector Figure 7 When the equipment is installed, the pressure reducing valve assembly shown in Figure 6 needs to be connected between the equipment and the air storage tank. Adjust the air pressure entering the device through the pressure adjustment handle, so that it can be between 3Mpa and 4Mpa. - Page 12 Turn on the device and enter the main interface, as shown in Figure 8. [Parameter Settings]: Click to enter the parameter setting interface, as shown in Figure 9. [Start Test]: Click to enter the start test interface, as shown in Figure 10. [Device Debugging]: Click to enter the device debugging interface.
- Page 13 [Temperature correction coefficient]: It is the ratio between the actual temperature of the aging chamber and the measured value of the temperature sensor. Other parameters have been set when the equipment leaves the factory. For the accuracy of the temperature during the test, it is not recommended to adjust. If adjustment is required, please contact the after-sales personnel and operate under the guidance of the after-sales personnel.
- Page 14 [Aging time]: The duration of the aging test. [Overtemperature]: The accumulative time when the temperature exceeds the set temperature limit. [Undertemperature]: The accumulative time when the temperature is lower than the set temperature limit. [Overpressure]: The accumulative time when the pressure exceeds the set pressure limit. [Underpressure]: The accumulative time when the pressure is lower than the set pressure limit.
- Page 15 [Data List]: Click this button to enter the test data list interface, as shown in Figure 12. [Return]: Return to the start test interface. Figure 11 Graph interface Data list interface This interface displays the temperature and pressure values during the entire test process. Data is recorded every 5 seconds.
-
Page 16: Calibration
Figure 12 Data list interface VII. Calibration Temperature calibration Aging chamber temperature calibration method: When the pressure of the aging chamber is atmospheric pressure, open the threaded plug of the temperature calibration port on the aging chamber cover (Figure 13), and insert the standard temperature sensor into the aging chamber for temperature calibration. -
Page 17: Maintenance
WARNING! Be careful not to crush your fingers when opening or closing the aging chamber cover! WARNING! Wear high temperature resistant gloves during operation to prevent burns! 1. Turn on the power and turn on the panel power switch. 2. Open the control software and set the relevant test parameters on the parameter setting interface (as shown in Figure 8). - Page 18 All maintenance operations, inspections and controls must be performed by qualified personnel who know the equipment and its construction. All operations are only possible when the device is turned off and disconnected from the power source. Only original spare parts may be used for this device, the manufacturer will not be held liable for any damages and the warranty period will automatically be voided if non-original spare parts are used.
- Page 19 - 17 -...
