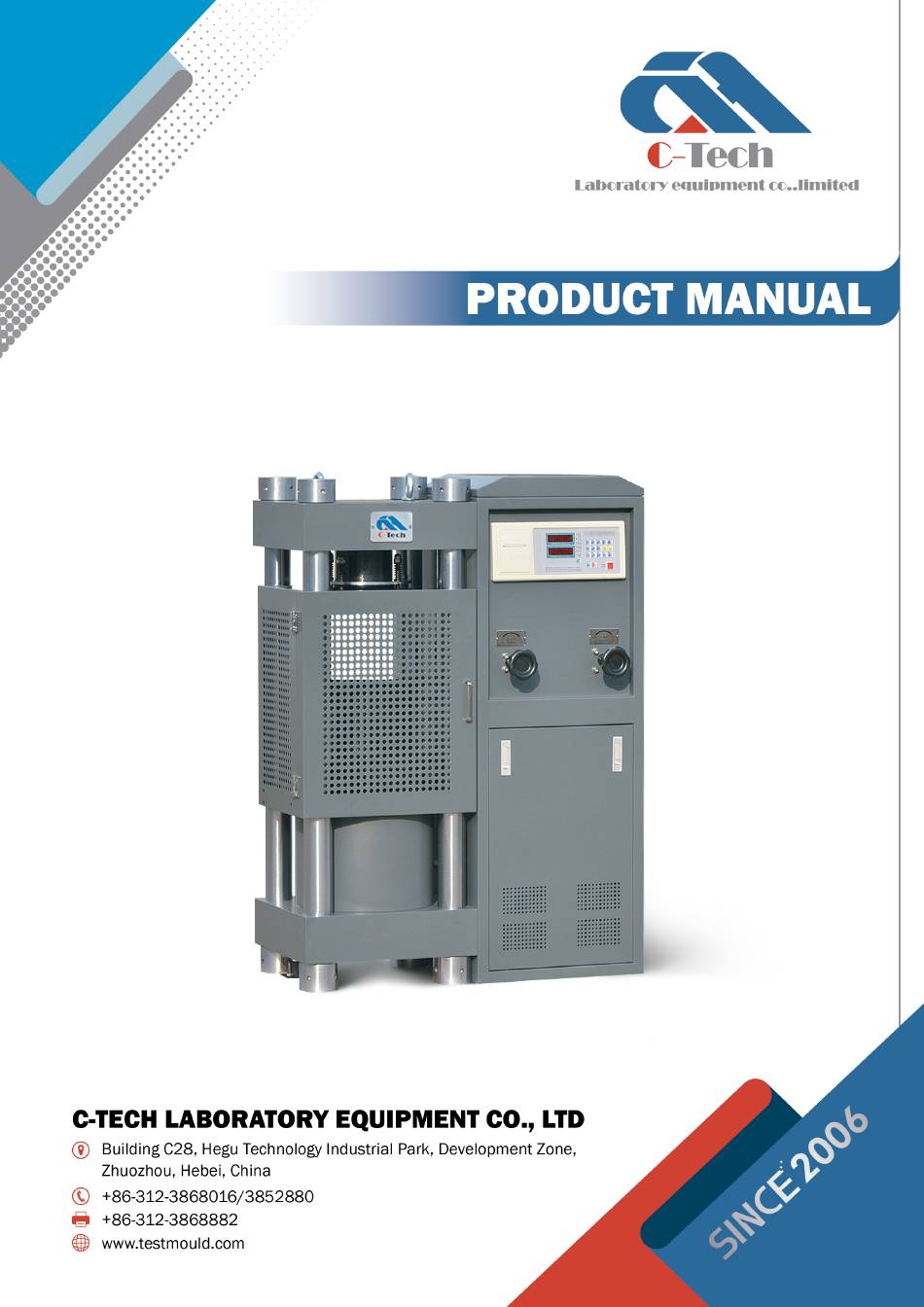

- Page 1 COMPRESSION TESTING MACHINE SYE-2000BS...
-
Page 2: Table Of Contents
CONTENTS Introduction ..............................1 Technical parameter ............................1 III. Controller ................................1 IV. Installation and operation ..........................3 Data Searching ..............................5 VI. Verification and Calibration ..........................5 VII. Troubleshooting ...............................8... -
Page 3: Introduction

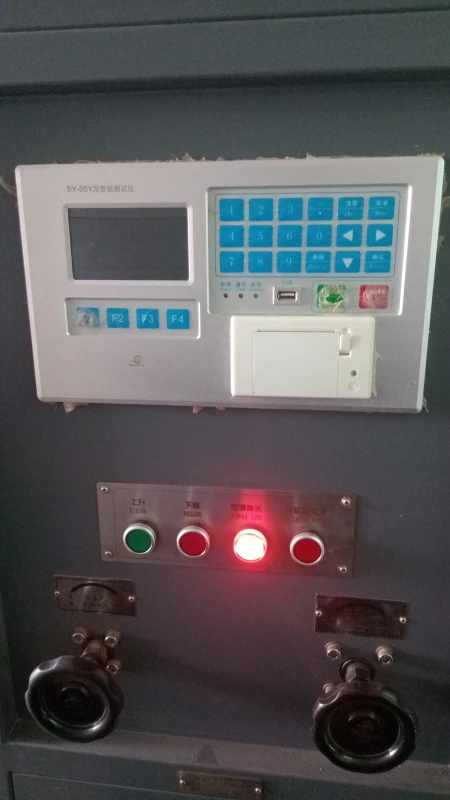

I. Introduction The tester is used for determine the resist pressure strength of concrete, brick, stone and other construction material. Load form is hydraulic pressure. The tester is applied to all college, construction unit of industrial and mining enterprises, the test force device adopts numeric display with micro printer, the test force part is compact, the shape is beauty, convenient to handle and maintain. - Page 4 Operation panel The indicating lamps (from top to bottom): Testing, Verifing, Calibrating, Information, Clock and Motor. Features Time: year, month, day, hour, minute Group setting: 0001-9999 Codes of cross-section of specimen setting: 1- for 100 mm cubic compression specimen 2- for 150 mm cubic compression specimen 3- for 200 mm cubic compression specimen 4- for non-standard compression specimen 5- for 150x150x550 mm flexural specimen...
-
Page 5: Installation And Operation
8- for70.7 mm cubic compression specimen Save The data saved will not be lost when the power supply is cut off. The max memory is 500 unit data from No. 01-9999 automatically. Also, the number can be input manually. Care must be taken that the last test data will be saved for the same number. - Page 6 contacted with the specimen. Turn on the testing machine to make the piston rising slowly. Press “Clear” key to remove the tare. ②. Press “Func” key until the indicating lamp test flashed and press “Enter” key. “P 0 0 0 1” “S — — —...
-
Page 7: Data Searching
Repeat the procedures 4.3.5 above. ⑦. The test result will be printed automatically when a group of test specimens is completed. If necessary, press “Print” key to print the test result when one or two piece of specimens of the group is tested. - Page 8 times, and then relief it. ②. Press “Func” key until the indicating lamp “Verifing” flashed, press “Enter” key to start verification. “d0000” (set load for verification) will be displayed on the Force Value window and “XXXXX” (actual force value) will be displayed on Loading Rate window. ③.
- Page 9 Set the load of calibration The loads for calibration is set in the factory before delivery. 5 set loads (10%, 20%, 40%, 60% and 100%) of the full range will be calibrated. For 2000 kN compression testing machine, the set loads will be 200kN, 400kN, 800kN, 1200kN and 2000kN.
-
Page 10: Troubleshooting
⑥. The second set load will be displayed on the Force Value window and the actual force value will be shown on the Loading Rate window. Press “Enter” key when the value in the proving ring is the same with the standard value. ⑦. - Page 11 - 9 -...
