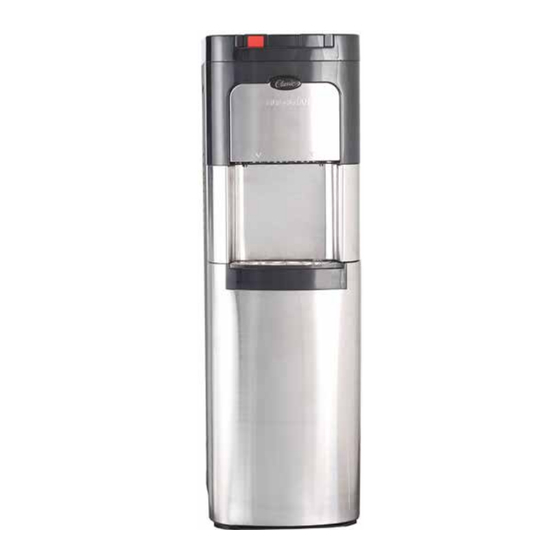

Electrotemp Technologies Classic 8LIECHK-SC-SSF User Manual

Self cleaning bottom loading bottled
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL
Self Cleaning
Bottom Loading Bottled
Water Dispenser
Model # 8LIECHK-SC-SSF
TO REDUCE THE RISK OF INJURY AND
PROPERTY DAMAGE, USER MUST READ
THIS MANUAL BEFORE ASSEMBLING,
INSTALLING & OPERATING DISPENSER.
SAVE THIS MANUAL FOR
FUTURE USE
8LIECHK-SC-SSF © 2015 Classic Water Corporation PN: 5M010243XX02(E+F)
WARNING
!

Advertisement

Table of Contents
loading

Related Manuals for Electrotemp Technologies Classic 8LIECHK-SC-SSF

Summary of Contents for Electrotemp Technologies Classic 8LIECHK-SC-SSF

  • Page 1 USER MANUAL Self Cleaning Bottom Loading Bottled Water Dispenser Model # 8LIECHK-SC-SSF WARNING TO REDUCE THE RISK OF INJURY AND PROPERTY DAMAGE, USER MUST READ THIS MANUAL BEFORE ASSEMBLING, INSTALLING & OPERATING DISPENSER. SAVE THIS MANUAL FOR FUTURE USE 8LIECHK-SC-SSF © 2015 Classic Water Corporation PN: 5M010243XX02(E+F)

  • Page 2: Safety Precautions

    Model # 8LIECHK-SC-SSF: Page 2 SAFETY PRECAUTIONS Your safety and the safety of others are very important. We have provided many important safety messages in this manual and your appliance. Always read and follow all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.

  • Page 3: Safety Precautions-Electrical Requirements

    Model # 8LIECHK-SC-SSF: Page 3 SAFETY PRECAUTIONS ---Electrical Requirements WARNING Electrical shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.

  • Page 4: Self-Cleaning

    201°F. These parts of your cooler are automatically treated with metered amounts of ozone every 4 hours to eliminate bacteria growth. This process is an exclusive to Electrotemp Technologies Inc. and is covered by numerous patents.

  • Page 5: Table Of Contents

    Model # 8LIECHK-SC-SSF: Page 5 TABLE OF CONTENTS Safety Precautions................Safety Precautions-Electrical Requirements ........Product Features ................. Self-Cleaning................... Key Information for Future Use............Specifications ................... Parts & Features ................Unpacking And Assembly .............. Installation ....................Cleaning Prior to Initial Use ..............

  • Page 6: Specifications

    Model # 8LIECHK-SC-SSF: Page 6 SPECIFICATIONS Power Supply 6.5AMP Refrigerant Type R-134A Cold Water Power < 100Watts Cold Capacity / Hour 6 Liters / 1.59 Gallon Cold Temp range C-10 C / 37.4 F - 50 Hot Water Power 650 Watts Hot Capacity / Hour 6 Liters / 1.59 Gallon Hot Temp range...

  • Page 7: Unpacking And Assembly

    Model # 8LIECHK-SC-SSF: Page 7 UNPACKING AND ASSEMBLY Remove the dispenser from packaging: WARNING TO OPEN: Excessive Weight Hazard Use two or more people to move and install the water cooler and the bottles. Failure to do so can result in back or other injury. 1.

  • Page 8: Cleaning Prior To Initial Use

    Model # 8LIECHK-SC-SSF: Page 8 CLEANING PRIOR TO INITIAL USE To remove any odors or dust that may have accumulated during shipment, you may want to clean the dispenser prior to first use. Time Required: 45 minutes. Notice: Do NOT plug in power cord yet. 1.

  • Page 9: Operation

    Model # 8LIECHK-SC-SSF: Page 9 Model # 8LIECHK-SC-SSF: Page 9 OPERATION IMPORTANT This unit is intended for water dispensing only. Do NOT use other liquids. Do NOT use for other purposes. Warranty is void if used with any other liquids such as coffee, tea, juices, beer or wine.
  • Page 10 Model # 8LIECHK-SC-SSF: Page 10 NOTICE: When using a 5 gallon rectangular bottle, slide it into place as shown in illustration below. • If the probe tube A and B(see page 8) are not sealed, the pump will run a few minutes and the night lights will flash.
  • Page 11 Model # 8LIECHK-SC-SSF: Page 11 2. Press the right control downward to start dispensing water. 3. Release the control once desired the fill level is achieved. Dispensing Hot Water Note: After setup, hot water will be available in 15-20 minutes. 1.

  • Page 12: Proper Care & Cleaning

    Model # 8LIECHK-SC-SSF: Page 12 PROPER CARE & CLEANING General Cleaning Perform: As needed Time Required: 5 minutes. Note: Do NOT use abrasive materials or chemical cleaners. 1. Clean cabinet surfaces with a soft cloth and warm soapy water 2. Wipe dust from back of dispenser to improve efficiency. 3.
  • Page 13 Model # 8LIECHK-SC-SSF: Page 13 3. Unplug the power cord from the wall outlet. 4. Remove water bottle and probe from water bottle. 5. Place a 2 gallon or larger bucket under the drain plug in the rear of the dispenser. 6.
  • Page 14 Model # 8LIECHK-SC-SSF: Page 14 11. Remove the drain cap and the draomin plug. Cold water will immediately flow into the bucket. After several seconds, hot water will be dispense. Reminder - Place the drain cap and the drain plug in a safe location so that they will not be lost. 12.

  • Page 15: Troubleshooting

    Model # 8LIECHK-SC-SSF: Page 15 TROUBLESHOOTING Problem: Out of the box stainless steel surfaces are smudgy. Solution: Use paper towel to wipe excess oils until surface feels dry to the touch. To maintain beauty if stainless steel oil it periodically using Stainless steel Oil available at hardware stores, or Unscented Baby Oil, which is pure mineral oil.
  • Page 16 Model # 8LIECHK-SC-SSF: Page 16 No Hot Water: After the weekend or long absence water level in the hot tank might be lower slow due to evaporation. Just hold Hot Water dispensing button longer until cold water fills the hot hot tank and allow hot water to flow.
  • Page 17 Model # 8LIECHK-SC-SSF: Page 17 Water dispensed is not hot. • It takes 15-20 minutes after setup to dispense hot water. • Make sure that the power cord is properly connected to a working outlet. • Make sure that the hot water switch is ON. Water dispensed is not cold.
  • Page 18 Model # 8LIECHK-SC-SSF: Page 18 Quick connectors have U-shaped Locks. Remove lock, push tubing in until it stops, place lock back. How to connect /disconnect the quick connector and tubes. 1. Remove U-shaped lock. 2. Press collet and pull tubing out. 3.

  • Page 19: Limitedwarranty

    Model # 8LIECHK-SC-SSF: Page 19 LIMITEDWARRANTY Home Hardware Stores Limited warrants this product against defects in any parts or workmanship to the original purchaser and no other person provided the dispenser is assembled and operated in accordance with the printed instructions accompanying it. If unit should fail within one year from date of purchase please call 1-844-926-6537 for service.
  • Page 20 D) ADDITIONAL INFORMATION You may request additional information on how to obtain warranty services by contacting the Author- ized Service Provider by writing or calling: ELECTROTEMP TECHNOLOGIES INC. 406 Watline Ave, Mississauga,Canada, ON L4Z 1X2 Toll Free Tel: 1-844-926-6537 Toll Free Fax: 866-881-3819 E-mail: info@electrotemp.com...
  • Page 21 名称：说明书8LIECHK-SC-SSF(E+F)-English 图号：5M010243XX02(E+F) １、更改饮水杆图片 罗亚男 2014-06-04 ２、机械门开关更改为磁感应开关 ３、增加电子温控说明 １、p1更改年号 ; 2.p2中间框内增加内容; 肖祥丽 2015-05-20 3、p3,p10,p17中的 6 hours 改成1 hour; 4 删除了p4原内容，更换内容; 5:调整目录； p6 修改了电流和 功率，热水出水量；感应开关 换成门开关图 ;产品图片上中面板 两边加两条线 ; 6 p8和p9饮水管换成弯水管; p10中删掉单词maximum 7 p15中更改桶及将直水管改成弯水管，后延增加内容达一页。 8 增加18页内容，p17页最后一段话相应更改成p18页。 技术要求： 1、尺寸：143×210mm 2、单色印刷 3、产品符合RoHS要求 4、批量生产前一定要样品确认， 不得擅自更改图纸 设计：...
