ALYSEUM - Q-MIXI, Q-MIX & Q-MIXO - User manual V2.0
1
Introduction

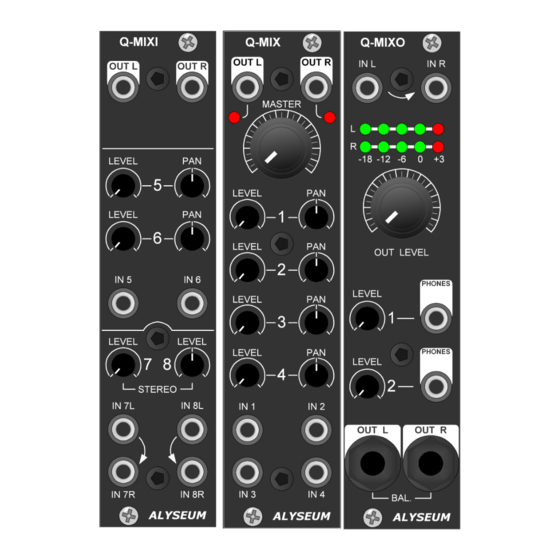

Depending on your use and needs, Q-MIXI, Q-MIX and Q-MIXO modules can be used in several combinations:
●
Individually
●
In pairs (3 combinations)
●
All three together
Q-MIX, Q-MIXI and Q-MIXO use quality capacitors in the audio signal path.
Q-MIXI, Q-MIX & Q-MIXO – User's manual © - Revision 2.0 - Page 1
No DC signal can pass through the modules.
Once upon a time, needed a compact audio mixer for my
personal Eurorack, including 4 inputs with LEVEL & PAN
controls and an adjustable stereo audio level output, all in
6HP maximum!
The challenge of this new module was multiple:
●
Strong focus on ergonomics in maximum 6HP.
●
Pro audio components for excellent performance.
●
LINE IN & OUT connectors on the rear panel, which
allows to add future extension modules.
●
Large MASTER stereo output potentiometer.
●
Quality capacitors on the audio path.
I made it and, following the positive comments from my
entourage, I said to myself "what about marketting it"?
I have since added a sub-mixer (Q-MIXI) and a balanced
output module (Q-MIXO) with two independent
headphone outputs.
