ALYSEUM - MATRIX II - User manual 2.4 -
1 Introduction
OUT
1 4 8 12
4
8
IN
12
16
IN
1 2 3
5 6 7
9 10 11
13 14 15
CLK RST
SEQ.
And finally, all your user patches can be saved in 7 Banks of 32 Presets or unlimited presets via the freeware editor for
WIN or OSX.
These 32 Presets can then be recalled by:
1. Or a CLK+RST inputs to obtain a Sequential MATRIX I/O router
2. Or a CV Input with its bipolar offset setting.
3. Or a MIDI NOTE On or PGM CH
4. And the front panel
5. And the freeware MATRIX II editor (WIN & OSX).
Important - Wichtig - Importanti - belangrijk - Ważne – Σηµαντικό
It is NOT possible to map several inputs to a single output!
MATRIX II
BANK PRESET
16
8 8 8
IN / OUT
RST
BANK
PRESET
CTRL
MODE
4 1
8 5
12 9
16 13
OFFSET
CV
ALYSEUM
MATRIX II does not have a built-in mixing function!
MATRIX II User's manual © - Revision 2.4 - Page 1
OUT / LOAD
IN / SAVE
OUT
2 3 4
6 7 8
10 11 12
14 15 16
IN OUT
MIDI
(Firmware 0.3)

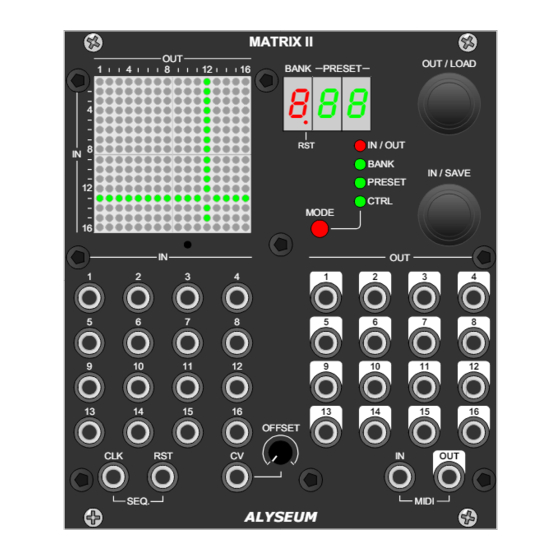

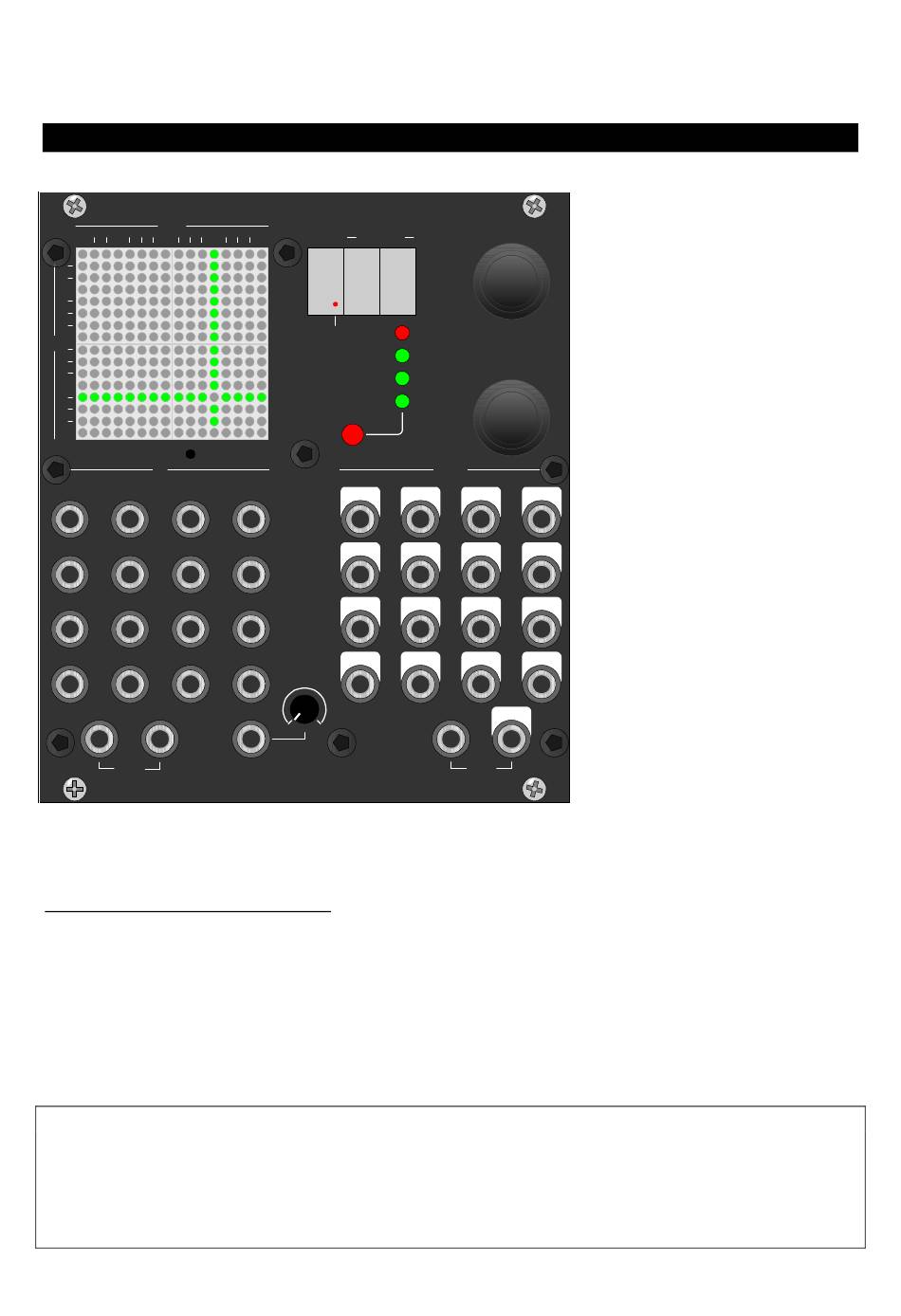

The MATRIX II module consists of a
dynamic switching matrix, which
supports 16 inputs and 16 outputs.
Input 16 is specific, it is low
impedance (3KΩ) and is
permanently connected to all no
routed outputs.
The inputs accepts by nature a
variety of signals such as Gates,
Clocks, CV and OSC and follow a full
analog path to the outputs.
All inputs and outputs are buffered
with low-offset unity-gain op-amps.
A special 256 LEDs display made for
a friendly and intuitive graphical
user interface, with each LED
representing one of the 256
connection points available.
Each inputs and outputs can be
multiplied by 4 with the Q-VCA
mixer module or multiplex 1 ↔ 8
with the SELECTOR module.
