Alyseum Q-VCA User Manual

ALYSEUM - Q-VCA - User manual 2.4 -
1

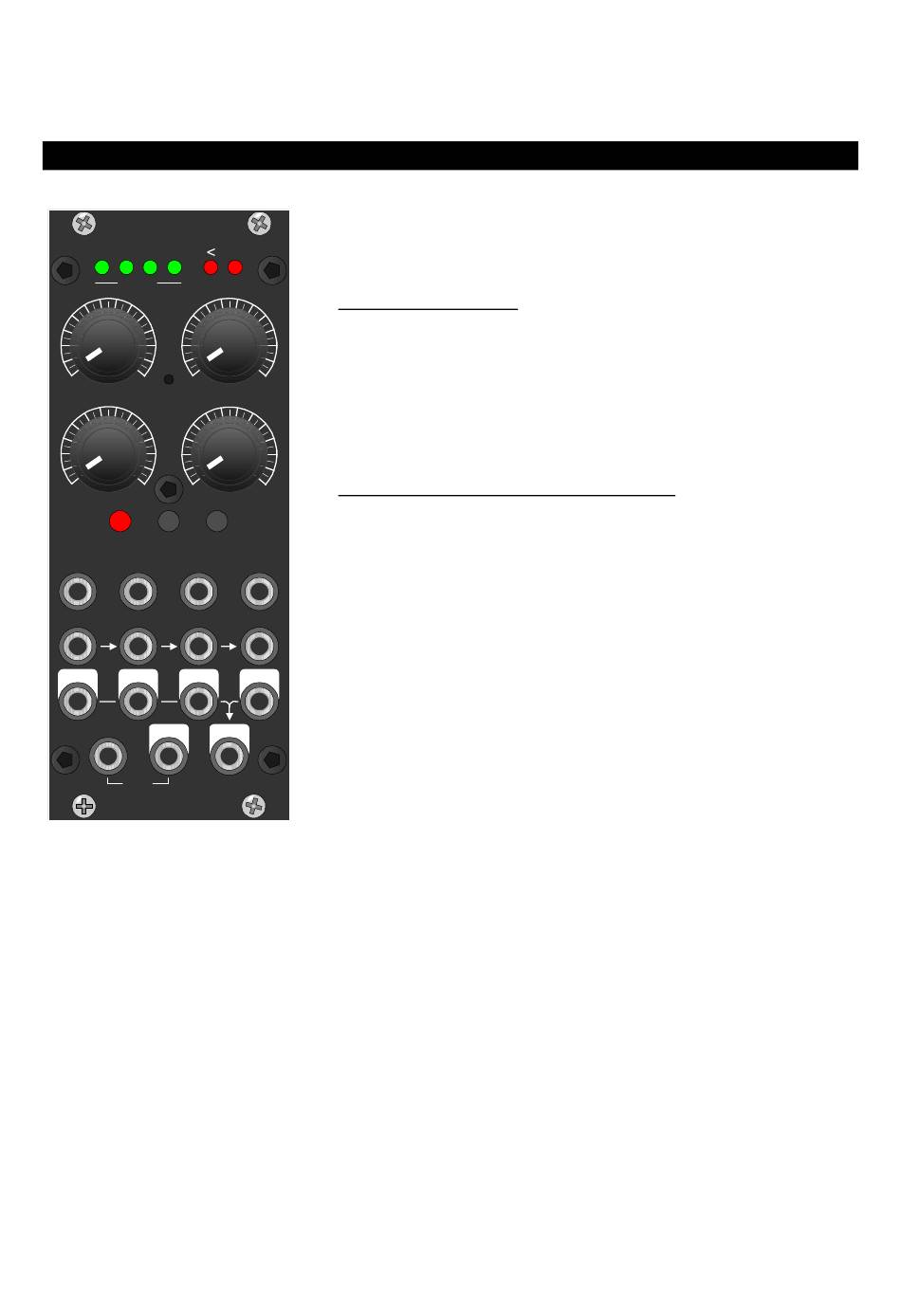

Introduction

Q-VCA
1 2 3 4
LOCK
1 2
3 4
MODE
MIDI
CV 1 CV 2 CV 3
IN 1 IN 2 IN 3
OUT 1 OUT 2 OUT 3
IN THRU
MIDI
ALYSEUM

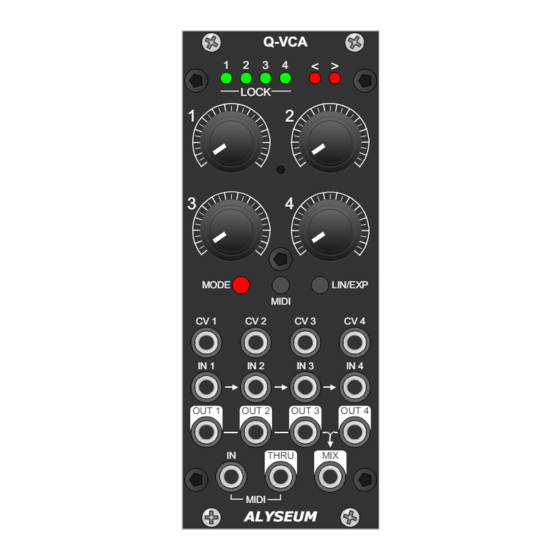

The Q-VCA module is a versatile, dynamic and high-quality Quad VCA.
However, it offers much more than similar modules on the market.
>
The classic features are:
●
●
●
●
In addition, 4 unique VCA control modes are:
1. Manually via the potentiometer.
LIN/EXP
2. By a programmable MIDI controller.
3. Use with the MATRIX II – Requires crossing between the
CV 4
potentiometer & VCA values and then activates the VCA update.
4. Use with the MATRIX II – Turn the potentiometer and the VCA are
IN 4
updated directly
OUT 4
In resume for point 3 & 4: One Q-VCA module, add mix 4 sources for each
MATRIX II input - OR - One Q-VCA module, add mix 4 destinations for
each MATRIX II output .
MIX
Q-VCA User's manual © - Revision 2.4 - Page 1
Insert a jack into the CV IN input and the corresponding VCA is
100% Analog.
Each VCA can be controlled linearly or exponentially.
Inputs chaining for multiple VCA
No connected output is routed to the MIX output.
(Firmware 1.1)
