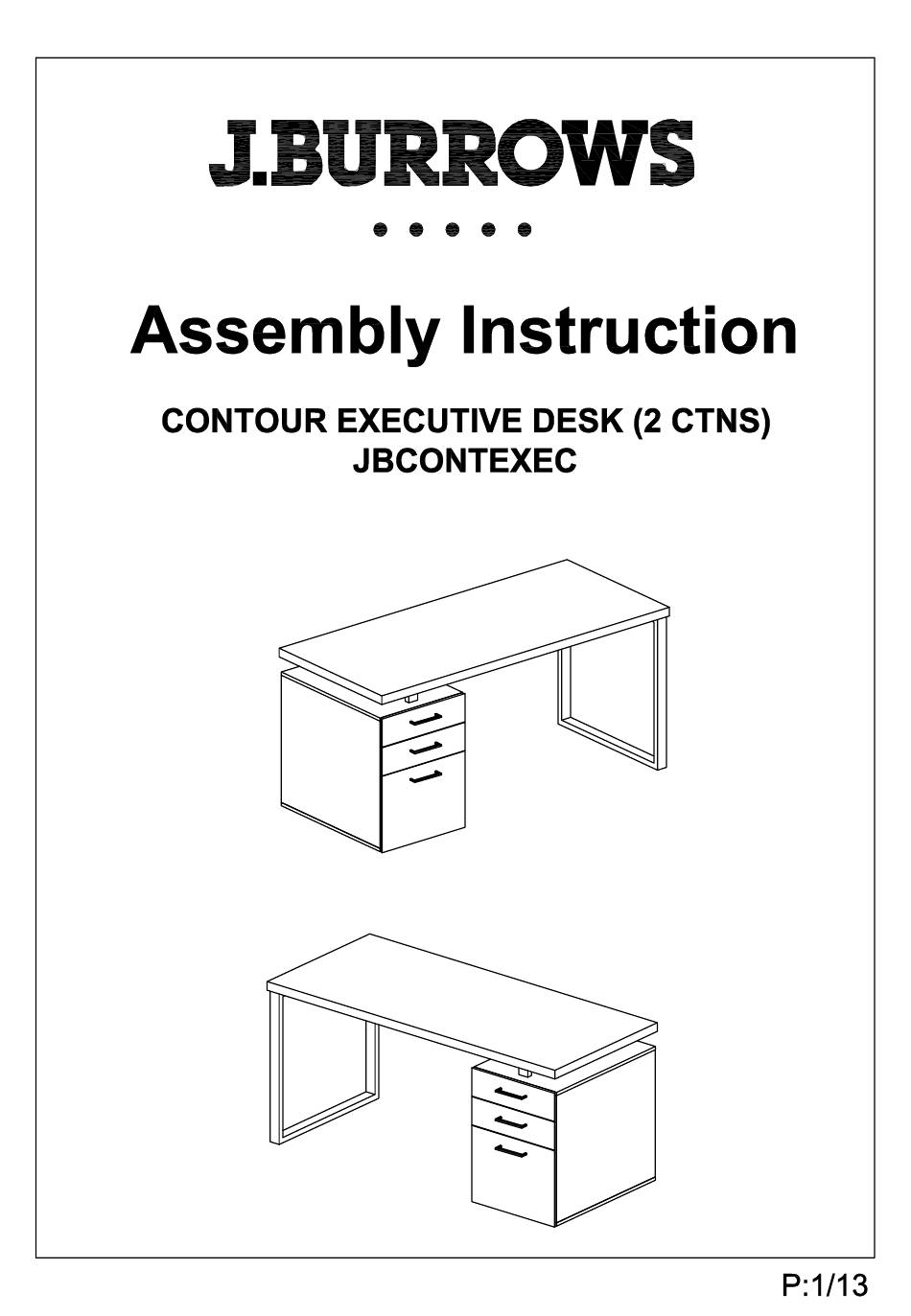

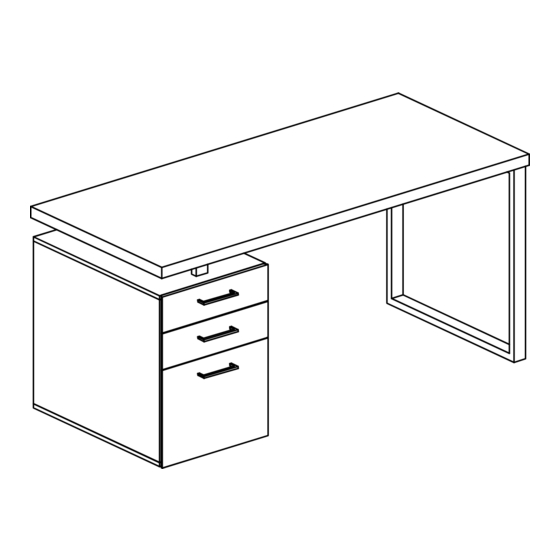

- Page 1 All manuals and user guides at all-guides.com...
- Page 2 All manuals and user guides at all-guides.com MORE THEN ASSEMBLE 1 PERSON ON A CLEAN, IS REQUIRED FLAT SURFACE TO SAFELY ASSEMBLE THE ITEM MORE THEN1 PERSON HOTLINE ASSEMBLE ON A CLEAN, IS REQUIRED TO SAFELY FLAT SURFACE ASSEMBLE THE ITEM...
- Page 3 All manuals and user guides at all-guides.com...
-
Page 4: Hardware List
All manuals and user guides at all-guides.com Hardware List Ø8×30mm 6.3×45mm 15×12mm 7×50mm ×2pcs ×20pcs ×20pcs ×6pcs ×10pcs ×6 sets 4×35mm 3.5×14mm M6×12mm M8×40mm ×12pcs ×42pcs ×2pcs ×8pcs ×6pcs ×4pcs ×1pc ×1pc ×3pcs ×6pcs ×2pcs ×1pc Remark: Press the plastic slider in the indicated dicetion to separate drawer runner E1 and E2 before assembling. - Page 5 All manuals and user guides at all-guides.com Step 1 B×2 A×6 D×4 Step 2 A×2 D×2 E1×6 B×6 H×18 P:5/13...
- Page 6 All manuals and user guides at all-guides.com Step 3 Please hand tighten this with screwdriver! Step 4 Please hand tighten this with screwdriver! P:6/13...
- Page 7 All manuals and user guides at all-guides.com Step 5 Step 6 C×6 D×4 P:7/13...
- Page 8 All manuals and user guides at all-guides.com Step 7 L×4 Step 8 I×2 P:8/13...
- Page 9 All manuals and user guides at all-guides.com Step 9 M×2 J×6 Step 10 Note:You Can Assemble the Cabinet at Left Hand side or Right Hand side here J×2 P:9/13...
- Page 10 All manuals and user guides at all-guides.com Step 11 ×2 B×8 A×8 G×8 Q×2 Please hand tighten this with screwdriver! R×4 Step 12 ×2 E2×4 H×12 P:10/13...
- Page 11 All manuals and user guides at all-guides.com Step 13 F×2 B×4 Q×1 A×4 R×2 G×4 Please hand tighten this with screwdriver! Step 14 E2×2 H×6 P:11/13...
- Page 12 All manuals and user guides at all-guides.com Step 15 K×6 H×6 Step 16 Note:Move the sliding part as shown above to the front end on both sides before inserting the drawer. This will assist for easier assembly Remark: If you want to remove drawer,simultaneously press plastic levers on both sides and pull drawer outward.
- Page 13 All manuals and user guides at all-guides.com WARNING DO NOT DRAG DESK DISCONNECT PEDESTAL FROM TOP WHEN MOVING THIS UNIT TO AVOID DAMAGE. DAMAGE FROM MOVING INCORRECTLY IS NOT COVERED BY WARRANTY Maximum Load Capacity : Desk top:55kg Stationery Drawer: 5kg Filing Drawer: 12kg Your CONTOUR EXECUTIVE DESK is now complete and ready for use.
