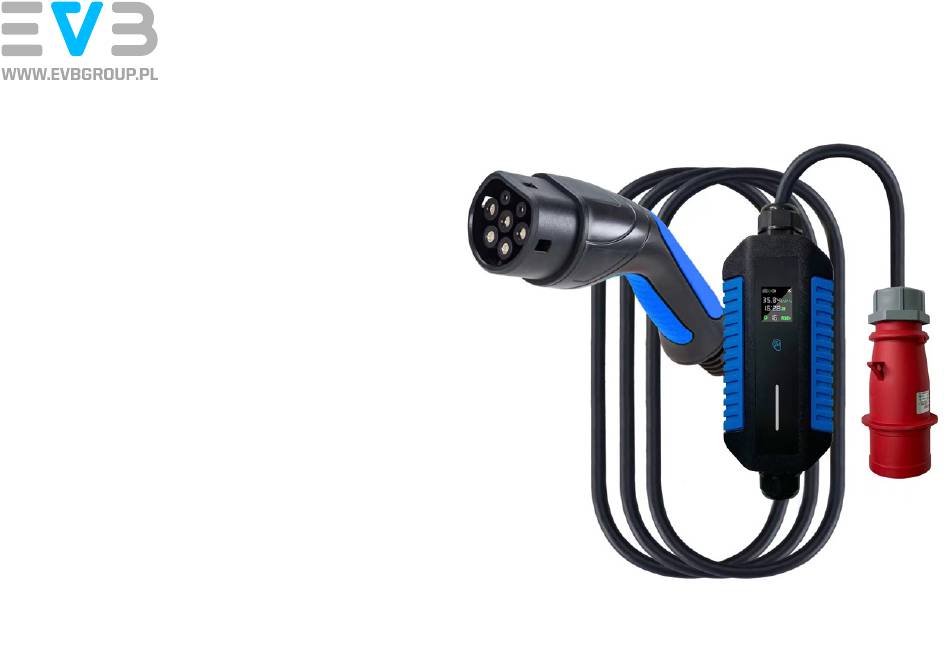

- Page 1 EV 22kW AC portable charger...
-
Page 2: Safety Information
IMPORTANT PLEASE READ THESE OPERATING INSTRUCTIONS BEFORE USING THE DEVICE! FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY, DAMAGE TO THE DEVICE, ENVIRONMENTAL DAMAGE OR OTHER SERIOUS PROBLEMS. KEEP THESE OPERATING INSTRUCTIONS IN A SAFE PLACE WITH THE CHARGING DEVICE. SAFETY INFORMATION ►... -
Page 3: Specifications
SCHEME SPECIFICATIONS Working power 400V +/- 10%,50Hz +/- 2% Scenes Indoor/Outdoor ≤2000 Height (m) IP66 Button Switching current, cycle display, notorious new charging delay Switching current It can meet three-phase AC charging of 32A, and the current can be switched between 8A, 10A, 13A, 16A, 20A, 24A, 32A. -
Page 4: Configuration Manual
CONFIGURATION MANUAL ADJUST CURRENT: tap for 2 seconds until all green LEDs start flashing, then click to select current, choose from 6A to 32A. CHARGING DELAY TIME: Click to set the charging delay time from 0 to 5 hours (each click adds 0.5 hours). METERING RESET: Press and hold the button for more than 5 seconds to reset the accumulated charging power. - Page 5 STATUS OF LED DISPLAY LED display status Status Green 1 Green 2 Green 3 Current indication Available power supplies Linked Blink Blink Blink Reserved Blink Charging Bicycle lighting Finishing Fault Blink x time...
- Page 6 HOW TO USE? Step 1: Step 2: Step 3: Plug the plug of the portable EV charger Select the current and charging delay time Connect the cable of the portable charger into a suitable electrical outlet. as required. to the electric po- ride to start charging. Step 4: Step 5: Step 6:...
-
Page 7: Error Code And Troubleshooting
ERROR CODE AND TROUBLESHOOTING ► If there is a fault, the charger will stop generating current and will not charge. ► Charging should be resumed after the fault is checked and corrected. LED status Reason LCD error code Solution Flash 1 time RCD leakage protection Switch off and check the electric car and charger Flash 2 times... -
Page 8: Maintenance And Cleaning
MAINTENANCE AND CLEANING CLEANING ► Disconnect the portable EV charger from the power outlet and the vehicle. ► Clean the device from the outside only. Use a soft, slightly damp or anti-static cloth. ► Do not use detergents or chemicals to clean the device. CONSERVATION ►... - Page 9 EXPLANATION OF SYMBOLS (IN THIS MANUAL AND/OR ON THE CHARGING DEVICE)
- Page 10 CONTACT MOBILE: +48 696 673 646 OFFICE@EVBGROUP.PL E-MAIL: WWW.EVBGROUP.PL...
