WaterLink SpinTouch BC Manual
Hide thumbs Also See for SpinTouch BC:

Advertisement

Quick Links

The Future of
Water Testing
BC
n
Touch

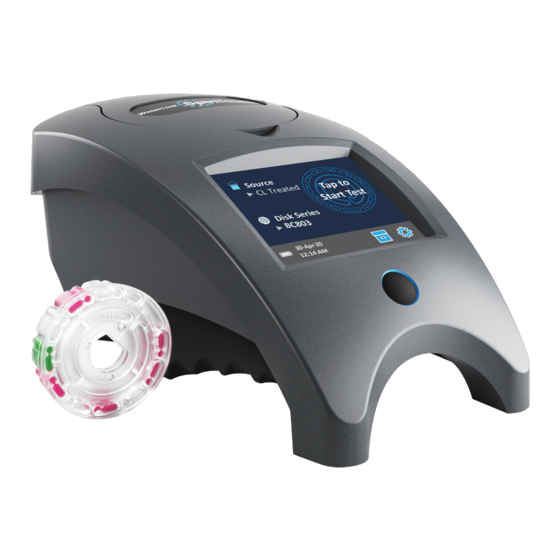

WaterLink
Centrifugal
Fluidics
Photometry
TM
Code 3586

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SpinTouch BC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WaterLink SpinTouch BC

  • Page 1 The Future of Water Testing Touch WaterLink Centrifugal Fluidics Photometry Code 3586...
  • Page 3: Before First Use

    3. Open the WaterLink Connect 2 desktop application and wait for the update to complete. Once the update is complete, it is safe to close WaterLink Connect 2 and unplug the lab. After updating the firmware, it is recommended that the LED Calibration and Angle Calibration procedures be performed.
  • Page 4: Device Connection

    Other Bluetooth printers are not supported. It is not necessary to pair the Spin Touch to the Bluetooth enabled device. Barriers to wireless signals can reduce the range of wireless devices. The Waterlink Spin Touch will work best if there are no walls between it and the receiving devices.
  • Page 5 For filling and troubleshooting tips go to: www.lamotte.com/spin_support/ NOTICE! Colored or turbid water samples: The WaterLink Spin Touch uses the blank sample well in the disk to ratiometrically correct for normal levels of color and turbidity in clean samples. Scatter...
  • Page 6: General Operating Procedures

    The WaterLink Spin Touch is not recommended for analyzing samples that have medium to high color or medium to high levels of turbidity. GENERAL OPERATING PROCEDURES METER When a filled disk is placed in the chamber and the lid is closed, the meter spins at high speed to distribute the sample to the test wells.
  • Page 7 ¬ Avoid touching the screen with wet fingers. TESTING Source CL Treated Tap to Start Test Disk Series BC803 19-May-20 12:14 PM 1. Press and hold until the meter turns on. 2. Tap . Select a Water source. Tap to confirm. 3.
  • Page 8 SAVE, PRINT, AND SEND TEST RESULTS Test results can be saved, transferred to the WaterLink Connect 2 mobile app via Bluetooth, and sent to the BLE Mobile Printer (5-0067). Test Results Test Time 05:30:06 19-May-2020 FCL 2.06 Ca HARD 0 TCL 2.06...
  • Page 9: Reagent Disk

    Replace the syringes when the tips become worn, or the plungers don’t move smoothly. See Accessories and Replacement Parts. REAGENT DISK The Waterlink Spin Touch uses a SpinDisk reagent system. The dried ™ reagents are packaged in single test amounts in a sealed, polystyrene disk.
  • Page 10: Disk Handling

    For use of the Meter Check Disk see TROUBLESHOOTING WITH THE METER CHECK DISK. USB CABLE A USB cable connects the Waterlink Spin Touch to a Windows-based PC. When used with the AC Power Adapter, it connects the meter to an AC outlet.
  • Page 11 battery will fully charge in approximately 6 hours. The battery is designed to be charged overnight and should be charged indoors only. The battery is rated at 12 V and 8.1 AH capacity. Power the meter from the battery pack or from AC power. The USB cable and AC adapter are used to plug the meter into an AC outlet.
  • Page 12 Other About… lists the Serial Number, Firmware Version, Bluetooth MAC address, Bluetooth Version and Test Count. The Test Count shows the number of Settings complete tests that have been performed over the lifetime of the meter. to return to the Settings menu. Ranges Enabled allows the option of having test results that are out of the range of the reagent system displayed in red.
  • Page 13 DISK DESCRIPTIONS Cooling Water Disk CW801 (Code 4339) Low Range High Range Total Hardness Total Hardness Calcium Bromine Total Alkalinity Hardness Total Chlorine Calcium Hardness Total Chlorine Copper Empty Combined Chlorine Total Hardness Copper Total Iron Total Total Free Chlorine Iron Alkalinity Empty...
  • Page 14: Accessories And Replacement Parts

    1715 AC Adapter (Europe) 1715-EU Cloth Wipe 3580-WIPE BLE Mobile Printer 5-0067 Waterlink Spin Touch Counter Mat 3580-MAT Waterlink Spin Touch Manual 3586-MN Waterlink Spin Touch Quick Guide 3586-QG For available reagent disks, see Disk Descriptions. WARNING: only use the USB cable and wall adapter that are supplied with the kit. Make no substitutions.
  • Page 15 Internet updateable (New Test, New Test Calibrations, etc.). Requires a USB connection to Windows PC Software WaterLink Solutions (Web, Android, iOS), DataMate Web (Web, Android, iOS), WaterLink Connect 2 (Windows) Power Requirements USB wall adapter, USB computer connection or internal lithium...
  • Page 16: Troubleshooting Guide

    Dirty disk cover Gently clean disk cover apertures with pipe cleaner or lint free cloth. Disk type is not an option Software or meter firmware is Update WaterLink Connect 2 at in Disk Series out of date. softwarecenter.lamotte.com High pH results Water sample temperature above For water samples over 100 °F...
  • Page 17 USB 1 second. Results not printing Printer not on Turn printer on Connect to BLE Mobile Printer The Waterlink Spin Touch will only (5-0067) print to the BLE Mobile Printer (5-0067) TROUBLESHOOTING WITH THE METER CHECK DISK IMPORTANT!! Do not attempt to separate the components of the Meter Check Disk (Code 1705/1705- EU).
  • Page 18: Helpful Hints

    MAINTENANCE CLEANING The optical system of the Waterlink Spin Touch must be kept clean and dry for optimal performance. Dry the disk with a lint-free wipe before placing it into the chamber to avoid introducing moisture. For best results, store the instrument in an area that is dry and free...
  • Page 19: Meter Disposal

    from aggressive chemical vapors. Clean the exterior housing with a damp, lint-free cloth. Do not allow water to enter the light chamber or any other parts of the meter. To clean the light chamber and optic lenses, point a can of compressed air into the light chamber and the lid and blow the pressurized air into the light chamber and lid.
  • Page 20: General Precautions

    Read the instruction manual before attempting to set up or use the instrument. Failure to do so could result in personal injury or damage to the meter. The Waterlink Spin Touch should not be stored or used in a damp or excessively corrosive environment. Care should be taken to prevent water or reagents from entering the photometer chamber.
  • Page 21: Warranty

    WARRANTY LaMotte Company warrants this instrument to be free of defects in parts and workmanship for 2 years from the date of shipment. Keep the proof of purchase for warranty verification. If it should become necessary to return the instrument during or the warranty period, contact LaMotte Pacific emailing support@lamottepacific.com for a return authorization...
  • Page 24 Water Testing Leader Since 1919 LaMotte Company 802 Washington Ave | Chestertown, MD 21620 USA | 410-778-3100 www.waterlinkspintouch.com LaMotte, WaterLink, Spin Touch are ® registered trademarks of LaMotte Company | ©2023 LaMotte Company, All Rights Reserved 3586-MN | 01.17.2024 | REV1...
