OPERATION

QUICK HEIGHT CHAIRS ONLY

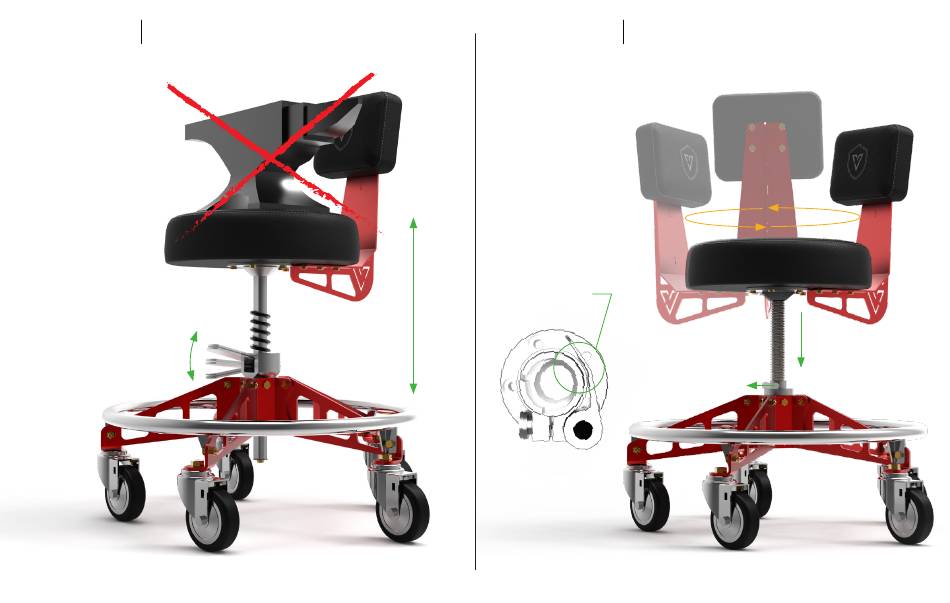

QUICK HEIGHT OPERATION
TO LOWERING THE SEAT:
REMOVE WEIGHT FROM
SEAT. WHILE HOLDING SEAT
WITH ONE HAND, PULL
UP ON THE LEVERS AND
PUSH THE SEAT DOWN TO
DESIRED HEIGHT, RELEASE
THE LEVERS.
* TO AVOID INJURY OR
DAMAGE TO THE CHAIR,
DO NOT PULL LEVERS
WHILE SITTING ON CHAIR!
THE SEAT WILL DROP
QUICKLY RESULTING IN
INJURY OR DAMAGE TO
THE CHAIR.
TO RAISING THE SEAT:
REMOVE WEIGHT FROM
SEAT. WITH BOTH HANDS
OPPOSITE EACH OTHER
ON THE SEAT, LIFT TO THE
DESIRED HEIGHT.
OPERATION
ACME ROD CHAIRS ONLY
ACME ROD OPERATION:
THREAD ACME ROD
CLOCKWISE INTO ACME NUT
TO LOWER THE SEAT.
* MAX HEIGHT FROM TOP
OF CUSHION TO FLOOR 24"
MAY CAUSE INJURY IF
SEAT IS RAISED ABOVE 24"
FROM FLOOR (REFERENCE
STEP 6A)
TIGHTEN SEAT CLAMP ONCE
SEAT IS AT DESIRED HEIGHT.
ENSURE CLAMP IS PROPERLY
CLAMPED, THE CLAMP
LEVER MUST BE
AGAINST COLLAR.
