VYPER ROBUST STEEL MAX Assembly Manual page 7

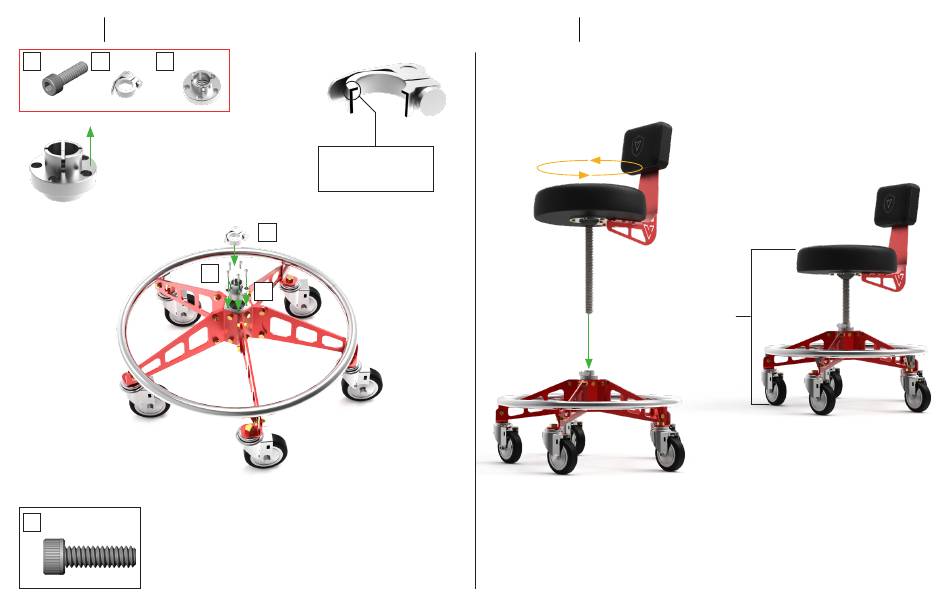

STEP 5A
ACME ROD CHAIRS ONLY
8
19 20
X6 X1 X2
THIS SIDE UP
* ACME SCREW
NUT ORIENTATION
8
1:1
* INSTALL SEAT
CLAMP WITH LIP TO
TOP SIDE
19
8
20
STEP 6A
ACME ROD CHAIRS ONLY
* ROTATE CLOCKWISE
TO INSTALL
* MAX HEIGHT FROM
TOP OF CUSHION TO
FLOOR 24"
MAY CAUSE INJURY IF
SEAT IS RAISED ABOVE
24" FROM FLOOR
