Summary of Contents for Oregon Scientific MP 820
- Page 1 All manuals and user guides at all-guides.com Model: MP 820 User Manual 10/5/04, 11:05 AM MP820 Eng Cover r3...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com DIGITAL MP3 PLAYER (MP820) USER MANUAL CONTENTS Introduction ................. 1 Package Contents ..............1 Product Overview ............... 2 Front / Top View ..............2 Side View ................2 LCD Display Symbols ............3 Getting Started ................ - Page 3 General Warnings ..............18 About Noise ................19 Cleaning Your MP3 Player ........... 19 Storage ................. 19 Caution ..................19 Technical Specifications ............20 About Oregon Scientific ............21 FCC Statement ................21 10/5/04, 11:05 AM MP820 Eng contents r3...
-
Page 4: Introduction
All manuals and user guides at all-guides.com INTRODUCTION Thank you for selecting the Oregon Scientific Digital MP3 Player MP820. The sleek, compact MP820 fits easily into a shirt pocket, making it convenient to use wherever you go and at any time. With memory space to store up to 30 radio stations, the unit features an FM receiver. -
Page 5: Product Overview

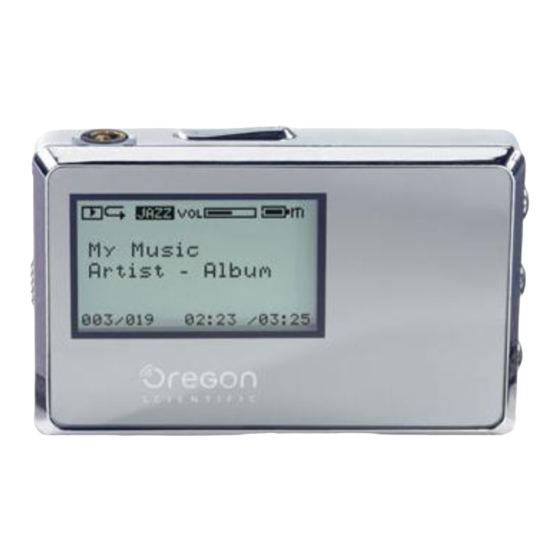

All manuals and user guides at all-guides.com In the box, you will find: • Digital MP3 player main unit • USB cable • Stereo earphone • Software installation CD-ROM PRODUCT OVERVIEW FRONT / TOP VIEW 1. - or : Press to go to the previous track or menu selection, OR decrease volume. -
Page 6: Lcd Display Symbols
All manuals and user guides at all-guides.com LCD DISPLAY SYMBOLS 1. 5-Mode Equalizer 2. 5-Mode Repeat 3. Playing Status 4. Track Title 5. Artist and Album Name 6. Track Number / Total Number of Tracks 7. Volume 8. Battery Indicator 9. -
Page 7: Connecting To A Computer
All manuals and user guides at all-guides.com 5. The firmware upgrade software installation is completed. If you are using Windows 98 / 98SE, the driver is already installed on your computer. WINDOWS 98 / 98SE Installing the MP820 Windows driver will allow your computer to recognize your player each time it is connected to the computer. -
Page 8: Transferring Files
All manuals and user guides at all-guides.com Slide the POWER switch to the "ON" position. Once the player is connected to the PC via the supplied USB cable, the player's LCD shows an icon signaling PC-to-audio player connectivity. If nothing shows on the LCD, press MENU / ON / OFF once to turn on the player. -
Page 9: Disconnecting The Player From The Pc
All manuals and user guides at all-guides.com DISCONNECTING THE PLAYER FROM THE PC WINDOWS 98 / 98SE 1. Double click the My Computer icon. 2. Right click the removable drive letter your player has been assigned. 3. Click "Eject" from list before disconnecting. WINDOWS ME, 2000, XP 1. -
Page 10: Menu Navigation
All manuals and user guides at all-guides.com To turn the player off, press and hold MENU / ON / OFF continuously for about 3 seconds. This can be done whether a track is being played back or not. The LCD shows a bar when MENU / ON / OFF is pressed. -
Page 11: Volume
All manuals and user guides at all-guides.com MAIN MENU / MENU / SUB-MENU SUB-MENU OPTIONS MODE Music, Voice, Exit None Delete Ver. None Total Bytes None Free Bytes None None Exit 1. After the device is turned on, press MENU / ON / OFF to show the main menu / mode list on the LCD. -
Page 12: Modes
All manuals and user guides at all-guides.com MODES The MP820 has 3 main modes: (default mode when player is first turned on), , and . To access each mode: 1. While in the main menu / mode list, use - / or + / navigate to the corresponding mode you want to choose. -
Page 13: Fm Tuner (87.5Mhz - 108Mhz)
All manuals and user guides at all-guides.com NOTE: If there is no recorded file, the LCD shows a dotted line across the screen. NOTE: The backlight is turned off during recording to avoid any noise that may result from having the backlight on. FM TUNER (87.5MHZ - 108MHZ) While in mode, press... -
Page 14: Adjusting The Settings
All manuals and user guides at all-guides.com 3. To search manually, press - / or + / in rapid succession until a station is found. The player automatically begins audio playback of the station. STORE 1. When auto searching finishes and stops at a station, press to switch from "Search"... -
Page 15: Playmode (Repeating Tracks)
All manuals and user guides at all-guides.com PLAYMODE (REPEATING TRACKS) Use - / or + / to select from 5 repeat track settings and press MENU / ON / OFF to confirm and save. ICON RPT PATTERN DESCRIPTION All tracks are played once from the first Normal track to the last track. -
Page 16: Delete
All manuals and user guides at all-guides.com 3. During playback between A and B, press A-B / REC again or use VOL / SEARCH to choose the previous or next track to automatically to cancel the repeat A-B function. DELETE 1. - Page 17 All manuals and user guides at all-guides.com 1. Connect your player to the computer. 2. From your computer, go to Start>Programs>Oregon Scientific MP820>Firmware Upgrade. 3. The current and updated firmware version is displayed in a window. You are given the option to format your MP3 player before the firmware upgrade.
-
Page 18: Formatting The Audio Player
All manuals and user guides at all-guides.com 5. Click the Close button to close the software once the process is completed. 6. Unplug the MP3 player from the computer. FORMATTING THE AUDIO PLAYER 1. In Windows Explorer, select the d r i v e l e t t e r o f y o u r p l a y e r assigned by the computer. -
Page 19: Troubleshooting
MP3 format supported by this audio player. Note that the player may not be able to play back digitally protected content. Please check the Oregon Scientific website for the latest firmware updates. What .WAV formats does the audio player support? The device supports .WAV files based on the IMA ADPCM format. -
Page 20: Copyright
All manuals and user guides at all-guides.com Why is the audio player not working properly, i.e., always shutting off? If you encounter any operational failures due to improper use of the device, turn the unit off and wait a few minutes before turning the audio player on again. -
Page 21: General Warnings
All manuals and user guides at all-guides.com GENERAL WARNINGS • Do not attempt to repair the audio player yourself or make any changes or modifications to this product. Contact the retailer or our customer service department if your product requires servicing. -
Page 22: About Noise
All manuals and user guides at all-guides.com • The technical specifications for this product and the contents of the user guide are subject to change without notice. • Never use headphones/earphones while driving, cycling, or operating any motorized vehicles. • Listening to music at high volume for long periods of time may damage your hearing. -
Page 23: Technical Specifications
All manuals and user guides at all-guides.com TECHNICAL SPECIFICATIONS TYPE DESCRIPTION Recording Medium Built-in 128MB, 256MB or 512MB Flash memory (refer to indication on packing) Maximum Approx. 8 hours (128MB) Recording Time Approx. 16 hours (256MB) Approx. 32 hours (512MB) Input Built-in microphone Output... -
Page 24: About Oregon Scientific
We hope you will find all the information you need on our website, however if you'd like to contact the Oregon Scientific Customer Care department directly, please visit: www2.oregonscientific.com/service/ support Call 949-608-2848 in the US. - Page 25 CAUTION: Modification -The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Oregon Scientific, Inc. may void the user 's authority to operate the equipment. Interface cable -Use the shielded cable sold or provided by Oregon Scientific, Inc.
- Page 26 All manuals and user guides at all-guides.com © 2004 Oregon Scientific. All rights reserved. 10/5/04, 11:05 AM MP820 Eng Back r3...
