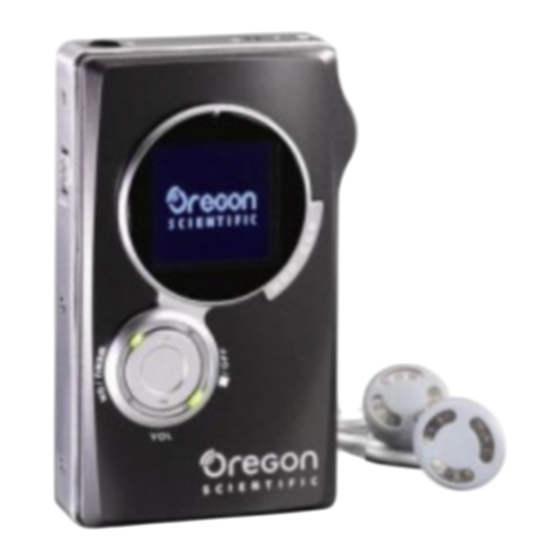

Summary of Contents for Oregon Scientific MP306

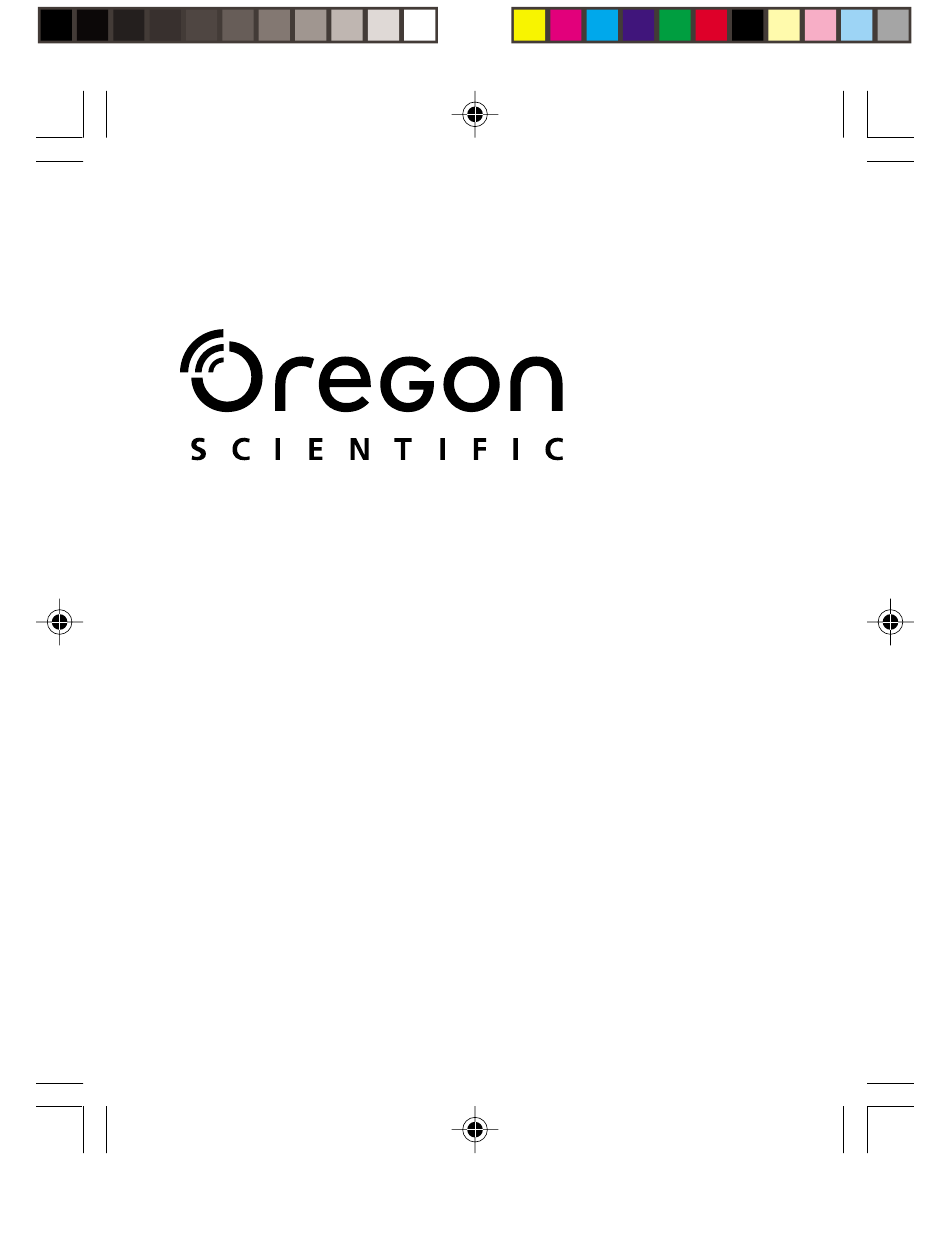

- Page 1 Model: MP306 User Manual Manuale d'uso Manuel d'utilisation 1/25/05, 5:51 PM MP306 Eng Manl F (V1.0)
-
Page 2: Table Of Contents
Playmode (Normal, Repeat Track) ........13 Palylist on the Go ..............13 For Voice Files ..............14 Modes ..................15 Music Mode ................15 Radio Mode (87.5 - 108MHz) ..........15 Record Mode ................ 17 1/25/05, 6:04 PM MP306 Eng Manl C (V1.0) ¶´ƒ... - Page 3 The HOLD Switch ..............24 Copyright ................... 24 Safety and Care ................. 24 Troubleshooting ................ 25 Hardware ................25 Technical Specifications ............26 About Oregon Scientific ............27 FCC Statement ................27 Ver. 1.0 1/25/05, 6:04 PM MP306 Eng Manl C (V1.0) ¶´ƒ...
-
Page 4: Introduction
INTRODUCTION Congratulations on your selection of the MP306.This full-featured MP3 music player offers a variety of features including multi-format data storage support, and you can also transfer files easily via a USB2.0 connection. Your player supports multiple audio standards such as... -
Page 5: Product Overview
Microphone Strap hole / PREV / NEXT key - start and pause playback / review current or previous song USB connection AC adaptor jack HOLD switch BATTERY ON / OFF switch 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 6: Attaching Earphones / Neck Strap
• Intel® Pentium® 133MHz or faster • CD-ROM drive • USB1.1 port or USB2.0 port • 10MB free hard disk space • Microsoft® Windows®, 98SE, ME, 2000, or XP • Mac OS9.0 or above 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 7: The Battery On / Off Switch
WINDOWS 98 DRIVER INSTALLATION (& FOR 98SE USERS) Windows ME, 2000, XP users When you connect your MP306 player to your PC, it will appear as a removable drive (i.e. "Removable Disk (H:)"). Windows 98SE users Installing the MP306 driver software will allow your computer to recognize your MP3 player each time it is connected to the computer. -
Page 8: Connecting Your Mp3 Player To Your Computer
• Windows 2000 / ME / XP will automatically detect the player and assign it with next available drive letter. (i.e. "Removable Disk (H:)") • For Windows 98SE, the driver is in the MP306 CD so the user can install the driver for PC connection. -
Page 9: Disconnecting Your Mp3 Player From Your Pc
15 seconds after the audio or data file transfer is complete to prevent any data loss that may occur. CHARGING YOUR MP3 PLAYER Before using your MP306 player for the first time, you should first charge the battery by connecting your player to the computer using the supplied USB cable. -
Page 10: Charging With The Ac Adaptor
To turn on your MP3 player: 1. Press and hold the MENU / ON button for 2 seconds. The Oregon Scientific "splash screen" will appear to indicate system software is loading from the hard disk drive. When the unit is fully powered on (all system software loaded and active), the unit will display the Main Menu. -
Page 11: Power Off
NOTE: Folders are created when recordings are made. NAVIGATING THROUGH THE MENUS • Selecting the Browser option takes you to the Music folder, where you can organize your files / songs according to artist, album or genre. 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 12: File Transfer
NOTE: If no button is pressed within 2 seconds, the player returns to the previous screen. FILE TRANSFER After connecting your MP306 to the computer, the computer will detect and identify the device as a removable storage drive, allowing you to drag and drop files between your computer and your player. -
Page 13: Playback Operation
MENU / ON button to select. (If a music file is selected, the display will change to the playback screen and the file will be stopped, but ready for playback). 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... - Page 14 "Record" or "Power Off") is selected. To return to the folder from which the music files were selected for playback: Press and hold the button. (Audio playback will continue until another file is selected for playback). 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ...
-
Page 15: Organize Music
Artist, Album and Genre (in each of the respective folder). Back: This feature will bring you back to the previous screen. 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 16: Playmode (Normal, Repeat Track)
The Playlist function is for creating and renaming playlist on the player "on the go." To use the Playlist function: 1. Select or de-select files in the Browser using the VOL+ key. 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 17: For Voice Files
NOTE: Voice files are recorded in ADPCM format, and are displayed as .WAV files. The playback feature for Voice files operates the same as for Music files. Please see the section FOR MUSIC FILES above for instruction. 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 18: Modes
NOTE: During the first time you access the Radio mode, the player will do a one-time auto-select of radio channels and save them in sequential order. While auto saving channels, the buttons are locked. 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... - Page 19 MENU / ON button. (You will return to the Main Menu). The display in the Radio mode, you will see: 1. Button hold indicator 2. Battery status indicator 3. Frequency display (e.g. 102.35MHz) 4. Information display 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ...
-
Page 20: Record Mode
Recording may not be paused - it will continue until the / OFF key is pressed. When the / OFF key is pressed, the recorded file is closed and the user is returned to the Main Menu. 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 21: The Settings Menu
MENU / ON button. The Settings menu is the only menu that allows the user to configure the operation of your MP3 player. 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 22: Equalizer (Eq)
The contrast is normally set to 50% for readability and power management. To increase or decrease the contrast setting: 1. On the Main Menu, use the key to scroll down to select "Settings." 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 23: Auto Dimmer
When the desired setting has been reached: 6. Press the or MENU / ON button to return to the "Settings" Menu, or press and hold the or MENU / ON button to return to the Main Menu. 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 24: Power Savings
MENU / ON button to return to the Main Menu. RECORD SETTINGS The Record Settings sub-menu is used to: • Determine the source of a recording. • The type of encoding (default encoding is ADPCM). • The data rate for encoding. 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 25: Language Settings
LANGUAGE SETTINGS The following languages are supported: European languages: • English (default language) • French • German • Italian • Portuguese • Spanish Asian languages • Simplified Chinese • Traditional Chinese 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 26: Using The Data Folder
"Yes" or "No" and then press button. When you have deleted the file or folder, you will be returned to the folder level in which the file, or folder, was originally placed. 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 27: The Hold Switch
• Do not tamper with the internal components. • Do not scratch the LCD display. • Do not make any changes or modifications to this product. • Unauthorized changes may void your right to use the product. 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 28: Troubleshooting
If you are using Win98SE, make sure you have installed the driver software. Cannot store any more files on the player. The memory may be full. Delete files to make some room. 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 29: Technical Specifications
WMA (variable bit rate) Player firmware: Upgradeable via www.oregonscientific.com * Various factors can affect battery life, such as ambient temperature or playback volume. NOTE: Design and specifications are subject to change without notice. 1/25/05, 5:54 PM MP306 Eng Manl (V1.0) ¶´ƒ... -
Page 30: About Oregon Scientific
We hope you will find all the information you need on our website, however if you'd like to contact the Oregon Scientific Customer Care department directly, please visit: www2.oregonscientific.com/service/support Call 949-608-2848 in the US. - Page 31 CAUTION: Modification - The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Oregon Scientific, Inc. may void the user 's authority to operate the equipment. Interface cable-Use the shielded cable sold or provided by Oregon Scientific, Inc.
- Page 32 © 2005 Oregon Scientific. All rights reserved. 086-003821-018 1/25/05, 5:56 PM MP306 Eng Manl B (V1.0)
