Vulcan-Hart VL2G Specifications

SPECIFICATIONS:

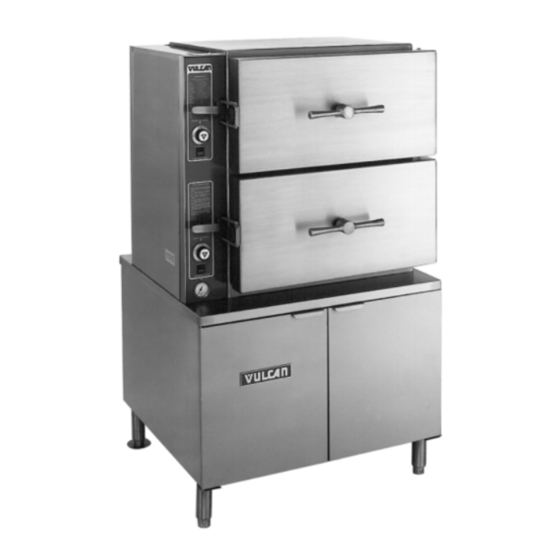

Gas fired boiler, Super Steamer, Vulcan-Hart Model No. (VL2G)
(VL3G). 6 psi pressure steam cooker. Cooker body is 8 gauge
satin finish type 304 stainless steel exterior. 200,000 BTU/hr.
input. Doors have a removable aluminum alloy inner liner with
full perimeter gasket and sealed by turning a "T" type handle.
Lift-out stainless steel wire Adapt-A-Pan™ supports eight
1
2 / ", six 4", or four 6" deep food pans (one for 2 compartments)
2
(two for 3 compartments) and one manual pull out shelf. Water
fall compartment interior bottom to lip out at front. Steamer
mounted on 28" high base cabinet with stainless steel front full
height doors, slip-off stainless steel side and aluminized rear
panel with 6" adjustable legs with flanged feet for anchoring.
Gas fired steam boiler with high pressure limit control and
8 psi pressure relief valve, low water control with automatic fill
and manual blow down.
Exterior dimensions:
VL2G: 36"w x 33"d x 61"h.
VL3G: 36"w x 33"d x 76"h.
CSA design certified. Meets ASME code. Classified by U L to
NSF Std. #4.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-31668 (8-04)
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________
VLG SERIES
SUPER STEAMER, GAS FIRED BOILER
TWO OR THREE COMPARTMENT MODELS
VL2G (SS)
VL3G (SS)
STANDARD FEATURES
Gas fired steam boiler with high pressure limit control and 8
psi pressure relief valve, low water control with automatic fill
and blow down. 200,000 BTU/hr. input.
6 psi pressure steam cooker.
Cooker body is 8 gauge satin finish type 304 stainless steel
exterior. Doors have a removable aluminum alloy inner liner
with full perimeter gasket and sealed by turning a "T" type
handle.
Automatic timed cooking controls with exhaust.
Lift-out stainless steel wire Adapt-A-Pan™ supports eight
2 1 / ", six 4" or four 6" deep food pans (one for 2 compartments)
2
(two for 3 compartments) and one manual pull out shelf.
Water fall front edge compartment interior bottom to lip out at
front.
Steamer mounted on 28" high base cabinet with stainless
steel front full height doors, slip-off stainless steel side and
aluminized rear panel with 6" adjustable legs with flanged feet
for anchoring.
One year limited parts and labor warranty.
OPTIONS
Correction package:
a. Cabinet door with hasp (lock by others).
b. Security type tamper resistant fasteners.
c. Control cover (lock by others).
Stainless steel cabinet base back.
Stainless steel main frame.
240,000 BTU/hr. boiler.
Mount and interconnect boiler base and kettle modules at
factory. Shipped on one skid.
Second year extended limited parts and labor warranty.
ACCESSORIES
Stainless steel back panel.
Water treatment system.
C.S.I. Section 11420
