Exploded Drawing And Parts List - Maxxus MX 10.0Z Installation & Operating Manual

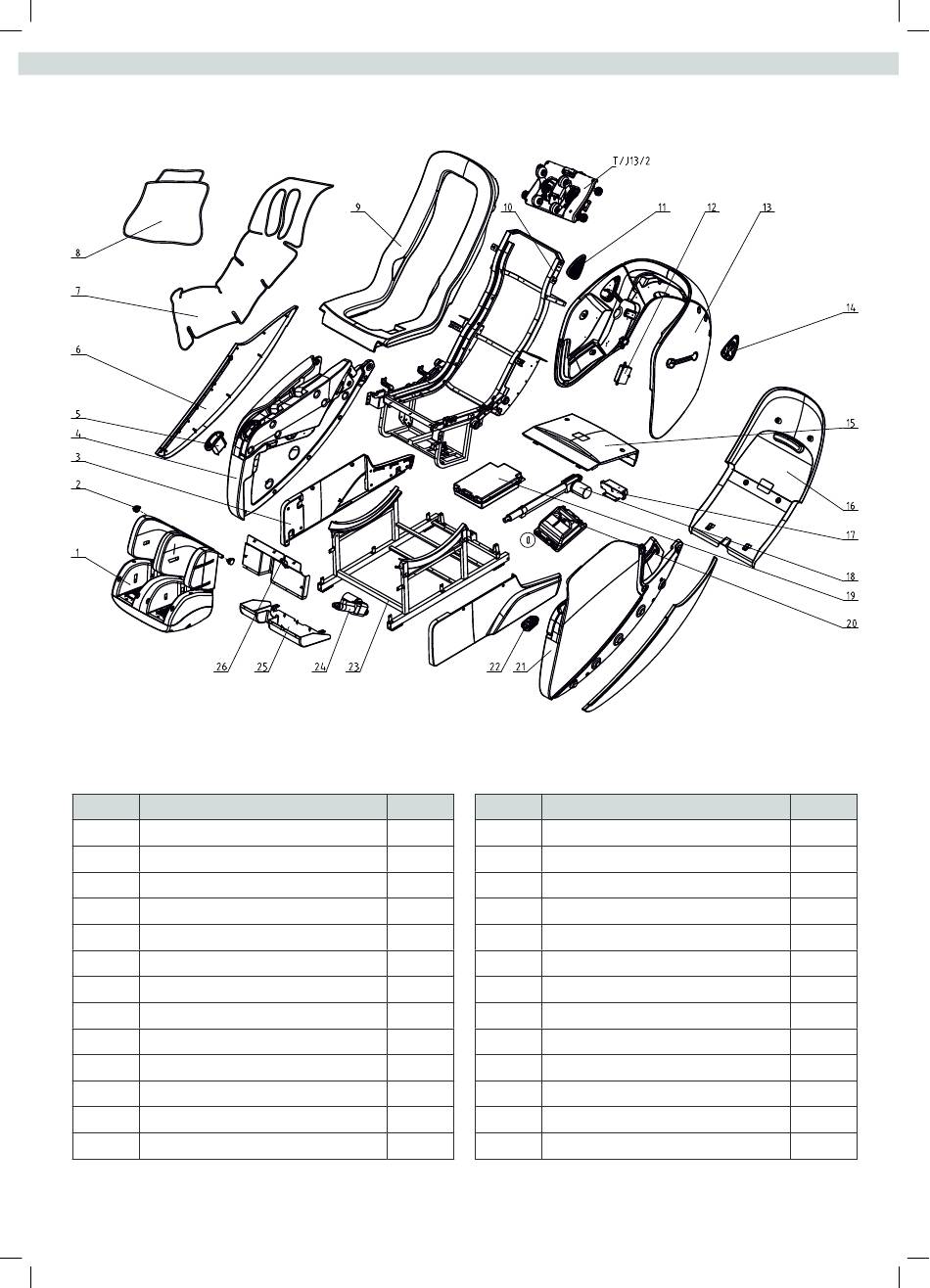

Exploded Drawing & Parts List
Part No. Description
1 Footrest
2 Fixing block
3 Side cover
4 Side frame, right
5 Storage compartment
6 Side cover (right & left)
7 Back upholstery
8 Head cushion
9 Seat shell
10 Seat frame
11 Loudspeaker cover, right
12 Cover board
13 Housing, top
Qty Part No. Description
1 14 Loudspeaker cover, left
2 15 Cover, bottom
2 16 Cover, back area
1 17 Mains switch box
1 18 Hydraulic cylinder
1/1 19 Control unit
1 20 Air pressure control
1 21 Side frame, left
1 22 Control unit
1 23 Base frame
1 24 Hydraulic cylinder, foot unit
1 25 Cover, bottom
1 26 Cover, front
20
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
