Assembly - Maxxus MX 10.0Z Installation & Operating Manual

Floor Protection
As the massage chair is very heavy, it is recommended to lay down some oor protection particularly or oors
such as parquet, laminate etc which could easily become damaged. You could use a rug or piece of carpet for
this or alternatively a MAXXUS oor protection mat.

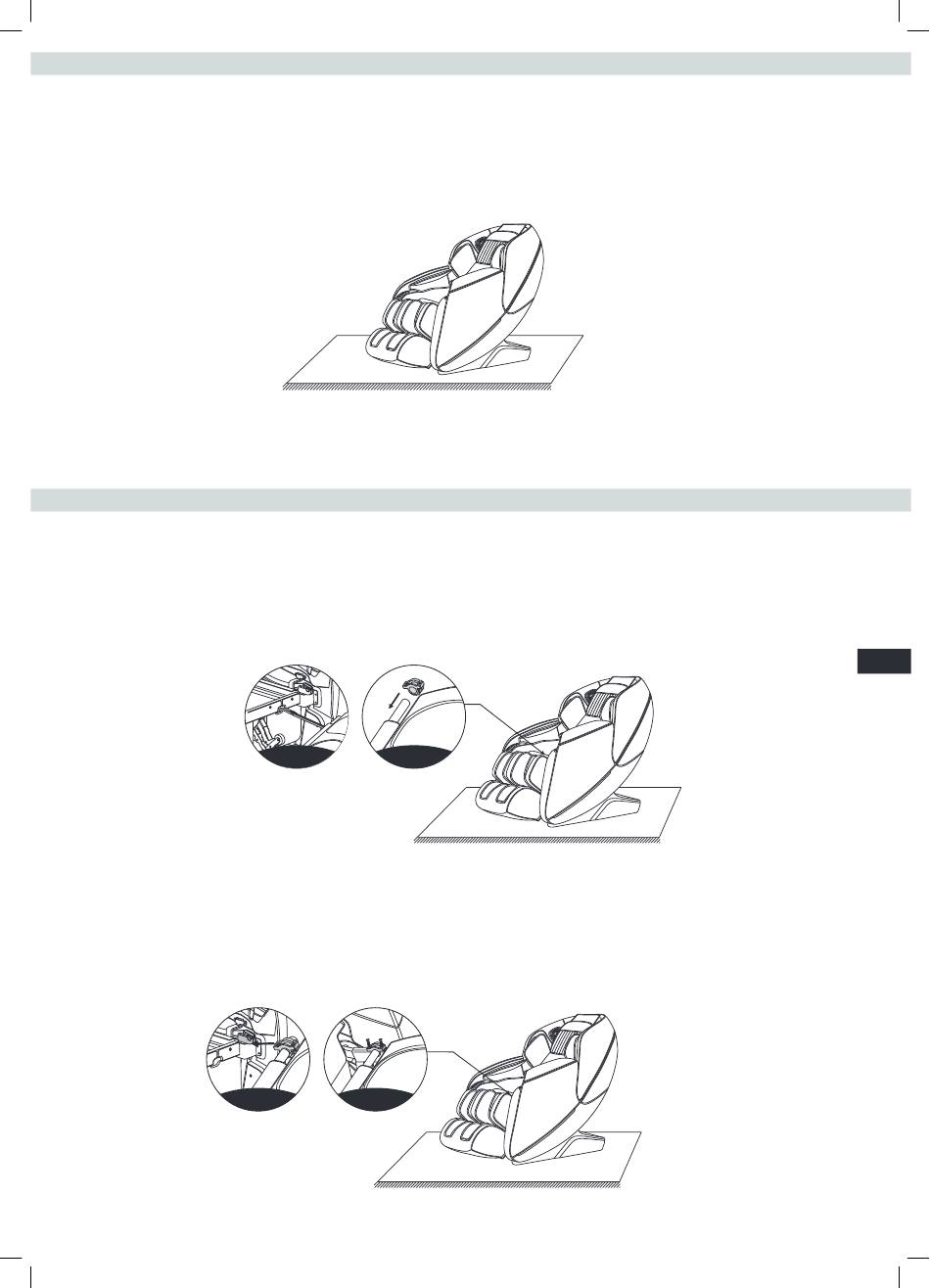

Assembling the Foot Rest
Step 1 - Fig 1:
Connect the air hose and the wiring harness between the foot rest and the base frame. Push the extra cable
back into the frame.
Step 2 - Fig 2:
Insert the xing elements to the right and let cross tube on the oot rest.
1
Step 3 – Fig 3:
Insert the xing elements assembled in Step 2 into the mounting hooks on the massage chair.
Step 4 – Fig 4
Fix each xing element with 2 M4 screws. Make sure that you do not crush or damage either the air hose or the
wiring harness when you do this.
3
2
4
17
