Summary of Contents for Maxxus MX 10.0Z

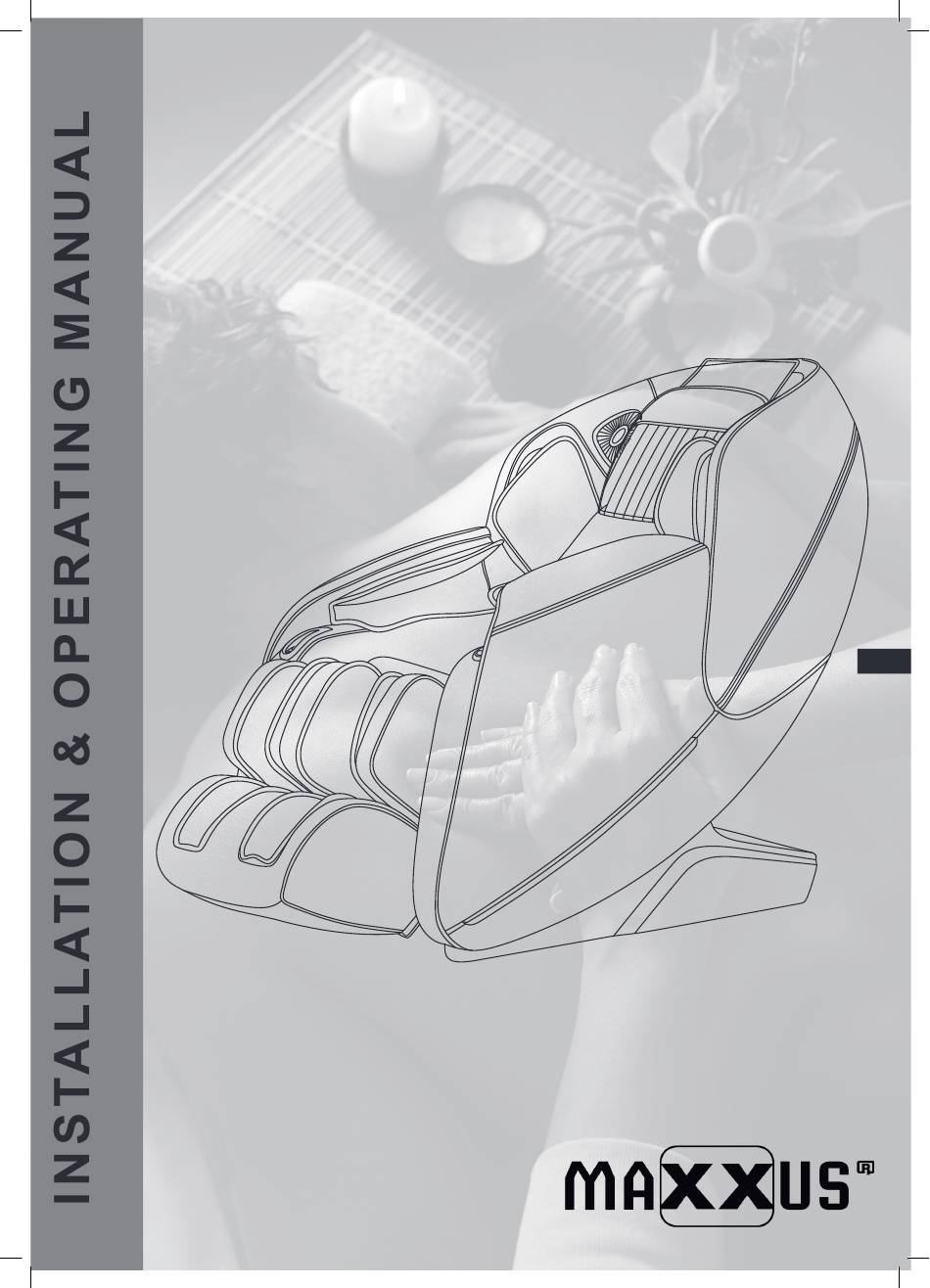

- Page 1 Massage Chair MX 10.0Z...
-
Page 2: Table Of Contents
This publication may not be reproduced, stored in a retrieval system, or transmitted in whole or in part, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without the prior written permission of Maxxus Group GmbH & Co. KG. -
Page 3: Safety Instructions
− To protect delicate oors, such as wood, laminates, tiles, etc. rom damage such as scratches it is advisa- ble to place a MAXXUS® oor protection mat permanently under the device. − Make sure that the mat is secured against slipping. - Page 4 Safety Instructions Personal Safety Instructions for Training − Remove the power cable whenever the massage chair is not in use to prevent improper or uncontrolled use by third parties such as children. − You should consult and have a health check with your doctor beore using the massage chair or the rst time.
- Page 5 Safety Instructions When the footrest is raised, do not exert any pressure on the footrest as this may cause the massage chair to tip orwards and cause damage to the massage chair parts and/or injure people. Do not press down. Before you sit down in the massage chair make sure that the seat cushion is correctly positioned in the mas- sage chair.
-
Page 6: Overview - Massage Chair
Overview - Massage Chair FUSE: T5AL 250V ON/OFF POWER INPUT... - Page 7 Overview - Massage Chair Head Cushion Digital 3D Speaker Airbag for Shoulder/Upper Arms Airbag for Lower Arms Storage for Remote Control USB Connection Seat Cushion Airbag for Calves Foot Unit 10. Back Cushion 11. Arm Rest 12. Control Unit/Quick Selection Keys 13.
-
Page 8: Overview - Remote Control
Overview - Remote Control zero... - Page 9 Overview - Remote Control LCD Display On/Of Key To switch the massage chair on or o. Pause Key To stop or start all massage functions. Key to Set the Time Key to Adjust the Automatic Reclining Position There are three automatic reclining position adjustments to choose rom. Key to Lift the Foot Unit Key to Select the Manual Massage Programs For information please read page 11 of this manual...
-
Page 10: Operation
Operation 1. Mains Connection Fuse T5AL 250V ON/OFF Mains Cable Connection Connect the mains cable to the connection on the massage chair. Then connect the mains plug on the mains cable to a power socket. CAUTION: The massage chair may only be connected with the mains cable included in delivery to a power socket individu- ally grounded with a 16A fuse and which has been installed by a professional electrician. - Page 11 Operation Massage Programs Description Display F1 Auto Comfort Full body massage to the relax the muscles F2 Auto Relax Deep tissue massage of the most important acupressure points to relax and reduce muscle pain In this massage the backrest and foot unit are continually lowered and raised. Intensive air pressure mas- F3 Auto Stretch sage, stretching and traction of the legs.
- Page 12 Operation Manual Massage Function Massage Type Display Adjustment Options Shiatsu Speed and Width Kneading Massage Speed Manual Tapping Massage Width Massage Combination: Kneading & Tapping Speed Knocking Massage Speed and Width Adjustment Options Speed Adjustable to 5 levels Width Adjustable to 3 levels You can select the dierent types o...
- Page 13 Operation Air Pressure Massage (Airbags) Function Description Display Adjustment Options Air pressure massage of the legs and To 3 levels or o arms Air Pressure Air pressure massage arms To 3 levels or o Massage Air pressure massage of the legs To 3 levels or o...
- Page 14 Operation Adjustment of the Reclining Position Function Description Raising Func- If you press and hold this key the back rest will simultaneously come up and the leg rest tion will go down. A signal will sound when the maximum upwards position for the back rest and down- wards position for the foot rest have been reached and both will stop there.
- Page 15 Operation Control Unit and Quick Selection Keys Left Arm Rest Right Arm Rest AUTO On/Of Key Switches the massage chair on and o. Key to Adjust the Reclining Position Push the key upwards and the back rest will slowly move downwards and the foot unit raised up. When you are in your desired position, release the key.
- Page 16 Operation Switching Of the Massage Chair When the current massage is nished, switch the massage chair o at the main switch. Safety Note: To avoid third parties (eg. children) using the massage chair unsupervised, remove the mains cable by rst removing the plug from the power outlet and then disconnecting the cable from the connection on the massage chair.
-
Page 17: Assembly
As the massage chair is very heavy, it is recommended to lay down some oor protection particularly or oors such as parquet, laminate etc which could easily become damaged. You could use a rug or piece of carpet for this or alternatively a MAXXUS oor protection mat. Assembly... -
Page 18: Location & Storage
MAXXUS® Special Foam Cleaner Use for regular cleaning of your training device. Plastic covers and metal frames can be easily cleaned and perfectly maintained with MAXXUS ® Special Foam Cleaner. It is also suitable for cleaning pulse belts and other training accessories. -
Page 19: Care, Cleaning & Maintenance
nished and the device has been restored back into perect condition. You may only carry out repair works to the massage chair yourself if you have gained advice and permission from the MAXXUS Service Team in advance. Cleaning Clean your massage chair regularly. -
Page 20: Exploded Drawing And Parts List
Exploded Drawing & Parts List Part No. Description Part No. Description Footrest Loudspeaker cover, left Fixing block Cover, bottom Side cover Cover, back area Side frame, right Mains switch box Storage compartment Hydraulic cylinder Side cover (right & left) Control unit Back upholstery Air pressure control Head cushion... -
Page 21: Notes
Notes... -
Page 22: Warranty
The warranty period for your training device starts on the date of purchase and applies solely to products which were purchased directly from the MAXXUS Group GmbH & Co KG or one of the MAXXUS Group GmbH & Co KG direct and authorised distribution partners. -
Page 23: Service Contract
I accept the General Terms and Conditions of MAXXUS® Group GmbH & Co. KG. I hereby instruct the company MAXXUS® Group GmbH & Co. KG to repair the above defects. In Warranty cases I will not be charged for the cost. The costs for repairs which are excluded from liability for defects in quality will be charged to me and must be settled immediately. - Page 24 Maxxus Group GmbH & Co. KG Nordring 80 D-64521 Groß-Gerau Germany E-Mail: ino@maxxus.de www.maxxus.com...
