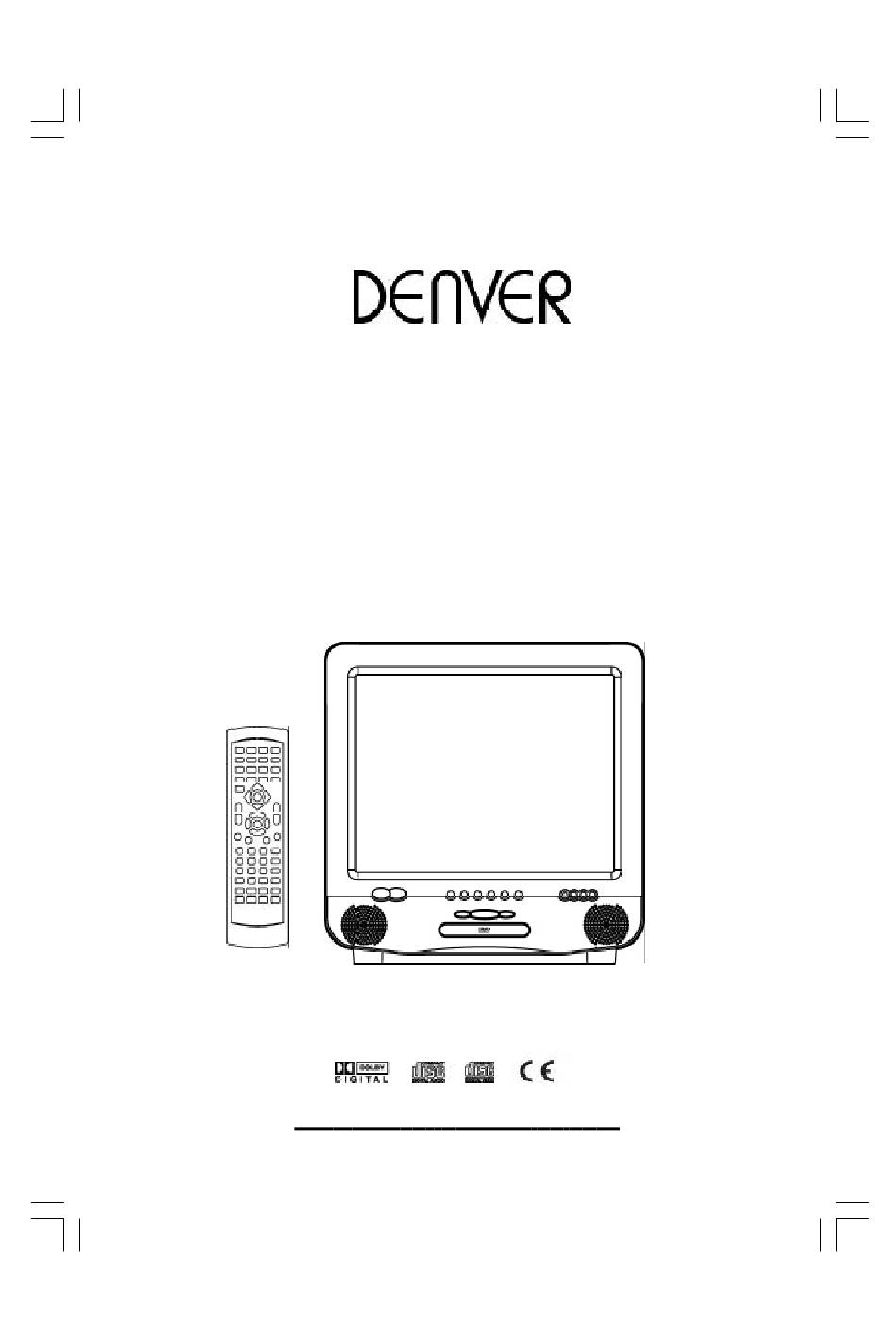

- Page 1 TVD-2102 21" (51cm) COLOUR TELEVISION WITH DVD PLAYER OPERATION MANUAL www.denver-electronics.com P2130(TVD2102)IB English Aug.11.p65 2003/8/12, 下午 04:50...
-
Page 2: Installation
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The graphic symbols on the back cover of the set mean the following: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 3: Laser Safety
CAUTION Never tamper with any components inside your set, or any other adjustment controls not mentioned in this manual. All television receivers are high voltage instruments. Your PICTURE TUBE is highly evacuated. If broken, glass fragments will be violently expelled. Scratching, shipping or undue pressure is dangerous and should be avoided. -
Page 4: Location Of Control
LOCATION OF CONTROL 1. Speaker 2. Power Button 3. Remote Sensor 4. Channel Buttons 5. Volume Buttons 6. TV Menu Button 7. TV/AV/DVD Button 8. Open/Close Button 9. DVD Loader 10. DVD Play Button 11. DVD Stop Button 12. Earphone 13. -
Page 5: Remote Control Unit
REMOTE CONTROL UNIT DVD Subtitle Button Eject Button Mark Button Pal/Ntsc Button Program Button Audio Button +10 Button Angle Button Direction Up Button 10. Clear Button 11. Direction Left Button 12. Pause/step Button 13. TV Channel Buttons 14. Fast Reverse Button(Back) 15. - Page 6 OPERATING THE TELEVISION RECEIVER Connect your TV aerial to the aerial input socket located on the back of the TV. Push the Main Power Switch, Power Indicator will be illuminated. After a few seconds the TV screen will light up. Should white dots appear on the screen the TV will require tuning into the available TV stations in your area.
- Page 7 PICTURE 1. Press the MENU button to main MENU. 2. Press the VOL button / select the PICTURE mode . 3. Press the CH button / to select the BRIGHINESS / COLOR / CONTRNST / SHARPNESS as show in figure 4. BRIGHTNESS 30 4.
- Page 8 OPERATING THE TELEVISION RECEIVER CHANNEL SELECT AND VOLUME CONTROL 1) Press CH. / buttons to select TV station. (TV Mode Only) Press CH." ", the program no. will Press CH. " ", the program no. will appear on the top rihgt corner and change from lower no.
-
Page 9: Operating With Remote Control
OPERATING WITH REMOTE CONTROL TO SELECT TV STATION USING THE PROGRAM NUMBERS: • Program Number Up and Down Press the CH. " " or " " button to select a higher or lower program number. • 0 - 9 Digital Button To select TV stations using program numbers 0 - 9, selecting program number will be shown in the right corner of the top of screen in green colour. -
Page 10: Operation With Remote Control
OPERATION WITH REMOTE CONTROL TELETEXT FUNCTION CONTROL Teletext - is an information system that displays text on your TV screen. Using the Teletext information system you can select a page of information on a subject that is available in its list of contents (index). - Page 11 OPERATION WITH REMOTE CONTROL TELETEXT FUNCTION CONTROL Stop Button ( More information may follow the page of Teletext you have selected, and it is automati cally displayed after a short period of time. • Press button " " to hold the page. •...
-
Page 12: Dvd Player Operation
DVD PLAYER OPERATION Basic Operation 1. Press “TV/AV/DVD” button on the unit or press the DVD MODE direct key on the remote handset to turn ON DVD. 2. Press “OPEN / CLOSE (EJECT)” button to load disc in disc tray. 3. - Page 13 SETUP MENU -- MAIN PAGE General Setup Page TV Display Angle Mark OSD Lang Captions Screen Saver Go To General Setup Page There are 6 OSD languages embedded in the DVD Player : English, French, German,Spanish, Danish and Swedish. 1. Press the SETUP button on the remote controller to enter the setup menu GENERAL SETUP PAGE.
- Page 14 Slow The Slow Forward is applicable for DVD. There are 4 steps of slow motion speed, 1/2, 1/4, 1/8, 1/16. Successive key presses will decrement the playback speed. Note : Press Play Key to switch back to normal playback speed. Repeat Mode This function is applicable for DVD and CD audio but with different effects.
-
Page 15: Display Off
Display (Remain Time) This function is applicable for DVD only. It will display the timing information of the playback on the screen. • For DVD playback, subsequent key press on the DISPLAY Button will show the Title Elapsed Time, Title Remain Time, Chapter Elapse Time and Chapter Remain Time one by one. - Page 16 Program Mode This function is applicable for DVD and CD audio. User can assign the playback sequence according to his/her preference. For CD audio, user can assign the track sequence while for DVD disc, user can assign both the Title and Chapter sequence. 1.
- Page 17 MP3 Operation This unit can support ISO9660 file system CD-ROM navigation. Multi-Media files such as MP3 thus can be played in the player. Operation • Insert the MP3 disc into the tray. Navigation Menu will be displayed. The menu will show up the files in the root directory, and the MP3 files then be play automatically.
-
Page 18: Specification
SPECIFICATION TV SECTION Receiving Channels CH 2 - 4 CH 5 - 12 CH 21- 69 Tuner Type 100 Channel ,VS TUNING DVD SECTION Laser Wave length 655nm Laser power : Class 1 Signal System PAL / output Digital audio output Coaxial digital output;... - Page 19 ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com P2130(TVD2102)IB English Aug.11.p65 2003/8/12, 下午 04:50...
